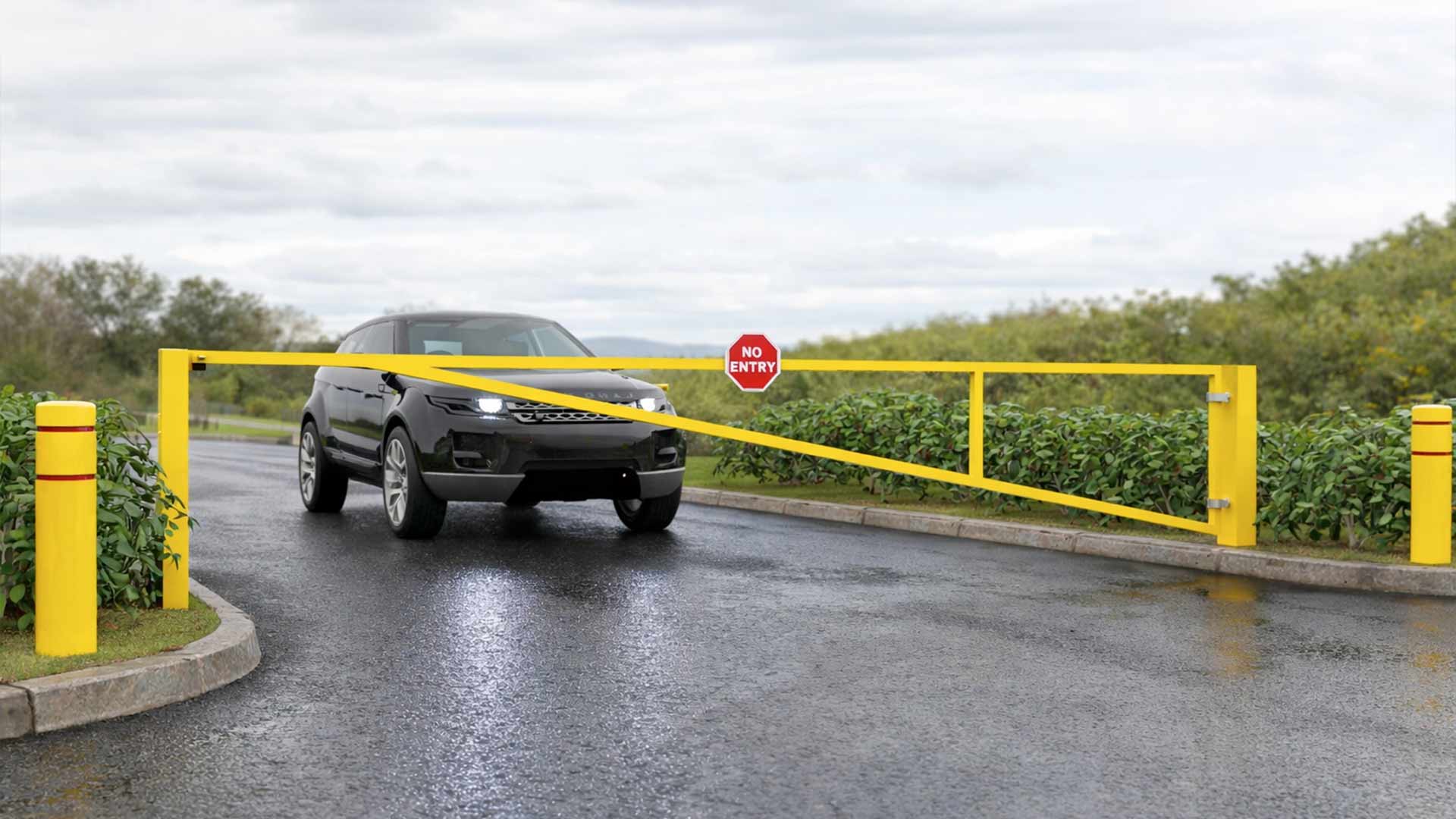

D1400 Swing arm barriers

D1400 Swing arm barriers are designed to provide simple, dependable vehicle access control, UMD manual swing arm barriers offer a cost-effective solution for managing entry and exit points across a wide range of commercial, industrial, and private sites.

Ideal for locations where powered automation is not required, manual barriers provide a practical method of restricting unauthorised vehicle access while maintaining quick and easy operation for approved users. Built for strength and long-term reliability, they are suited to car parks, service yards, private roads, depots, and low to medium traffic environments.

Manufactured for external use and day-to-day durability, UMD manual swing arm barriers combine robust construction with straightforward operation—delivering an effective access control solution with minimal maintenance requirements.

D1400 Swing arm barriers

Specifications

MAXIMUM SPAN

7.0M (single leaf), 12.0M (double leaf)

HEIGHT

1.2m

LOCKING

Padlockable with a low level locking facility

FINISH

Powder coated

D1400 Swing arm barriers Features

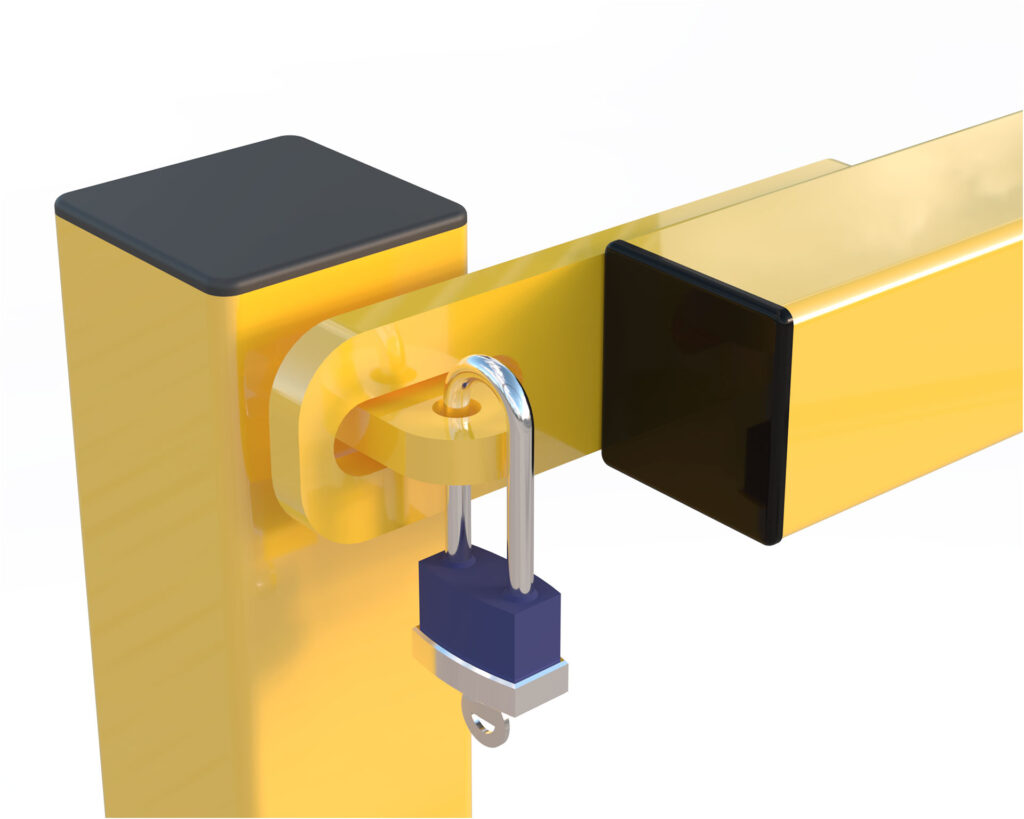

Locking

The D1400 includes a provision for a padlock, allowing customers the flexibility to choose their preferred padlock type. If required, we can also offer alternative locking solutions, such as Locinox Euro cylinder key locks.

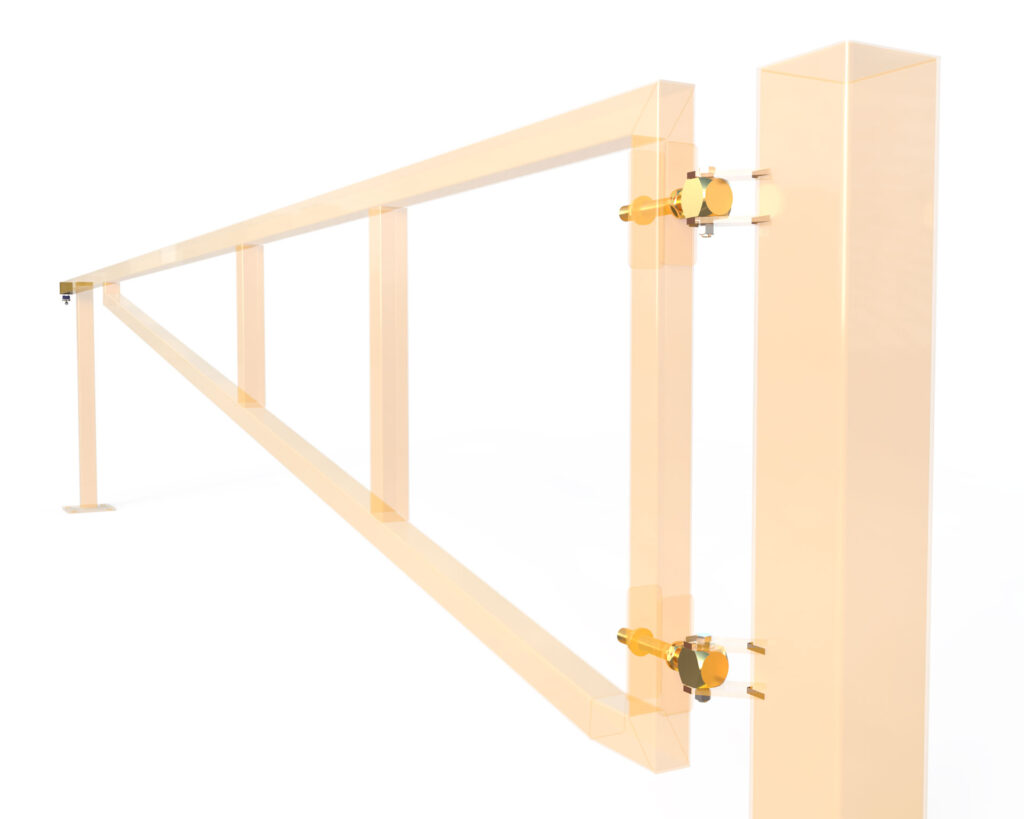

The D1400 gate assembly is fabricated using 50 x 50 mm SHS (Square Hollow Section) steel for the swing gate leaves. The support posts are typically manufactured from 150 x 150 mm SHS steel sections, although the final post size is determined by the gate span, loading requirements, and site-specific conditions.

A heavy-duty option is also available, featuring swing gate frames constructed from 80 x 80 mm steel and fitted with heavy-duty bearing hinges.

Construction

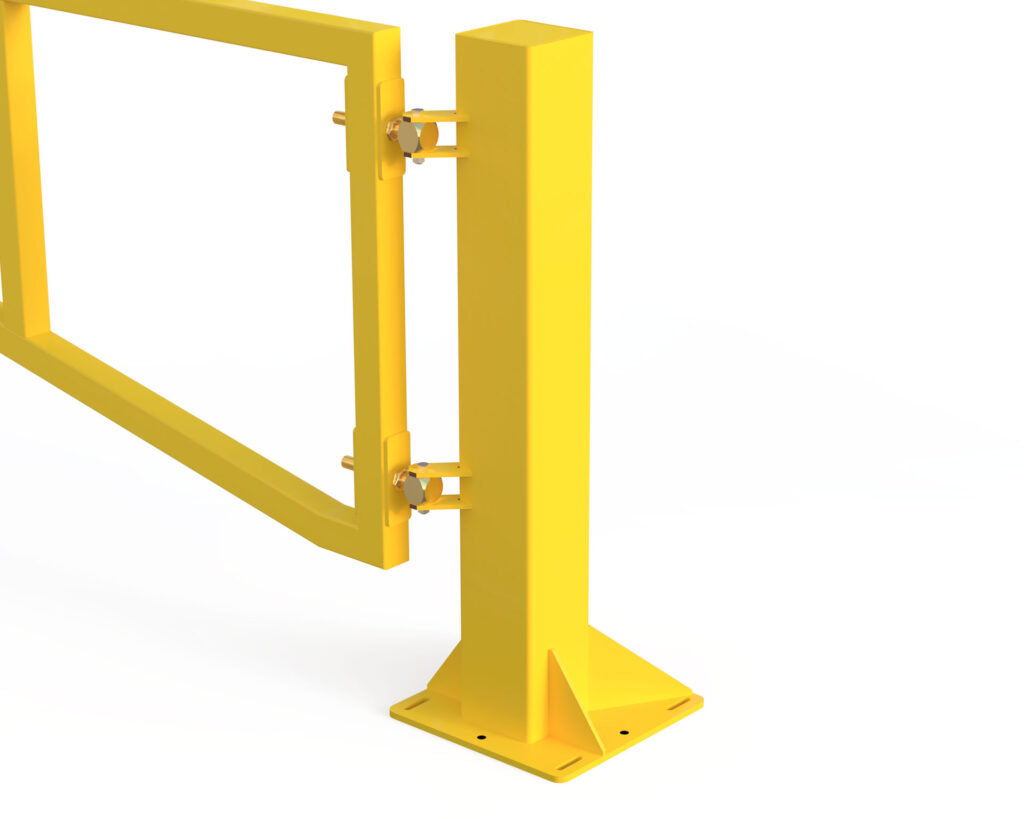

Post Options

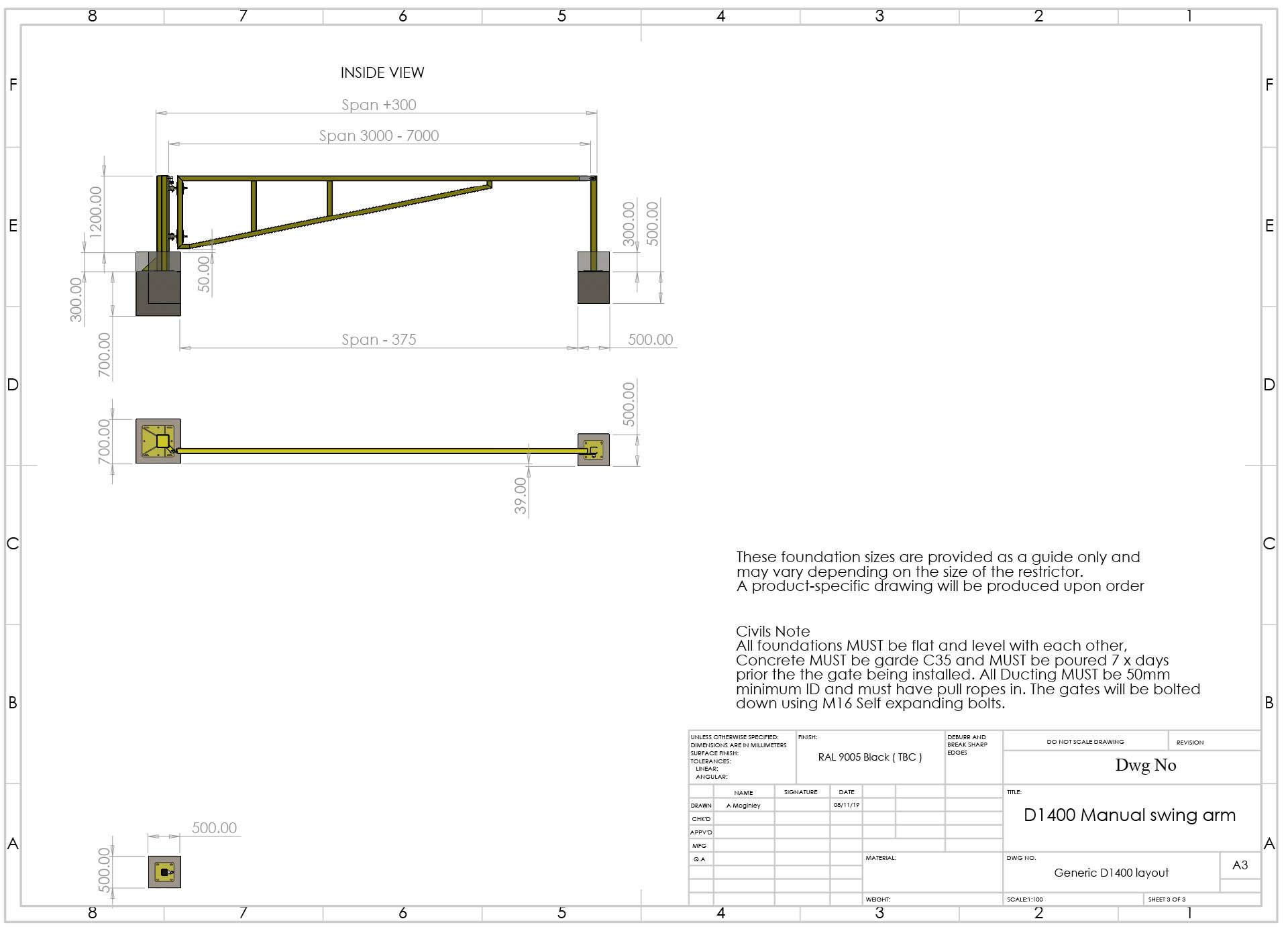

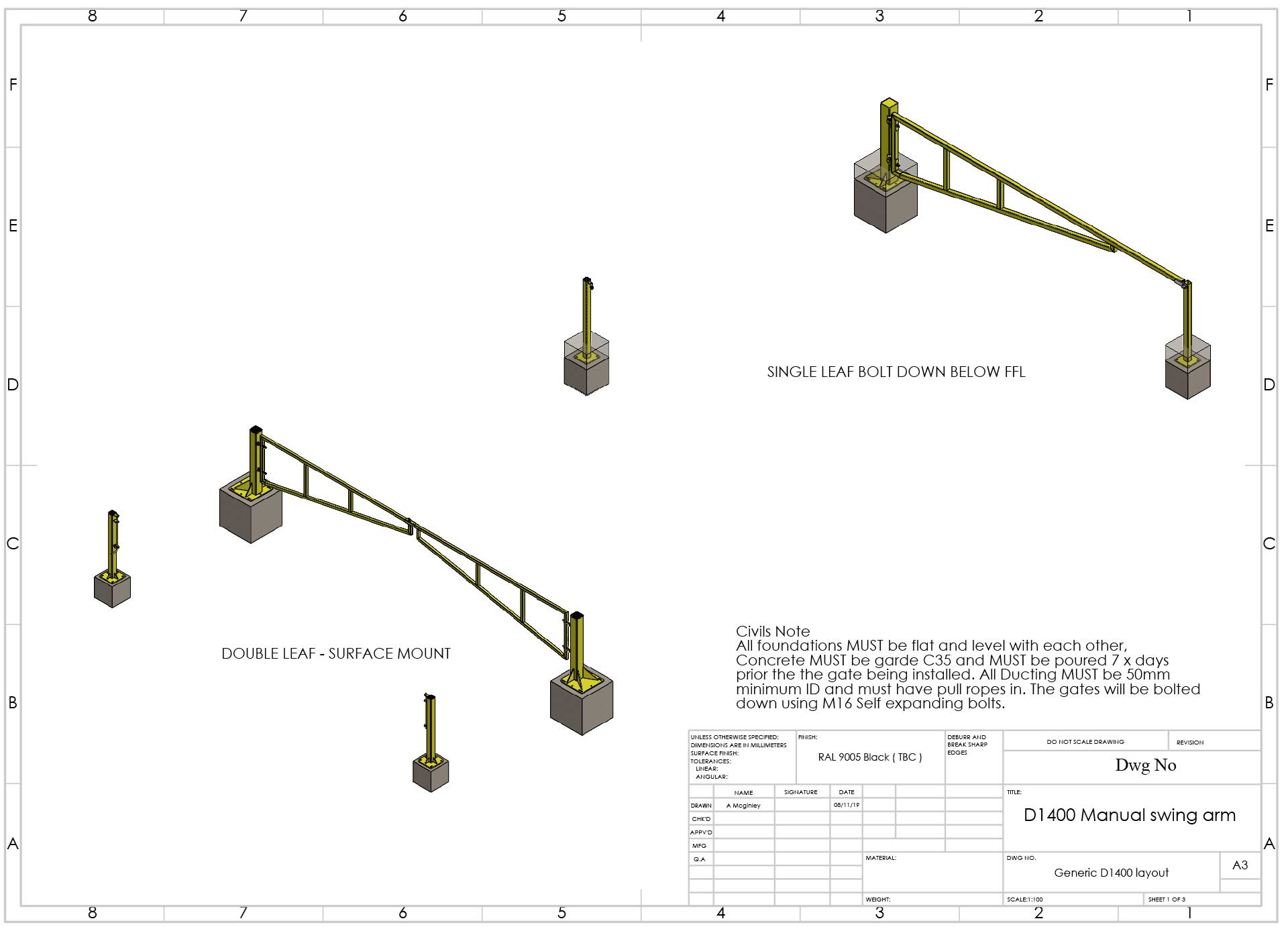

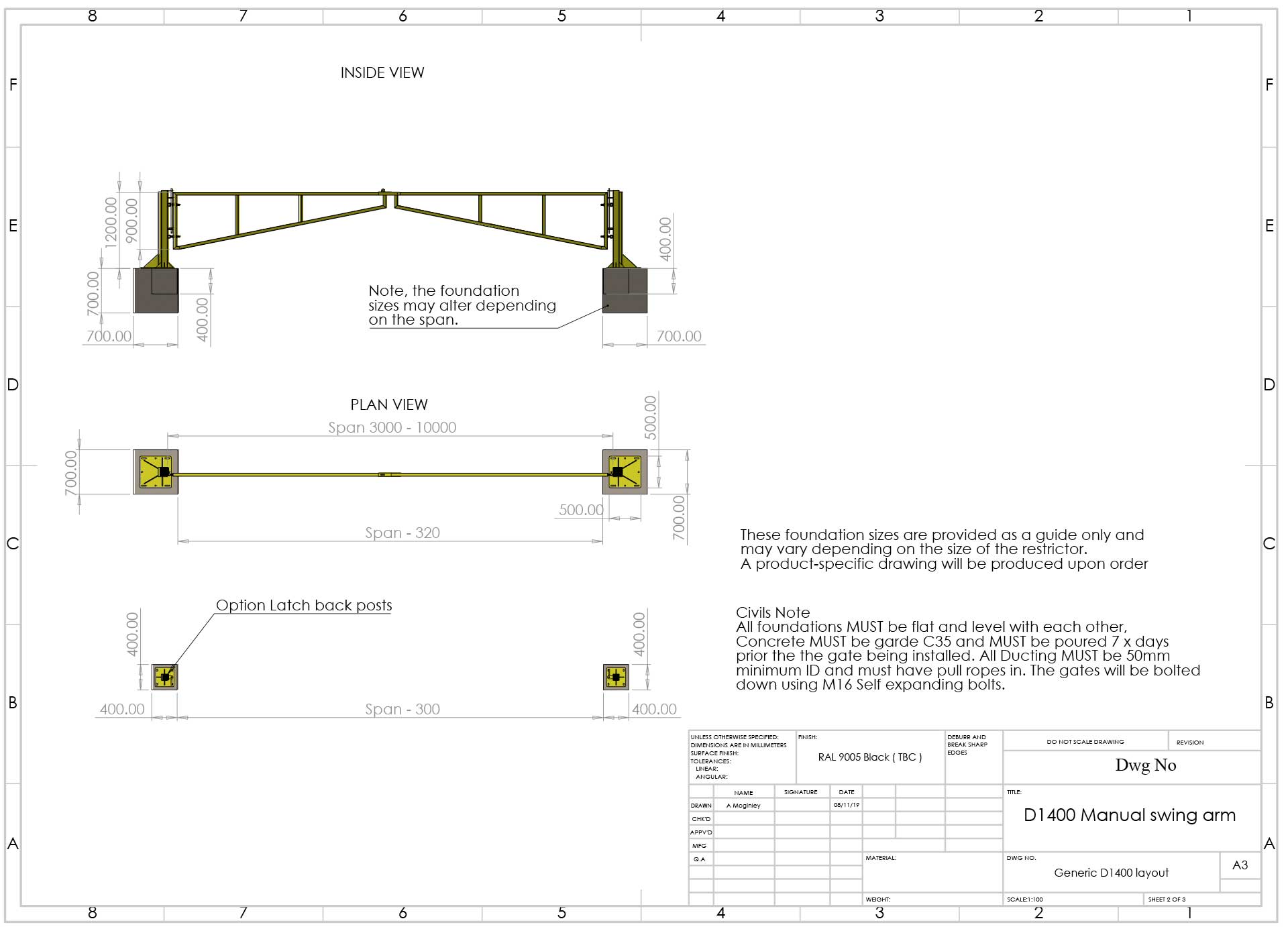

The D1400 system is available with a range of post installation configurations, including root-fixed (buried), surface-mounted (bolt-down at finished ground level), recessed bolt-down (below finished surface level), and offset base plate arrangements to accommodate site constraints and foundation requirements.

Configuration Options

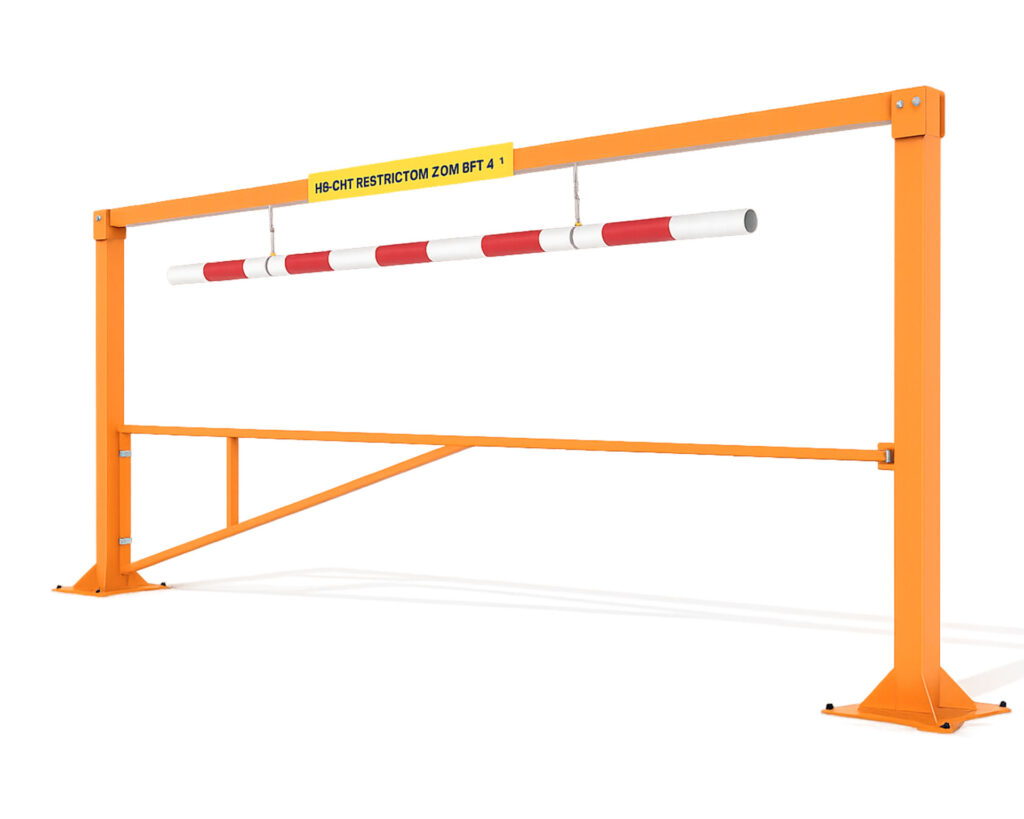

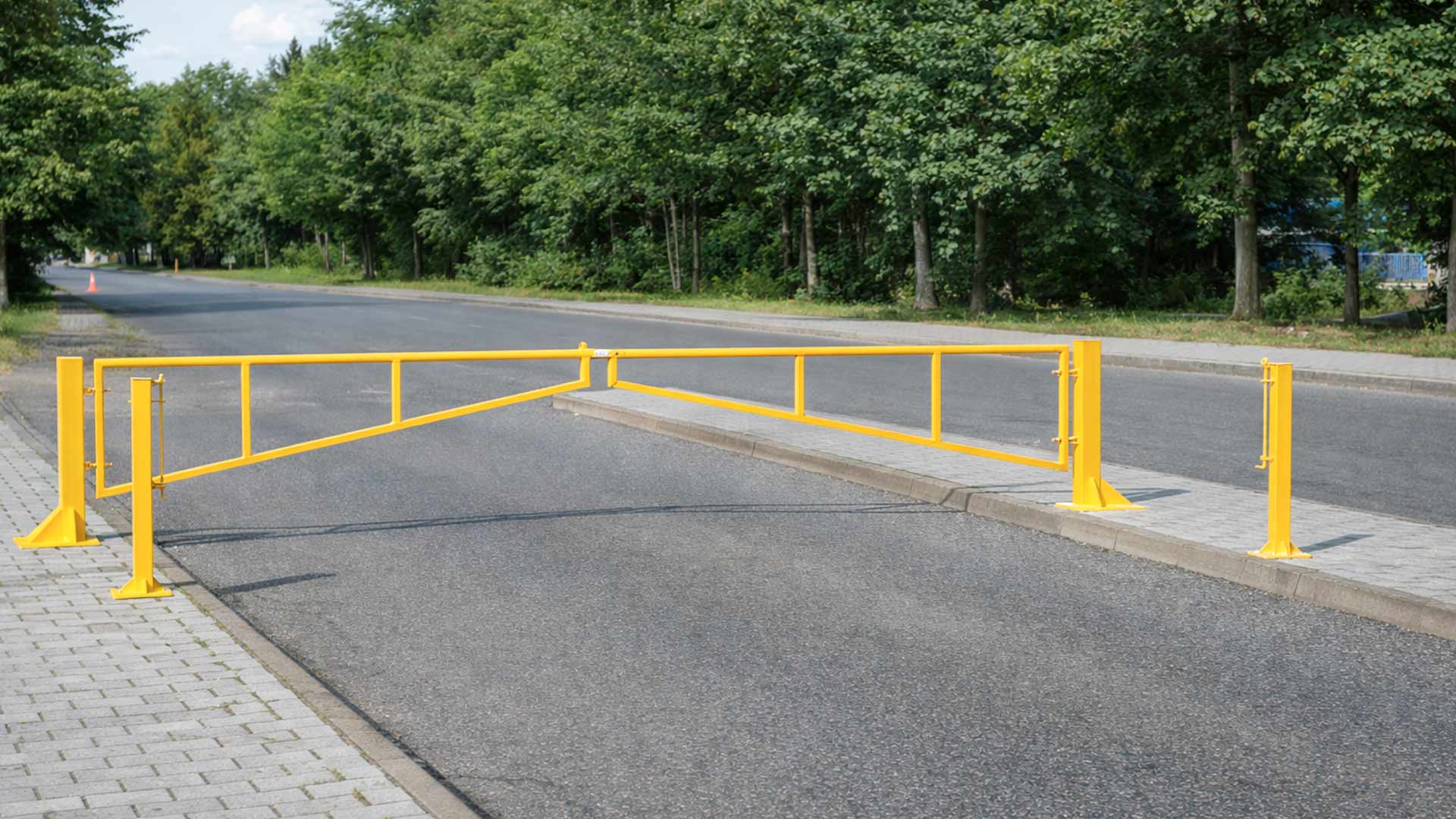

The D1400 can be configured as either a single-leaf or double-leaf gate and can also be integrated into our D2200 height restrictors.

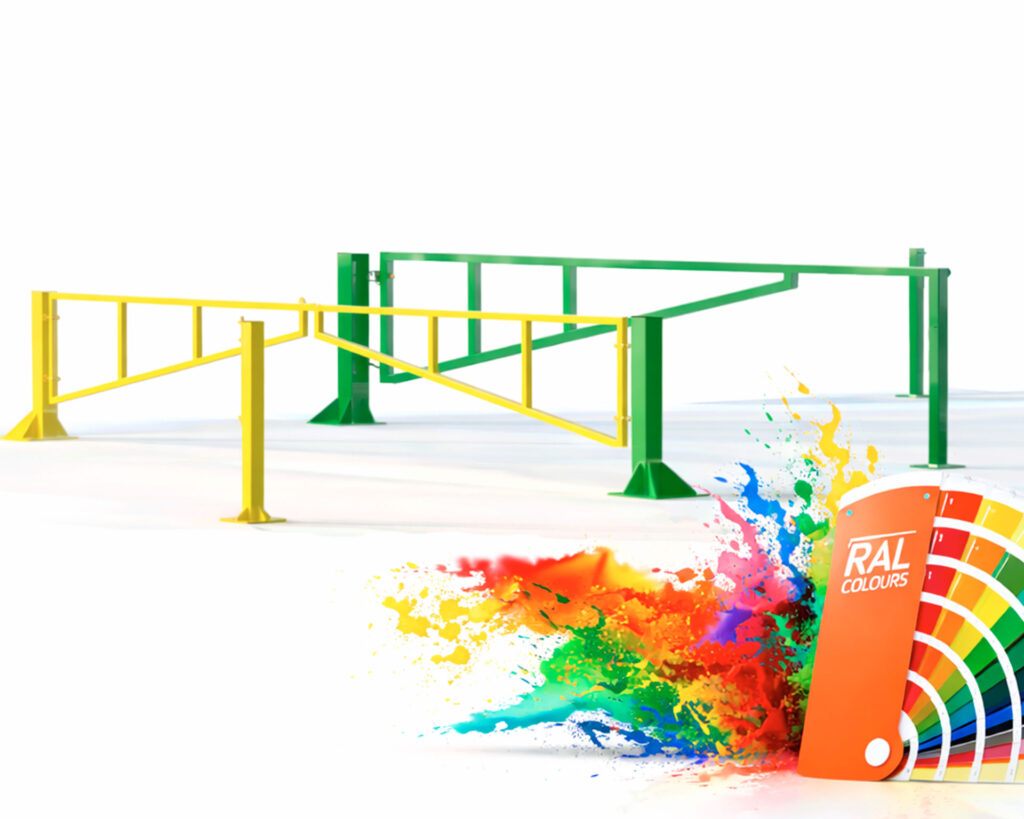

The D1400 is supplied as standard with a primed substrate and polyester powder coating system, achieving a C4 corrosion protection rating in accordance with ISO 12944. Where higher durability is required, optional finishes including hot-dip galvanizing and PVC plastisol coating are available to meet C5 environmental classification requirements.
