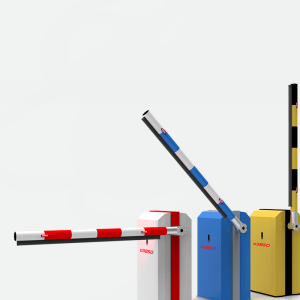

Barriers

The Use of Barriers with other security measures to protect….

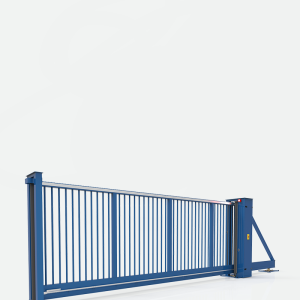

Gates

Ultimation produce a wide range of security swing gates….

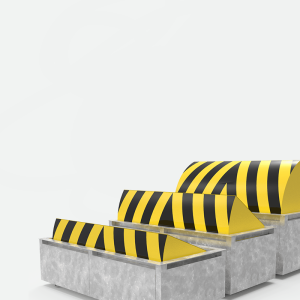

Traffic Control

A low cost solution for applications such as car parks and for height control….

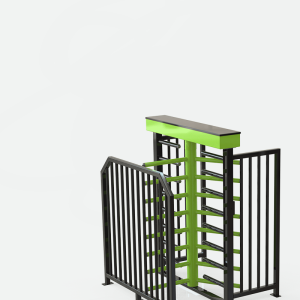

Turnstiles

Designed to provide effective pedestrian access control to high traffic locations….

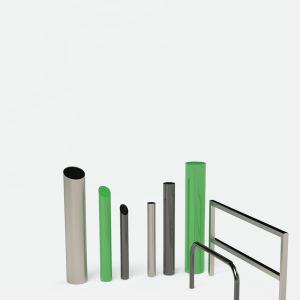

Ancillary

Ultimation offer a range of ancillary products to enhance your premises….

Spares

Ultimation carry a large range of spares to ensure hassle free ownership….

D3850 Heavy Duty Automatic Barrier

D3850 Heavy Duty Automatic Barrier

Our newly designed D3850 heavy duty barrier extends the capability of it’s smaller brother the D3250. With a fresh new look designed to reflect the contemporary appearance of the standard barrier, the D3580 can protect road widths of up to 9m.

The redesign utilizes an enhanced motor and gearbox assembly which has eliminated the need for counterweights. Obviously this also removes the trapping hazards associated with traditional counter weighted barriers, and reduces the space required for installation.

As with all our barriers, a complete safety system can be configured, with safety edges to the bottom of plain booms, photocell protection and induction loop vehicle detection.

Lower skirts, or hi-bar skirts cam be fitted and we offer a complete customization service with colour combinations and logos available to match your corporate look.

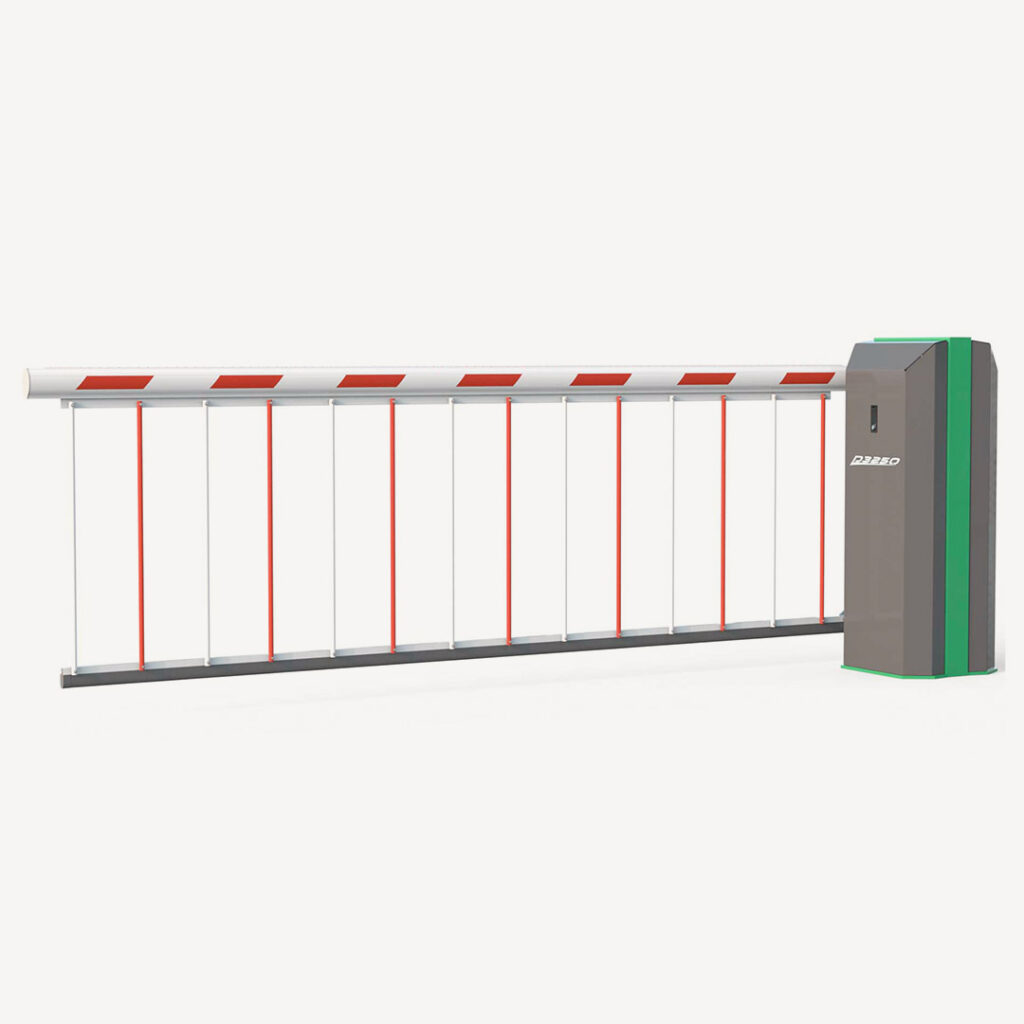

D3250 Automatic Barrier

D3250 Automatic Barrier

The D3250 automatic barrier has been the most popular barrier in our range since it’s introduction due to its smart appearance and ease of set up. The barrier is available to cover carriageways of up to 7m with a plain boom or 5m with a full hi-bar upper and lower skirt.

The D3250 can be fitted with lower skirts or hi-bar skirts to deter pedestrians from bypassing the barrier and LED boom lights combined with STOP signs add to the visibility of the barrier to drivers in all weather conditions.

Fully 100% rated, our D3250 barrier is suited to the most demanding applications with the highest level of traffic flow.

A complete safety system can be configured, with safety edges to the bottom of plain booms, photocell protection and induction loop vehicle detection combining to ensure that your barriers are fully compliant with the latest safety guidelines.

D1500 Manual Barrier

D1500 Manual Barrier

The D1500 manually operated barrier is an ideal choice to protect unattended or low traffic sites, with minimal investment.

D1500 barriers are available to suit road widths up to 6m with a standard 76mm diameter boom, and up to 9m with our heavy duty 100mm diameter boom.

As standard, the D1500 comes complete with preset counterweights, an adjustable tip support and expanding anchor bolts.

Installation is quick and simple – the barrier can easily be installed by one person, and is simply bolted down to a suitable concrete base.

Operation is just as simple, the counterweights allow effortless boom movement, and a latch is provided to lock the barrier in either the up or down position with a facility to allow you to fit a padlock.

D6600 Top Guided Duty Bi-Folding Gates

D6600 Top Guided Duty Bi-Folding Gates

Bi-folding speed-gates provide the perfect solution for security in confined locations, or where speed of opening is important.

The design incorporates two mechanically connected leaves per side, which swing open together thus providing a greater speed of operation that other automated gate systems.

The small swing arc needed by the dual gate leaf system allows these gates to be located in situations which would rule out the installation of conventional gates. They are engineered to allow bolt down fixing to suitable concrete pads, and are compatible with all current access control systems.

D6500 Bi-Folding Gates

D6500 Bi-Folding Gates

Bi-folding speed-gates provide the perfect solution for security in confined locations, or where speed of opening is important.

The design incorporates two mechanically connected leaves per side, which swing open together thus providing a greater speed of operation that other automated gate systems.

The small swing arc needed by the dual gate leaf system allows these gates to be located in situations which would rule out the installation of conventional gates. They are engineered to allow bolt down fixing to suitable concrete pads, and are compatible with all current access control systems.

D6000 Swing Gates

D6000 Swing Gates

ULTIMation  produce a wide range of security swing gates. Produced from fully welded mild steel, gates are available in either single or double leaf versions, and in any size up to 14m clear width and 3m in height.

Our swing gates can be manufactured with a variety of infill options, from standard vertical bar, solid steel or timber, and decorative steel designs. We are able to design a gate to your exact requirements or match an existing fence or gate type.

All our automatic gates are equipped with Category 3 safety edges and dual Photocells as standard to ensure compliance with all current safety legislation.

D6100 Swing Gates

D6100 Swing Gates

Our pedestrian gate is produced in a wide variety of formats, from simple padlockable gates to fully DDA compliant automated pedestrian access points. Typical applications include fire escapes with push to exit hardware, DDA compliant gates along with simple site security gates. A range of infill options exist, from vertical bar, weldmesh, timber cladding or decorative steel designs.

Automated pedestrian gates are fitted with hydraulic rams or underground drives, and are fitted as standard with fully compliant safety systems. Manual gates are usually supplied with slip latches for padlocking, or magnetic locks.

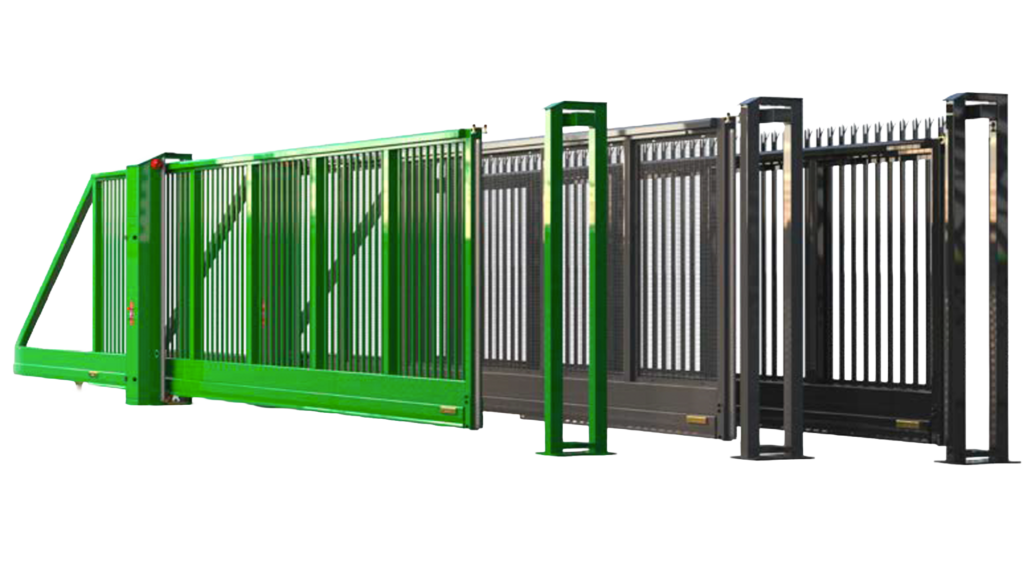

D5800 Heavy Duty Cantilever Sliding Gate

D5800 Heavy Duty Cantilever Sliding Gate

D5800 gates are a heavy duty version of our popular D5600 cantilevered automatic gates, and provide the optimum solutions for vehicle entrance control at high security locations or facilities which experience a high level of vehicle movements.

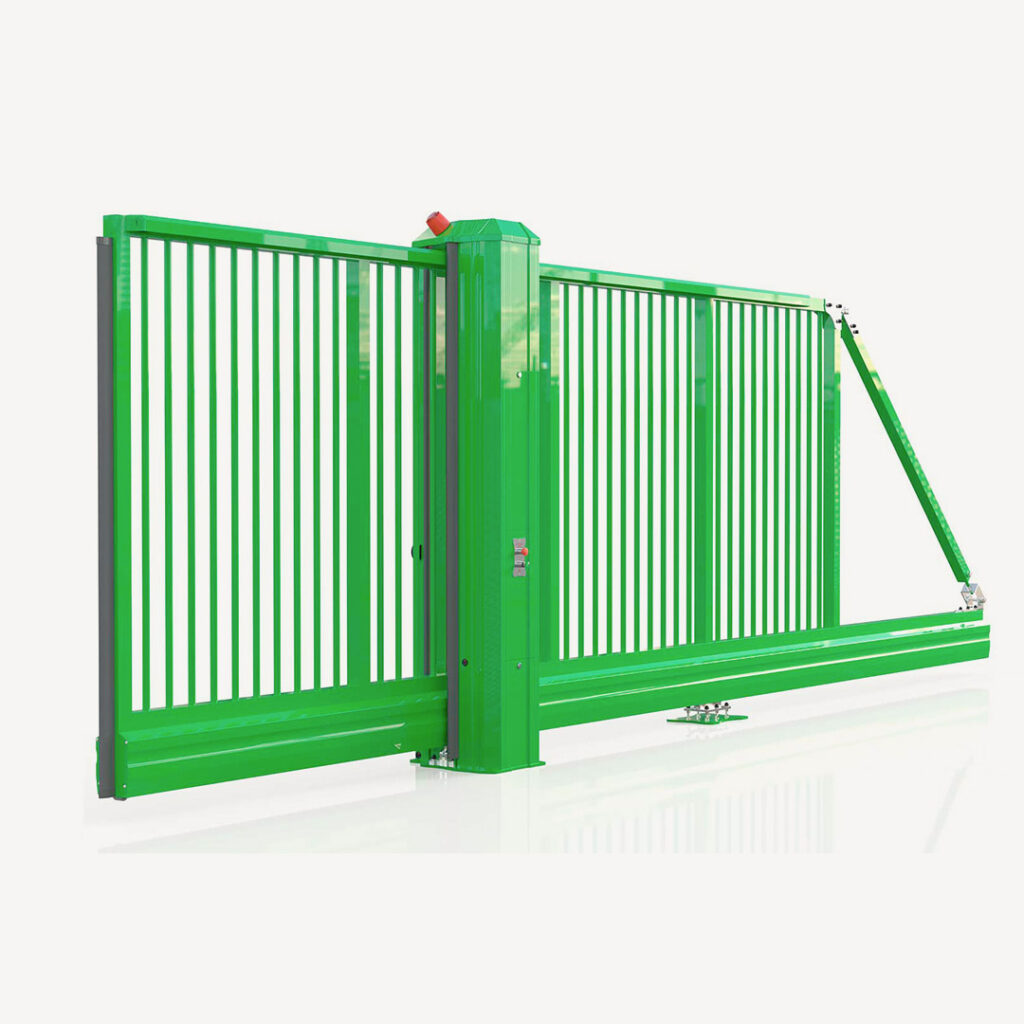

D5600 Cantilever Sliding Gate

D5600 Cantilever Sliding Gate

Our D5600 range of cantilever sliding gates are designed to provide robust and reliable security at bey vehicle entrances, They are manufactured from high strength steel, which provides a more robust product that aluminium and ensures a much longer service life. These gates are custom manufactured to the client’s individual requirements and are available in any size up to 6m clear width by 3.5m height.

D5000 Tracked Sliding Gate

D5000 Tracked Sliding Gate

Tracked sliding gates are typically used in locations where limited space in the gate backrun area precludes the use of cantilevered gates. The use of the track eliminates the need for the triangulated cantilever element of our non-tracked gates so saving in the region of 25 to 30% of the overall gate length.

D4350 3/4 Height Turnstile

D4350 3/4 Height Turnstile

Originally designed for an underground tunnel, the 3/4 height turnstile has become a popular option for applications where limited headroom precludes the use of traditional full height turnstiles, but where the client requires a more secure alternative to half height units. The reduced height allows turnstiles to be assembled in site access cabins, for example, and still allows the head mechanism to be accessed for maintenance purposes.

The fully welded steel construction is designed to provide an extremely robust product for extended use in high traffic applications.

The 3/4 height unit is available in the same colour combinations, logos and access control mounting solutions as our gull height units.

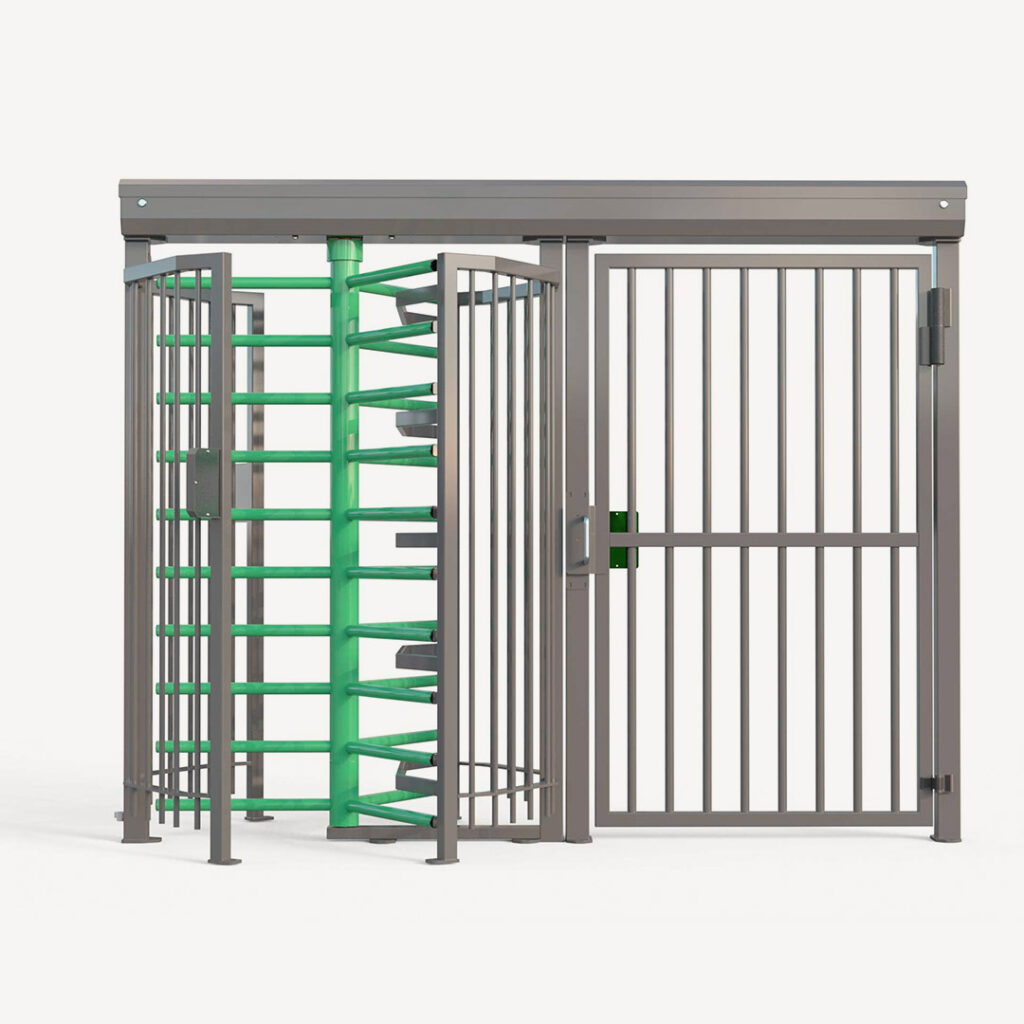

D4200 Full Height Turnstile (Enhanced)

D4200 Full Height Turnstile (Enhanced)

The D4200 is a well specified heavy duty turnstile at a competitive price. Designed for applications ranging from public access such as theme parks, and stadia, to construction sites and secure area access control.

The turnstile features a 120° three rotor design providing maximum space for pedestrians transit. An overhead canopy is fitted as standard for full weather protection for users. Generously sized access control reader mounting pads are also provided at no extra cost.

The D4200 has been designed to a higher specification than similarly priced turnstiles with a more rigid construction and large diameter rotors. The unit is powder coated for maximum rigidity, and is available in a wide range of standard colours.

For construction sites and temporary locations, we offer a steel base with fork lift pockets to allow turnstiles to be relocated as required.

D4150 Full Height Turnstile

D4150 Full Height Turnstile

Designed to provide effective pedestrian access control to high traffic locations such as construction sites and factory entrances, the D4150 turnstile is both attractive and economically priced.

These turnstiles have a solenoid operated mechanism mounted in the fully enclosed overhead structure, which allows the unit to be configured as bi-directional or single direction operation. The control system allows connection to any access control system or to a fire alarm to provide free rotation in the event of an alarm. The turnstile features a 120° three rotor design providing maximum space for pedestrian transit. Access control reader mounting plates are also provided at no extra cost to both sides of the turnstile. The unit is powder coated for maximum longevity, and is available in a wide range of standard colours. For construction sites and temporary colours, we offer a steel base with fork lift pockets to allow turnstiles to be relocated.

Traffic Control

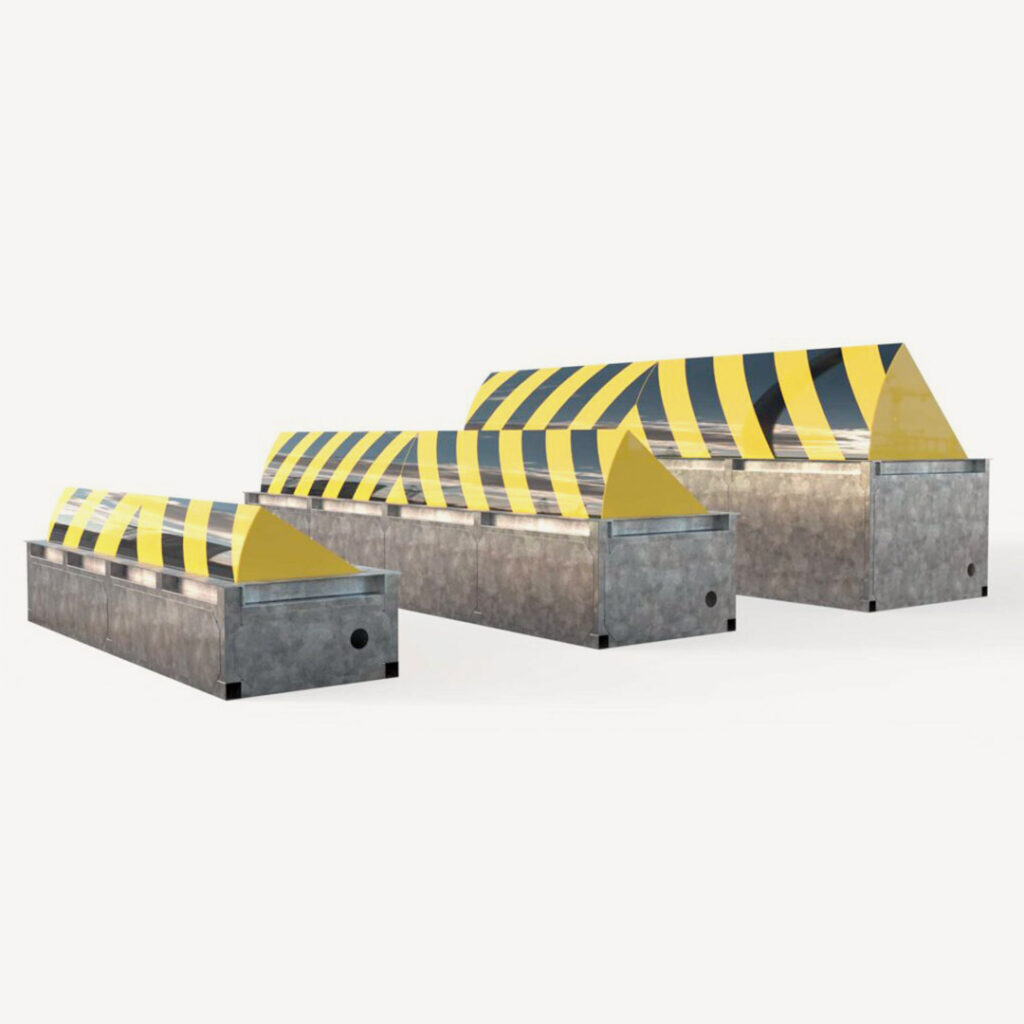

D8400 Hydraulic Road Blocker

D8400 Hydraulic Road Blocker

Our hydraulic automatic road blocker is designed for high security vehicle access control. They present the most effective way of preventing unauthorized vehicles from accessing secure sites, and protecting valuable assets within a facility.

Available in a range of widths to suit any road width and in three standard heights: 340mm for the protection of car parks, and locations limited to cars and light vehicles 500mm for heavy duty applications and protection against goods vehicles; and 800mm to deny access to any road vehicle, and provide maximum visibility to approaching vehicles.

These products manufactured from heavy gauge mild steel, which is fully welded and fitted with treadplate top surfaces. The side of the blockers are “tanked” with sheet steel. This allows the complete units to be lowered into excavated foundations which can then be backfilled with concrete, thus reducing on site time and installation costs.

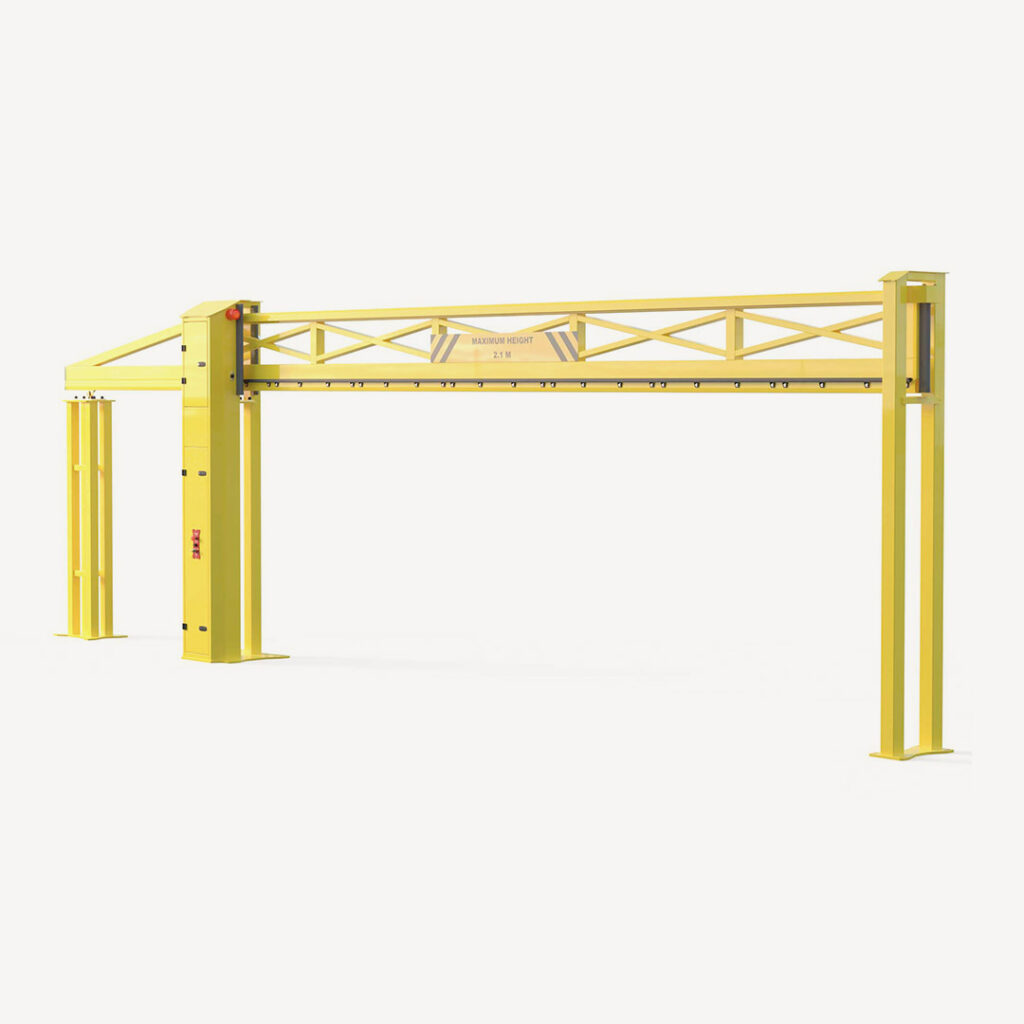

D2300 Automatic Height Restrictors

D2300 Automatic Height Restrictors

An ULTIMation innovation, the D2300 height restrictor combines the benefits of a standard height restrictor with an automatic gate. It was originally designed to provide a solution to a specific client problem, which required free access to cars whilst only allowing higher vehicles to pass when a remote control button is pressed.

Similar in construction to our successful range of automatic cantilever sliding gates, these height restrictors are fitted with fully compliant safety systems, and are almost silent in operation.

The fully welded steel construction and heavy duty catch post ensures the highest level of security, and the D2300 is compatible with any access control system. Gate drive is by three phase motor which operates from a single phase supply via an inverter. This is controlled from a fully programmable PLC system, to fully controllable operation with slow down features and programmable timing should the client wish to hold the unit open for a set time.

D2200 Height Restrictors

D2200 Height Restrictors

D2200 height restrictors offer a low cost solution for applications such as car parks and for height control prior to low headroom road crossings.

They are available in fixed and manually operated swing versions, and can be supplied with appropriate maximum headroom signage. Swing versions are offered in single or double leaf formats, and they can be locked in both the closed and open positions.

D2200 height restrictors are constructed from high quality BS EN 10025 S355 and S275 mild steel, and may be finished in a choice of colours, yellow being the most popular.

Available in heights of up to 2.1 metres and a maximum width of 13 metres, height restrictors are simple to install and provide a quick, economical means of protecting vulnerable unmanned or remote sites.

Gate Drives

D650 Sliding Gate Drive

D650 Sliding Gate Drive

The D650 is a self contained drive system suitable for the automation of tracked and cantilevered sliding gates. Supplied in a steel enclosure, the unit is powered by a 3 phase motor, driven by a 240V single phase supply via an inverter for smooth reliable operation. A plc control system is supplied which enables full programming of movement and safety parameters and allows connection to any access control system.

D380 Heavy Duty Swing Gate Drive

D380 Heavy Duty Swing Gate Drive

A surface mounted drive unit the D380 is our most powerful drive system. Designed to operate gate leaves up to 8m and 1600kg. Supplied in a steel bolt down enclosure with pre-fitted drive arms, the unit is powered by a 3 phase motor, driven by a 240V single phase supply via an inverter for smooth reliable operation. a plc control system is supplied which enables full programming of movement and safety parameters and allows connection to any access control system.

D350 Underground Swing Gate Drive

D350 Underground Swing Gate Drive

The D350 is a high performance underground gate drive which is suitable for the automation of swing gates up to 6m leaf width and with an overall weight of 800kg. The drive features a locking mechanism, and is available as a single leaf or double leaf kit. The unit is powered by a 3 phase motor, driven by a 240V single phase supply via an inverter for smooth reliable operation. A plc control system is supplied which enables full programming of movement and safety parameters and allows connection to any access control system.

Ancillary Products

Traffic Lights

Traffic Lights

For use with our range of automated access products, these efficient LED traffic lights can also be used in other traffic control applications such as loading bays, weighbridges and ports. The resilient polycarbonate housing is self-coloured in black and is UV and fade resistant, ensuring the product remains maintenance free.

Slot-in polycarbonate hoods prevent interference to visibility from other light sources or adverse weather conditions. Lenses and door screws are both vandal resistant.

Flexible fixing arrangements make installation simple, with a choice of spigot pole top fittings or swivel brackets to fit any surface.

100mm round spider web lenses provide optimum light diffusion, and LED lighting elements ensure maximum durability and minimum operating costs.

Bollards

Bollards

We produce fixed steel bollards to protect access control points and other vulnerable items.

Bollards can be manufactured in either base plated or dig in designs and for added protection, they can be supplied with loose tops to allow the bollard to be filled with concrete.

They are produced from 3mm or 5mm thick steel and available in round or box section. All bollards are powder coated in any standard RAL Colour choice.

For more prestigious locations, brushed stainless steel versions are available in either 304 or marine grade 316 types.

D500 CCTV Towers

D500 CCTV Towers

The ULTIMation CCTV tower is a rugged and stable platform for any CCTV system. Available up to 6m in height, and in fixed or foldable versions. Foldable towers may be fitted with an optional winch for ease of access for camera maintenance.

The design of these towers is based on an inherently rigid steel section with a minimum cross section. This minimizes the effect of wind on the tower and results in the most stable platform for high resolution cameras. Towers are manufactured from fully welded mild steel with a galvanized finish as standard. If required, a painted finish can be applied in any standard RAL Colours.

Swan neck mountings are offered and alternate mounting brackets can be designed and manufactured for alternate camera types. Deployment on site is quick and simple, the towers are simply bolted to a suitable concrete base, and folded into the upright position. Cabling for the cameras is fed internally through the column and is accessible via a low level access panel.

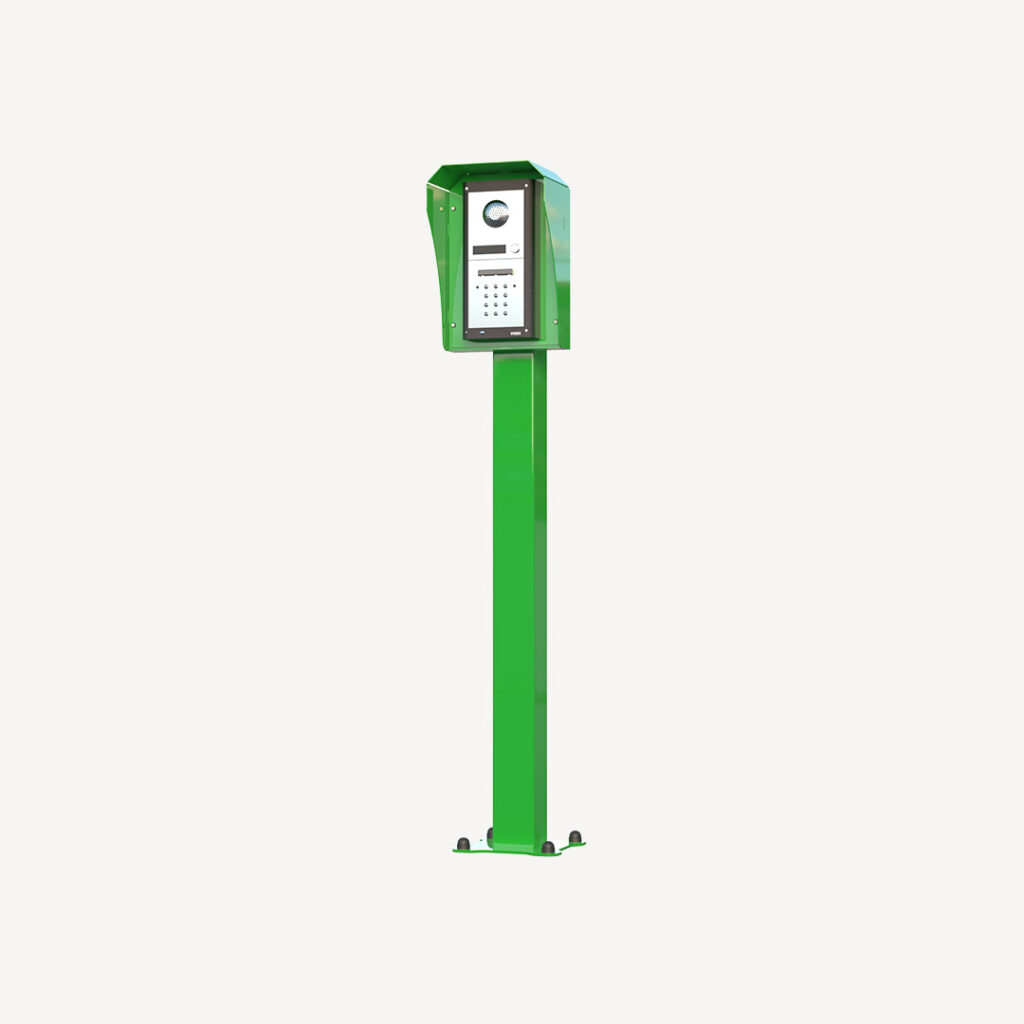

D210 Access Control Reader Posts

D210 Access Control Reader Posts

ULTIMation offer a wide range of access control mounting posts from standard car and HGV height posts, to custom designed and stainless steel posts.

Our standard D210 post is manufactured from mild steel with a powder coated finish. It has a removable mounting plate of 290mm x 190mm with a head depth of 175mm. The standard height is 1255mm with a dual height or HGV only version of 2500mm overall height.

Posts can be manufactured to suit any size of access control equipment and we are also able to offer a coin acceptor version with lockable hinged panel for access to your coin tray. For sites which require the highest levels of aesthetic appeal we produce stylish brushed stainless steel posts which incorporate traffic lights or access controls into a recessed plate.
