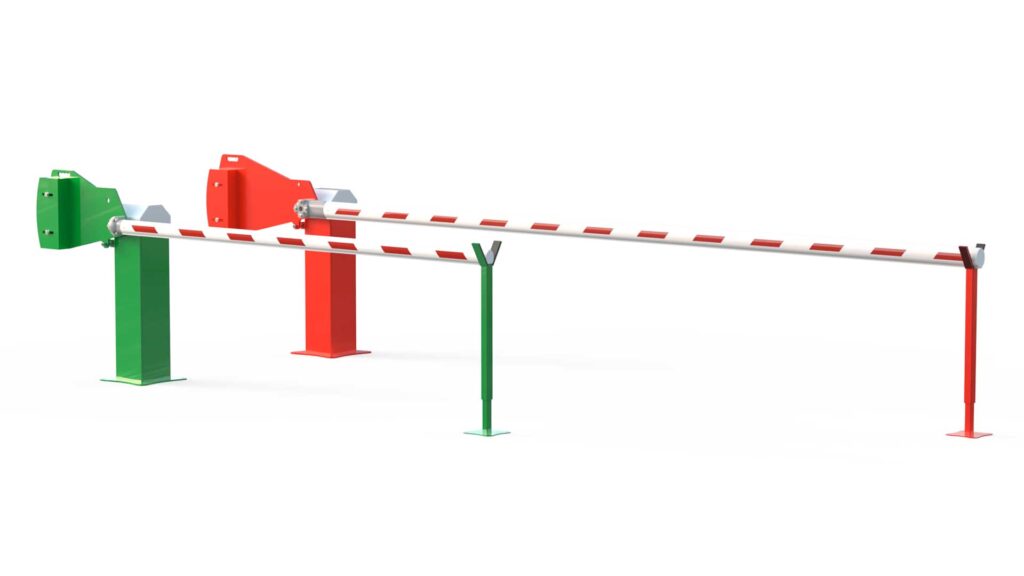

D1500 Manual Barrier
D1500 Manual Barrier are available to suit road widths up to 6m with a standard 76mm diameter boom, and up to 9m with our heavy duty 100mm diameter boom.
As standard, the D1500 comes complete with preset counterweights, an adjustable tip support and expanding anchor bolts.
Installation is quick and simple – the barrier can easily be installed by one person, and is simply bolted down to a suitable concrete base.
Operation is just as simple, the counterweights allow effortless boom movement, and a latch is provided to lock the barrier in either the up or down position with a facility to allow you to fit a padlock.
D1500 Manual Barrier
MAXIMUM SPAN
Standard Version: 7.0M, Heavy Duty Version: 9.0m
Standard Version: 76mm, Heavy Duty Version: 100mm
HEIGHT
1m from base plate to centre of boom. Total barrier height: 1150mm
Stanchion: 250mm square box section, 400 x 400mm Base Plate
FINISH
Polyester Powder Coated in red and white as standard
D1500 Manual Barrier Features
The D1500 barrier is constructed from a robust 250 x 250 mm box section, providing exceptional strength and durability for long-term use in demanding environments.
Key design features include:

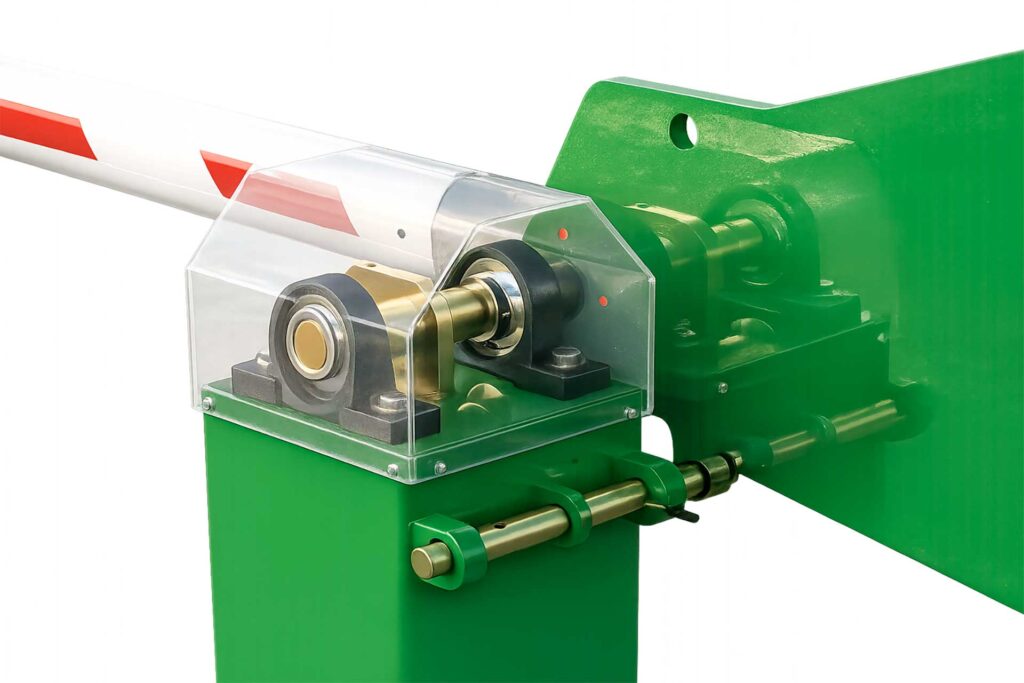

- Protected Bearing System
The internal bearings are housed beneath the barrier lid, shielding them from weather exposure and ensuring smooth, reliable operation with minimal maintenance. - Rear-Mounted Locking System
The locking mechanism is discreetly positioned at the rear of the barrier, enhancing both security and overall appearance by keeping the front face clean and uncluttered. - Premium Aesthetic
With its clean lines, concealed components, and high-quality finish, the D1500 is designed to be one of the best-looking manual barriers on the market, making it especially suitable for customer-facing environments such as car dealerships and commercial premises.
Barrier Design
Pole Design
The D1500 barrier pole is manufactured from high-quality aluminium, offering a lightweight yet durable solution suitable for frequent use and long-term outdoor performance.
Both standard and heavy-duty poles feature a sleek oval profile, delivering improved strength while maintaining a modern, streamlined appearance.

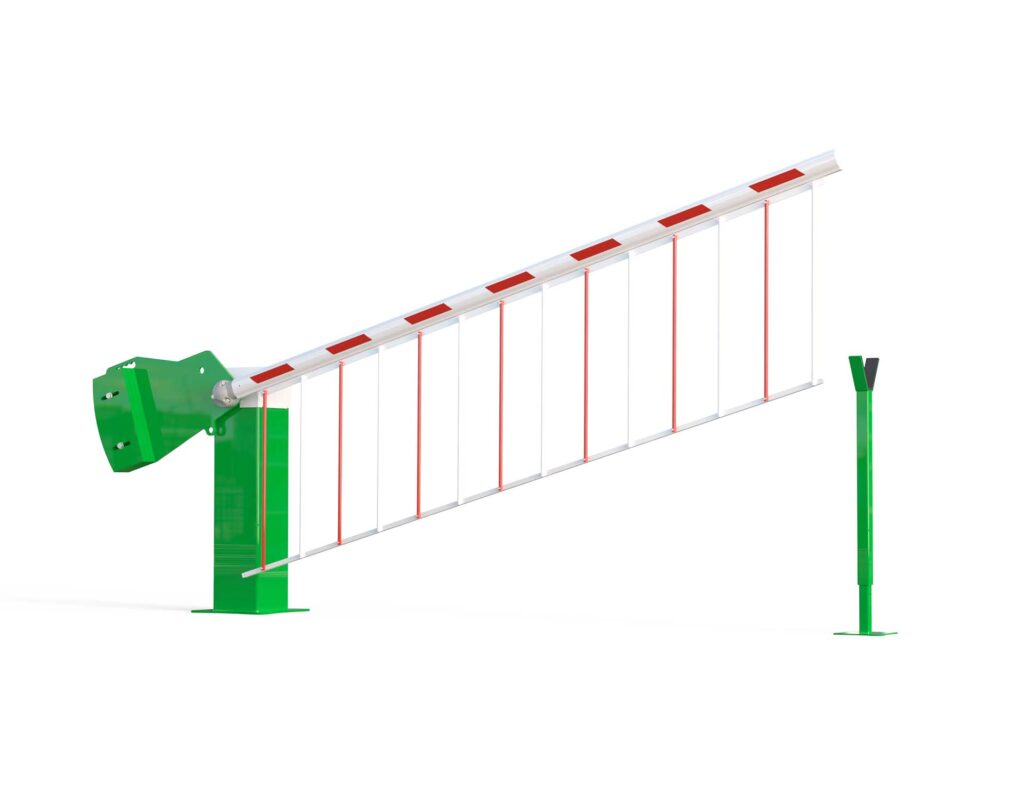

The design also incorporates an integrated bottom skirt profile within the aluminium extrusion, providing:
- A clean, premium finish
- Enhanced rigidity and stability
- Reduced need for additional fixings or add-ons
The result is a barrier that not only performs reliably but also looks professional and well-suited to environments such as car dealerships, commercial premises, and industrial sites.

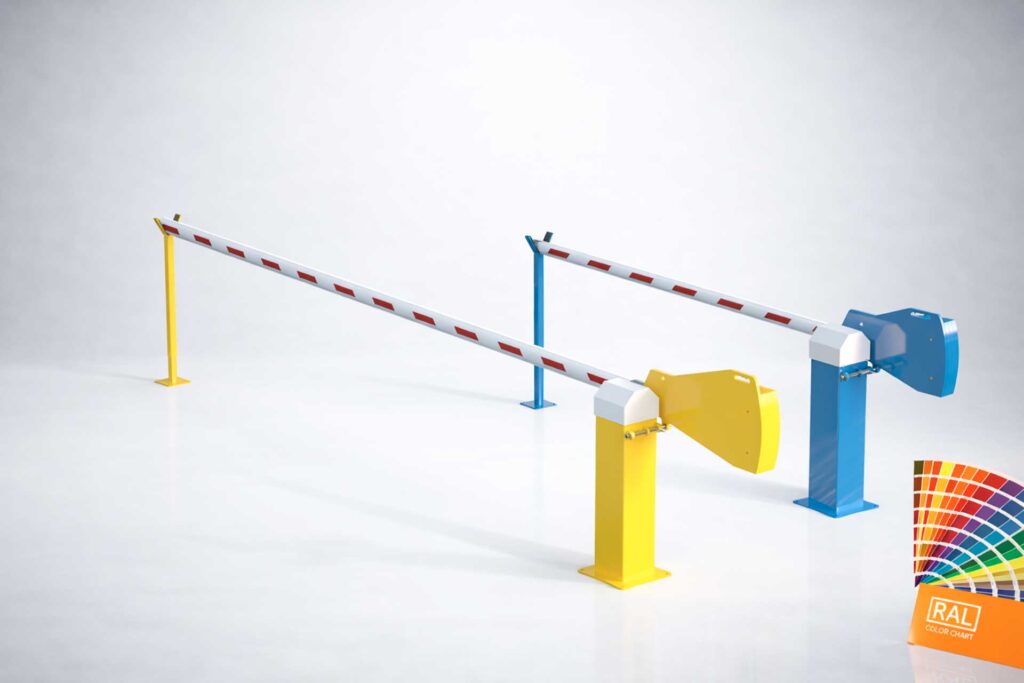

Barrier Finish
The D1500 is supplied as standard with a primed and polyester powder-coated finish to C4 specification, providing a high level of corrosion protection suitable for industrial and coastal environments.
For installations requiring enhanced protection, additional finishing options are available:
- Galvanised Finish
Offers superior corrosion resistance, ideal for harsh or exposed environments. - Plasticoated Finish
Provides an extra protective layer with an attractive, long-lasting finish, suitable for high-visibility or demanding locations.
These finishing options ensure the D1500 can be tailored to perform reliably in a wide range of conditions, from standard commercial use to more challenging environments.

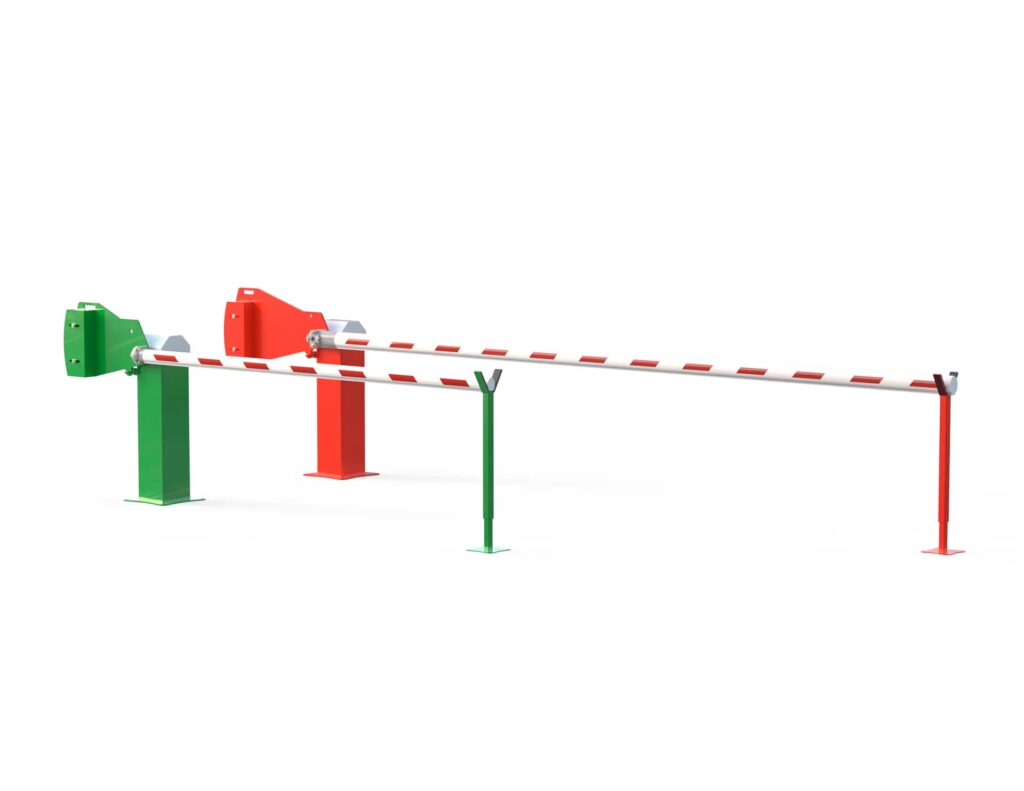

Pole Options
The D1500 manual barrier is available in both standard and heavy-duty configurations to suit a wide range of entrance widths.
- Standard Pole
- Maximum pole length: 7000 mm
- With bottom skirt: up to 6000 mm
- Heavy-Duty Pole
- Maximum pole length: 9000 mm
- With bottom skirt: up to 8000 mm
This flexibility allows the D1500 to accommodate both typical vehicle entrances and wider access points requiring additional strength and stability.

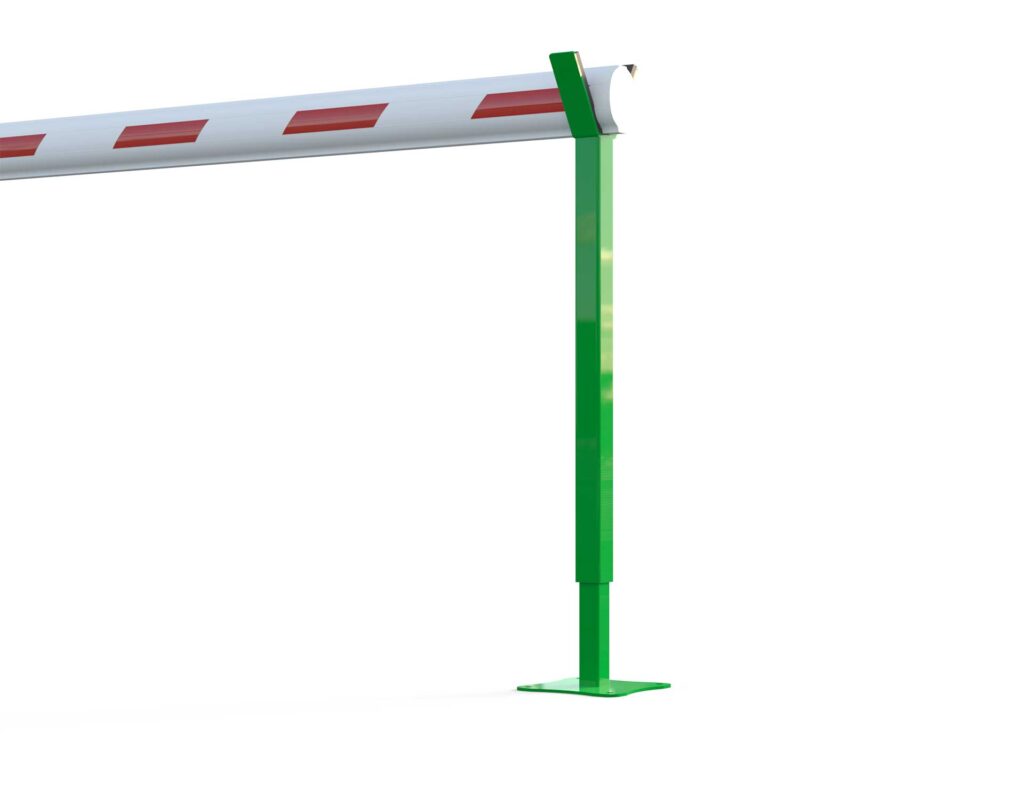

Tip Supports
The D1500 is supplied as standard with an adjustable tip support, ensuring stability across varying ground levels and installation conditions.
Optional upgrades are available to suit different site requirements:
- Lockable Tip Support
Provides additional security by locking the barrier in the end pole position. ( Locks at the Barrier end as std ) - Pogo Tip Support
Ideal where the barrier pole rests directly onto the road surface, offering a spring-loaded solution for smooth operation and reduced wear.
These options allow the D1500 to be configured for both standard installations and more demanding environments such as high-traffic entrances or uneven ground conditions.
Technical INFORMATION

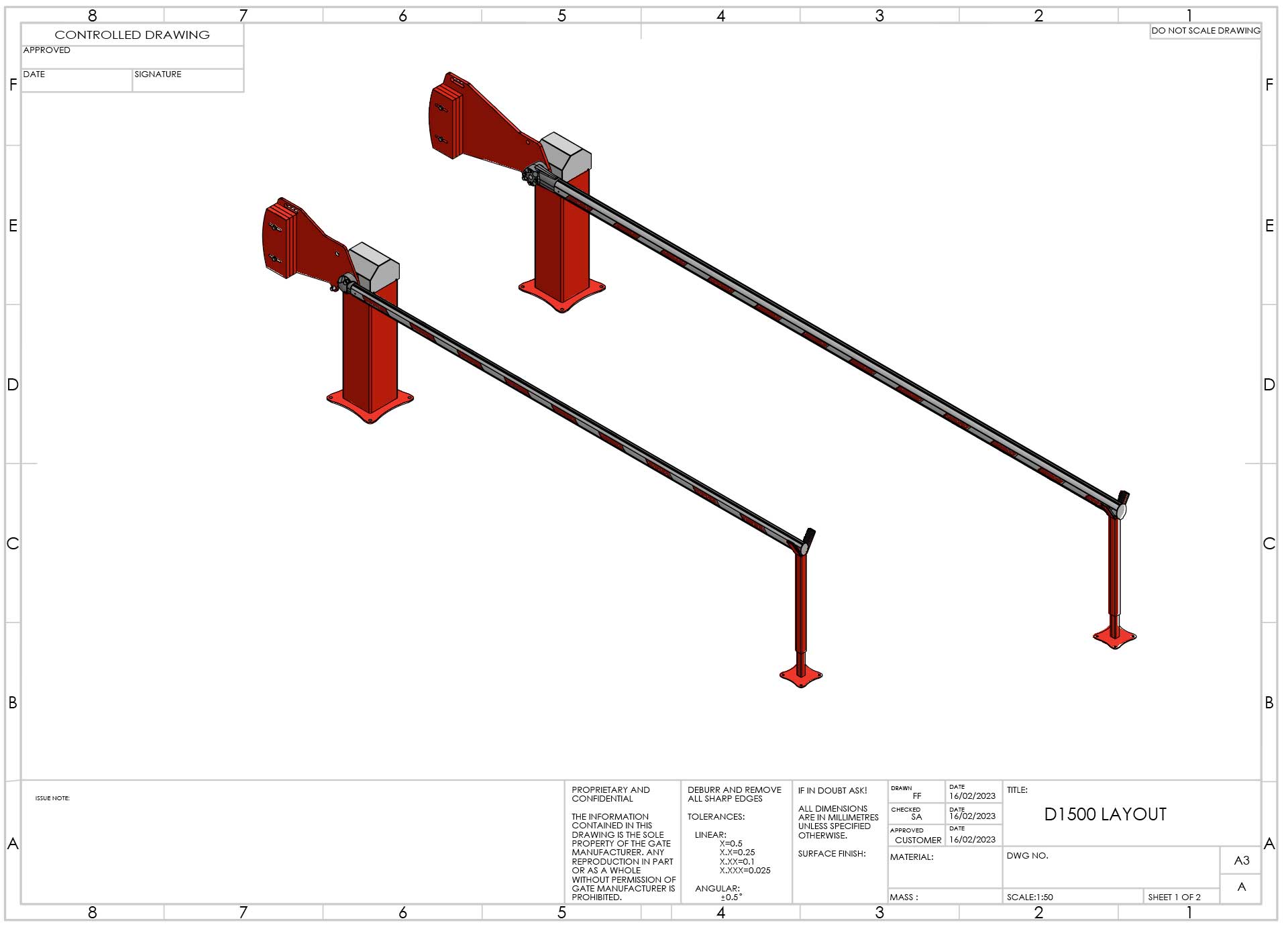

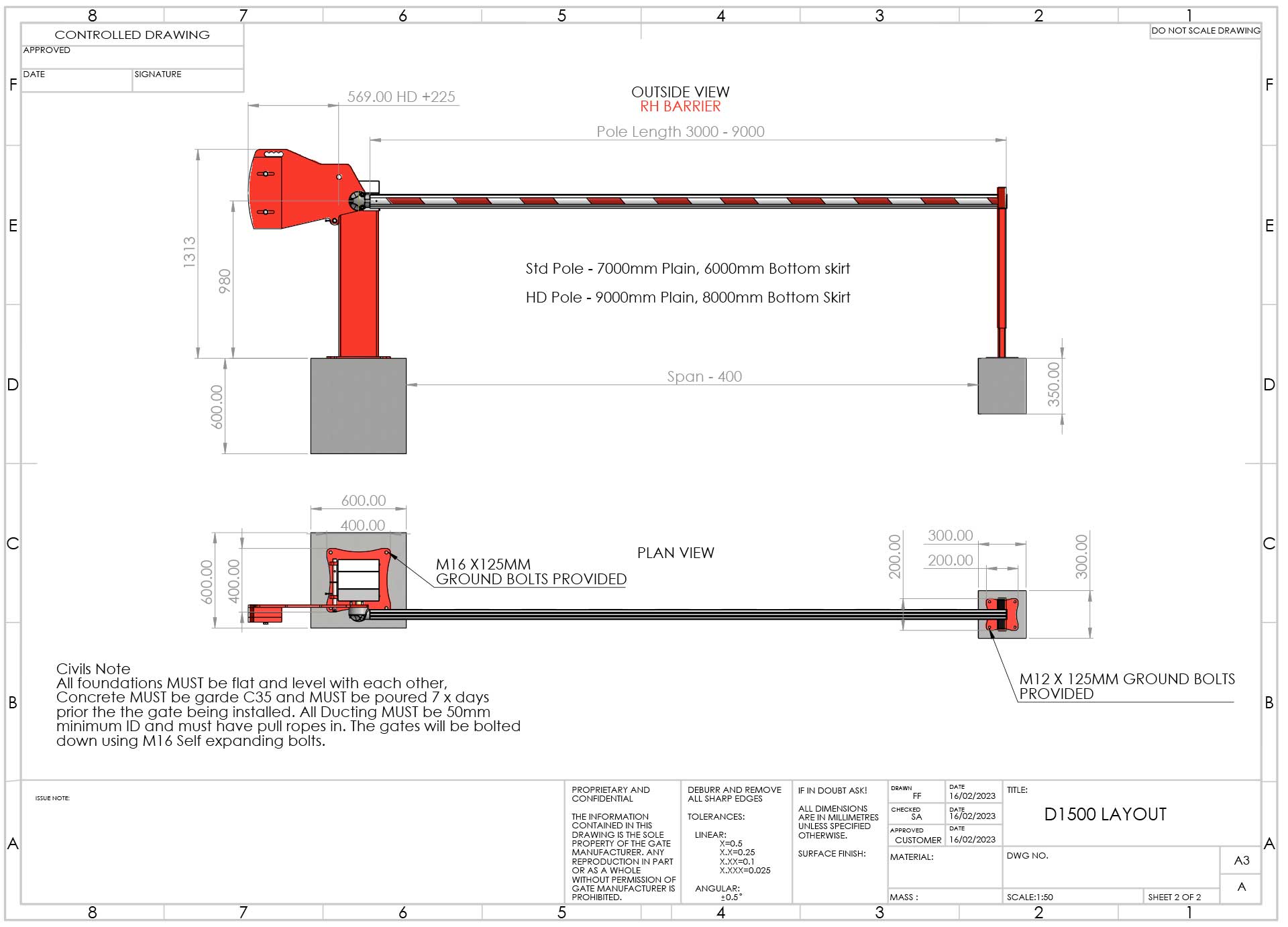

Technical Drawing:
D1500 LAYOUT Ver 1.1

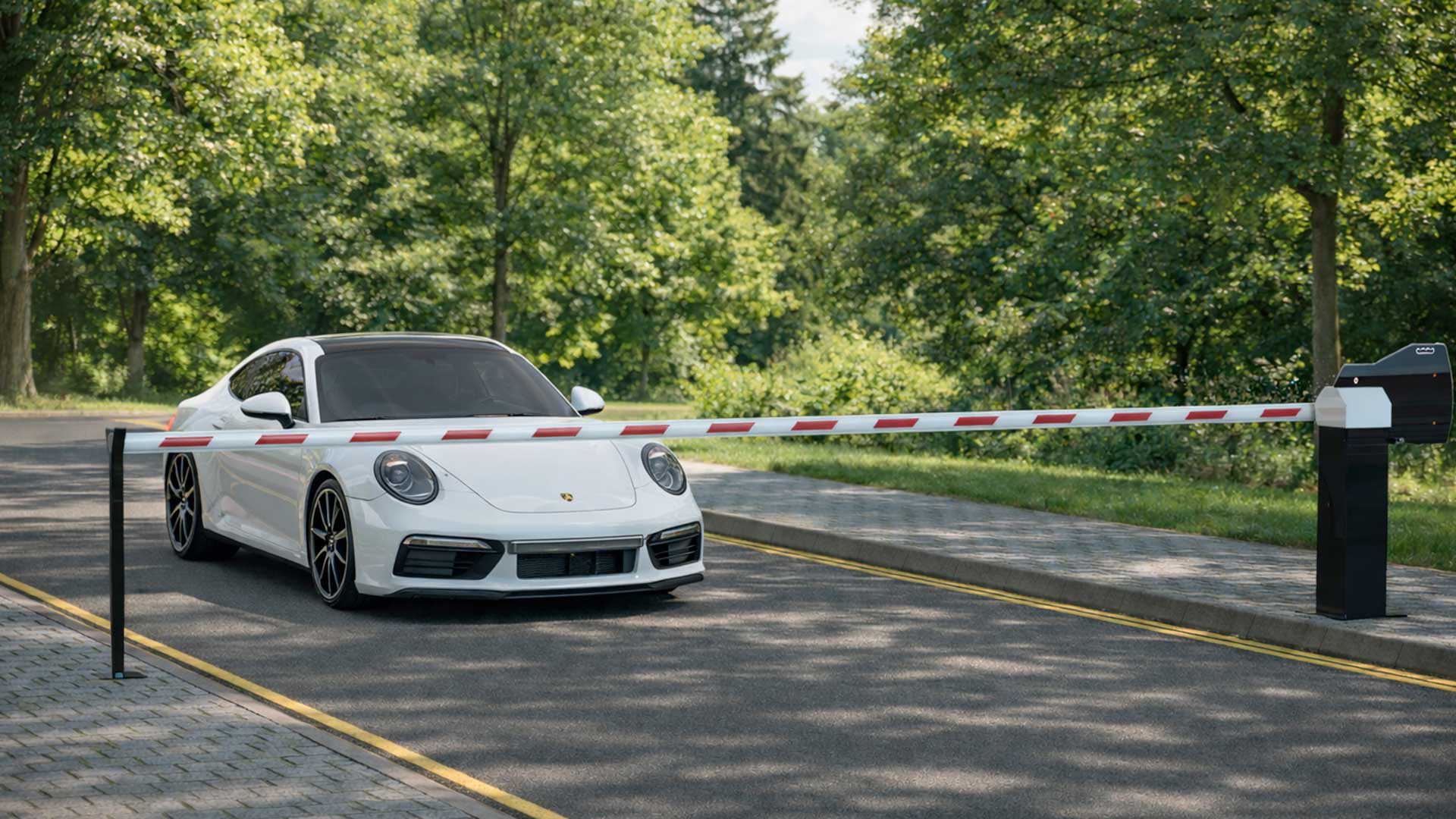

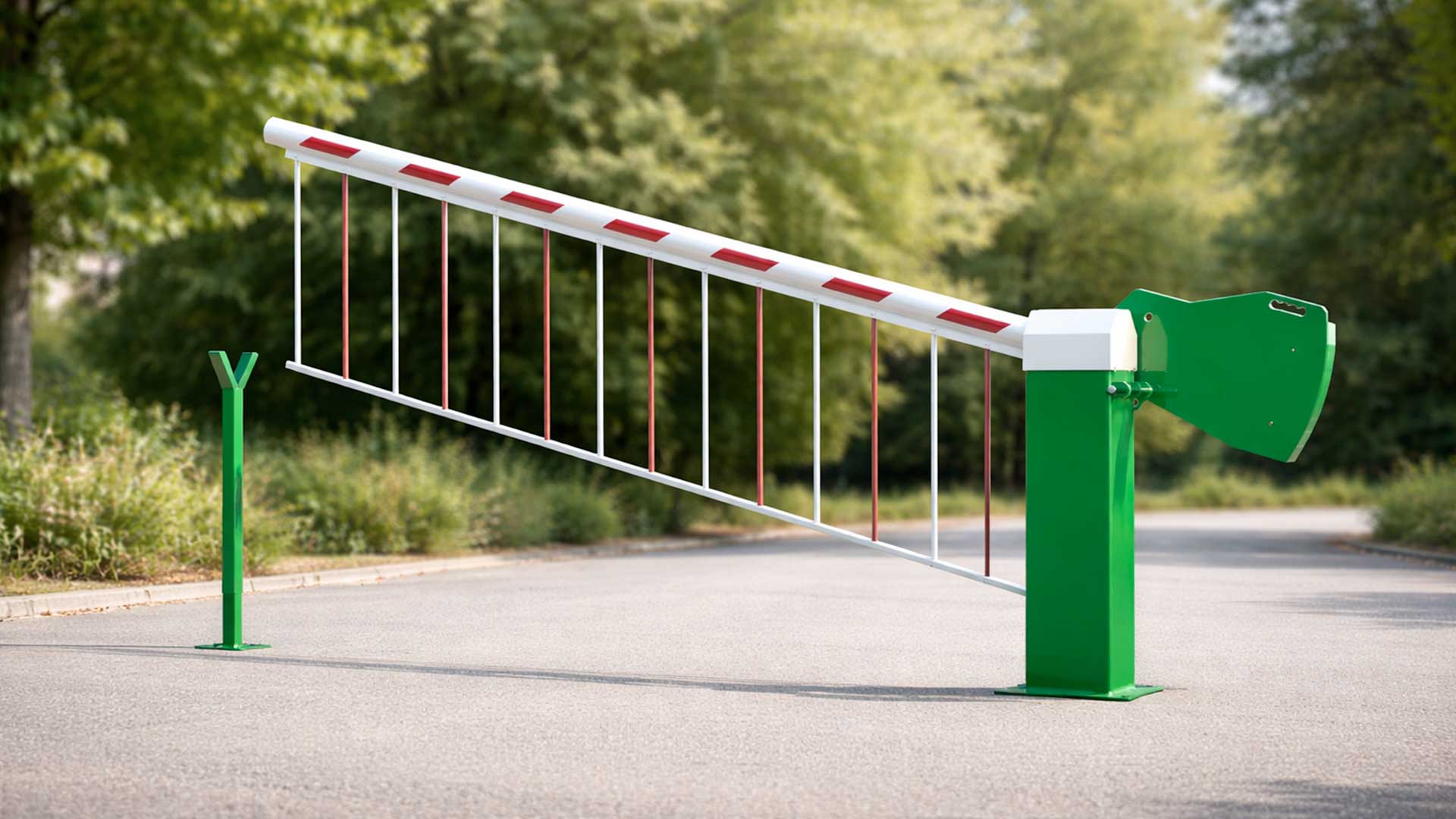

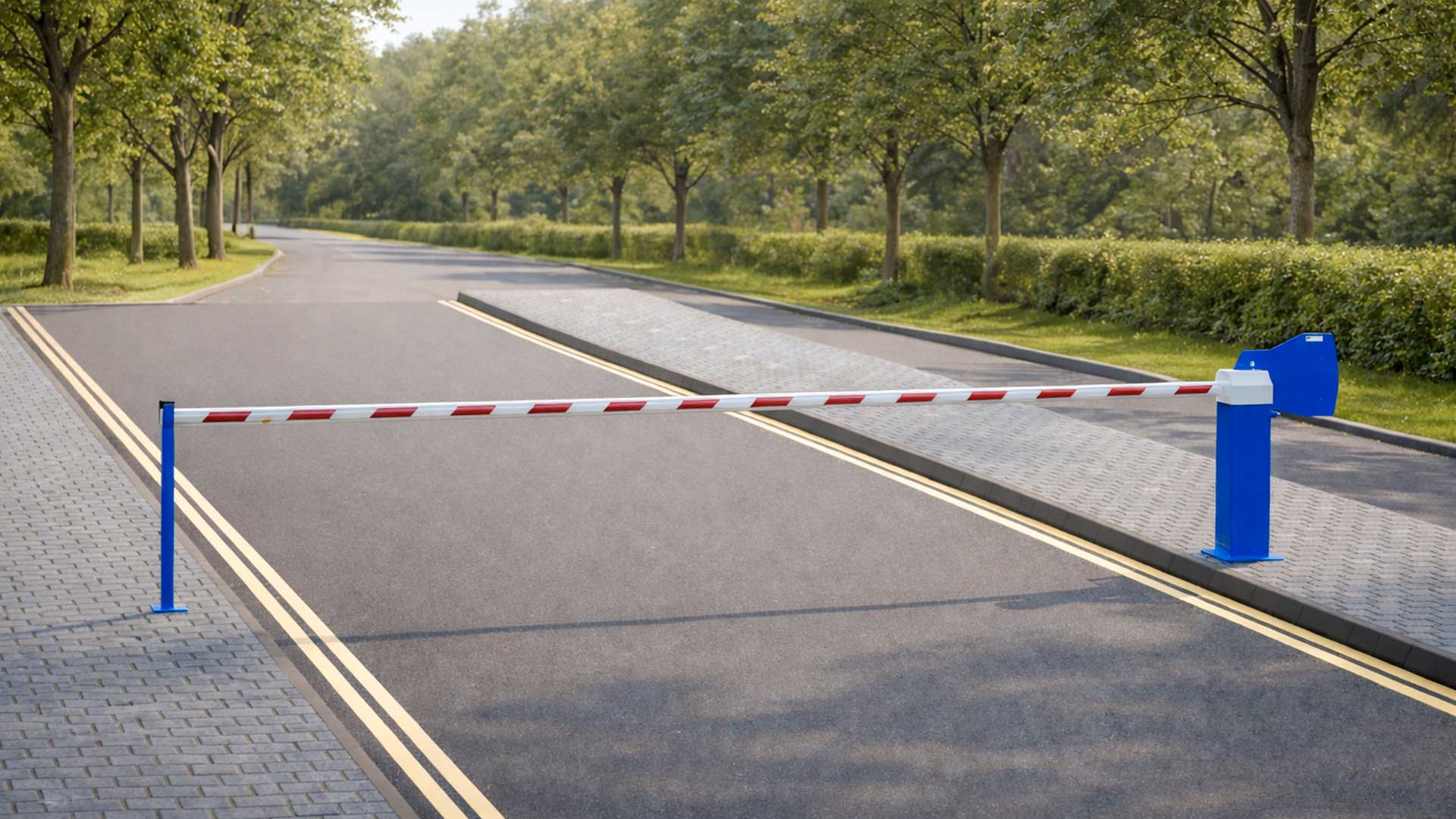

D1500 Manual Barrier GALLERY
