D3850 Heavy Duty Automatic Barrier

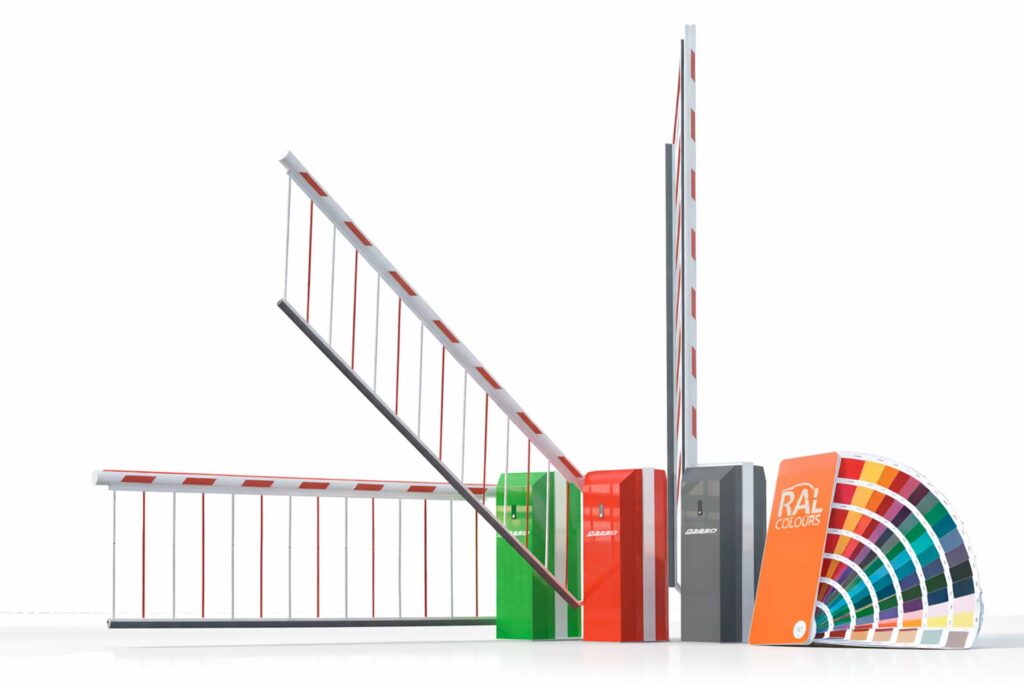

D3850 Heavy Duty Automatic Barrier With a fresh new look designed to reflect the contemporary appearance of the standard barrier, the D3850 can protect road widths of up to 9m. The redesign utilises an enhanced motor and gearbox assembly which has eliminated the need for counterweights. Obviously this also removes the trapping hazards associated with traditional counterweighted barriers, and reduces the space required for installation. As with all our barriers, a complete safety system can be configured, with safety edges to the bottom of plain booms and skirts, photocell protection and induction loop vehicle detection. Lower skirts, or hi-bar skirts can be fitted and we offer a complete customisation service with colour combinations and logos available to match your corporate look.

D3850 Heavy Duty Automatic Barrier

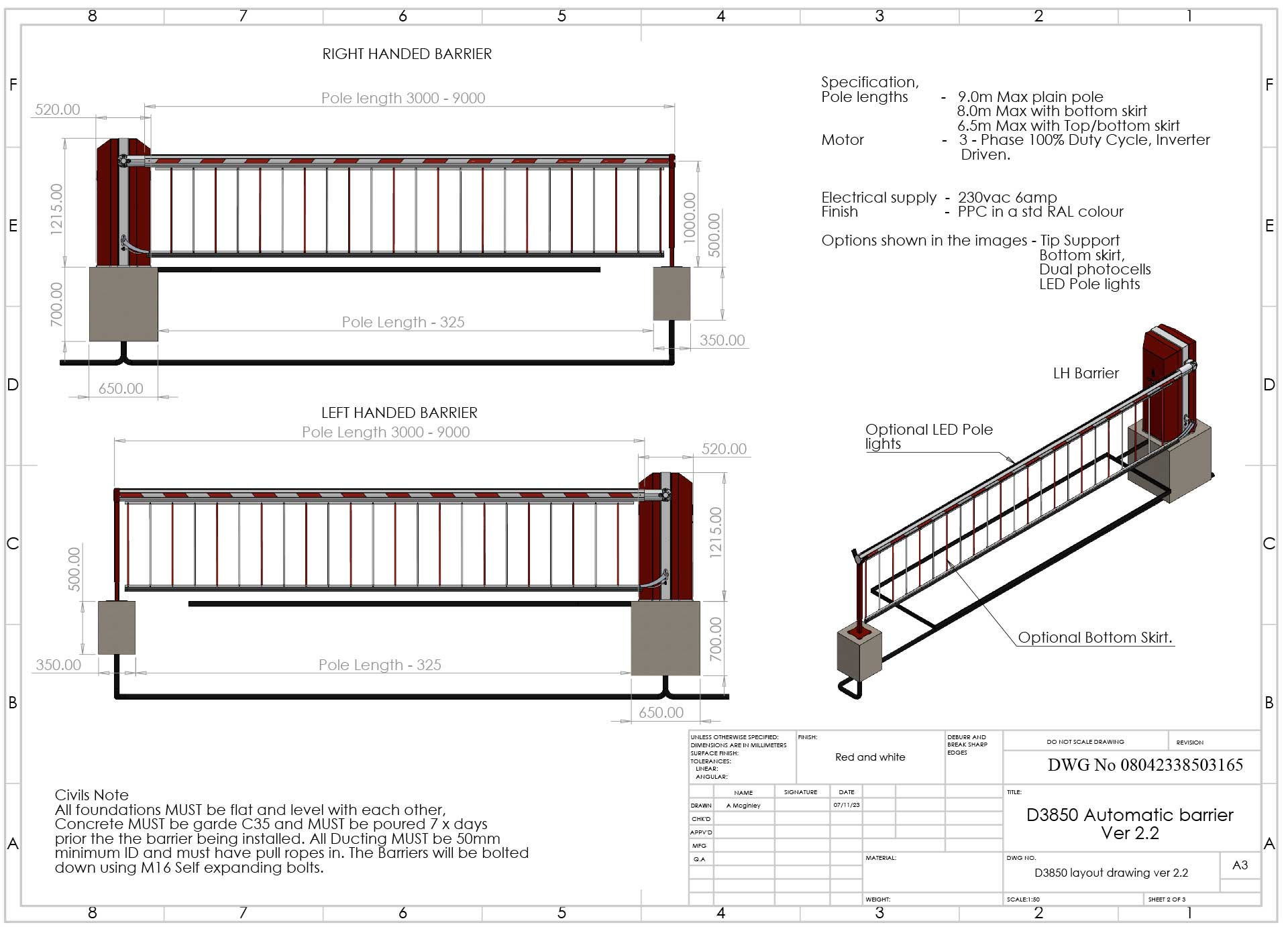

Specifications

MAXIMUM SPAN

9.0m with a plain boom, 8.0m with a bottom skirt, 6.5m with a hi-bar upper and lower skirt

BOOM DIAMETER

Oval 115 x 85

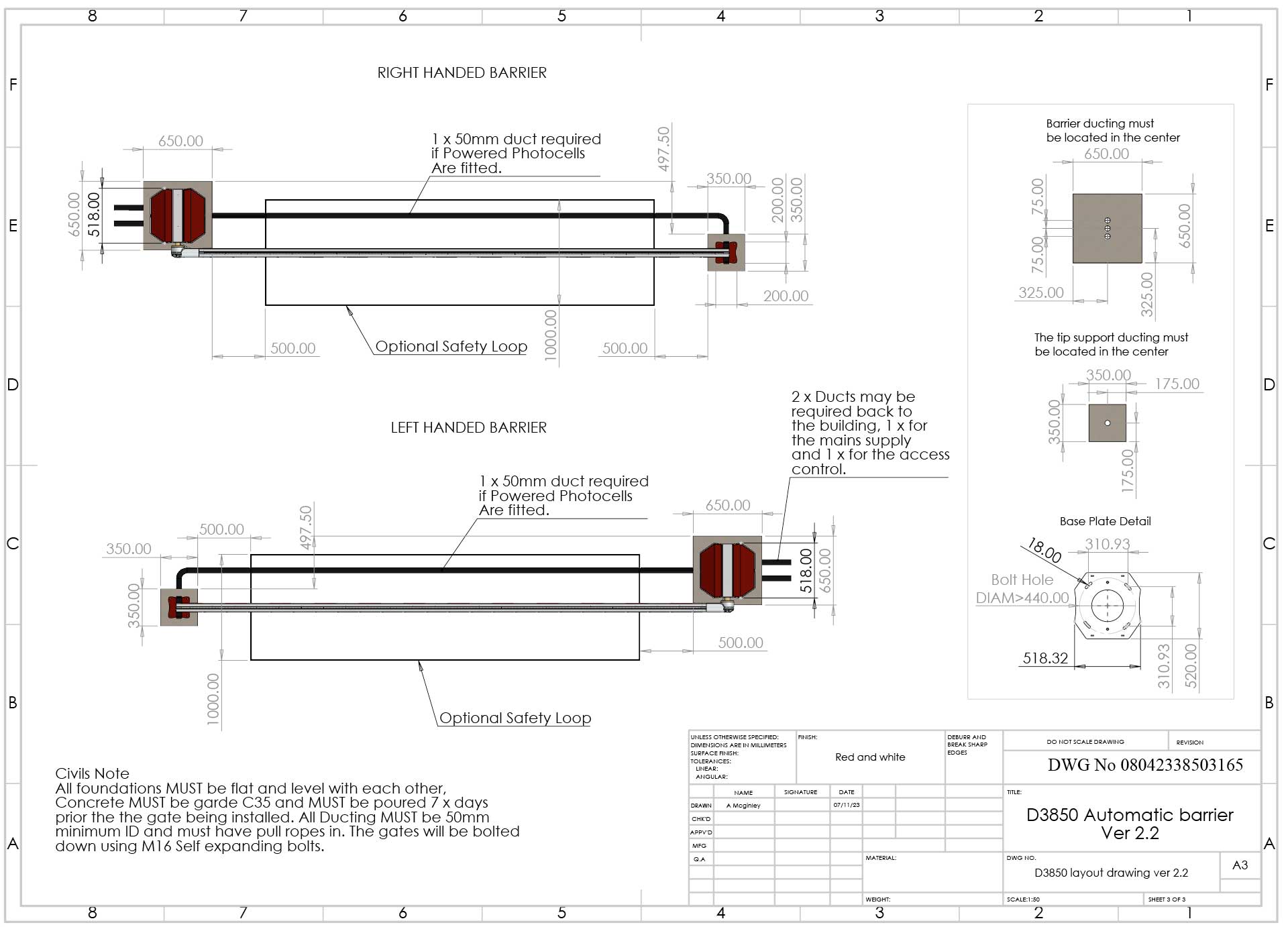

DIMENSIONS

518mm wide x 520mm deep x 1215mm high

OPENING / CLOSING TIMES

4 to 9 seconds (adjustable)

DRIVE UNIT

Inverter driven 3 phase motor and wormed gearbox

CYCLES

100% continuous duty rating

POWER SUPPLY

230VAC, 50Hz 5 Amps

FINISH

Polyester Powder Coated in red and white as standard

D3850 Heavy Duty Automatic Barrier Features

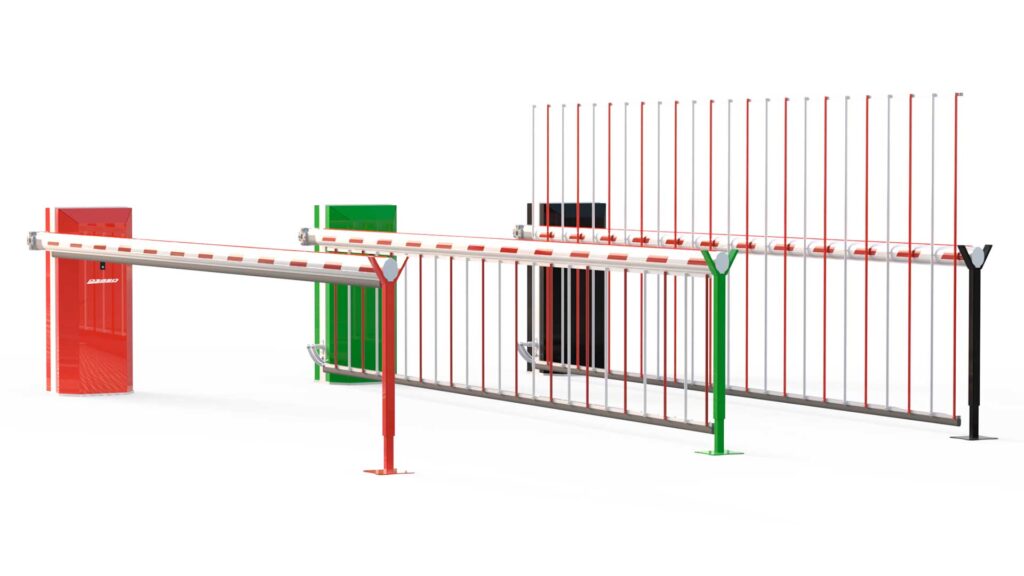

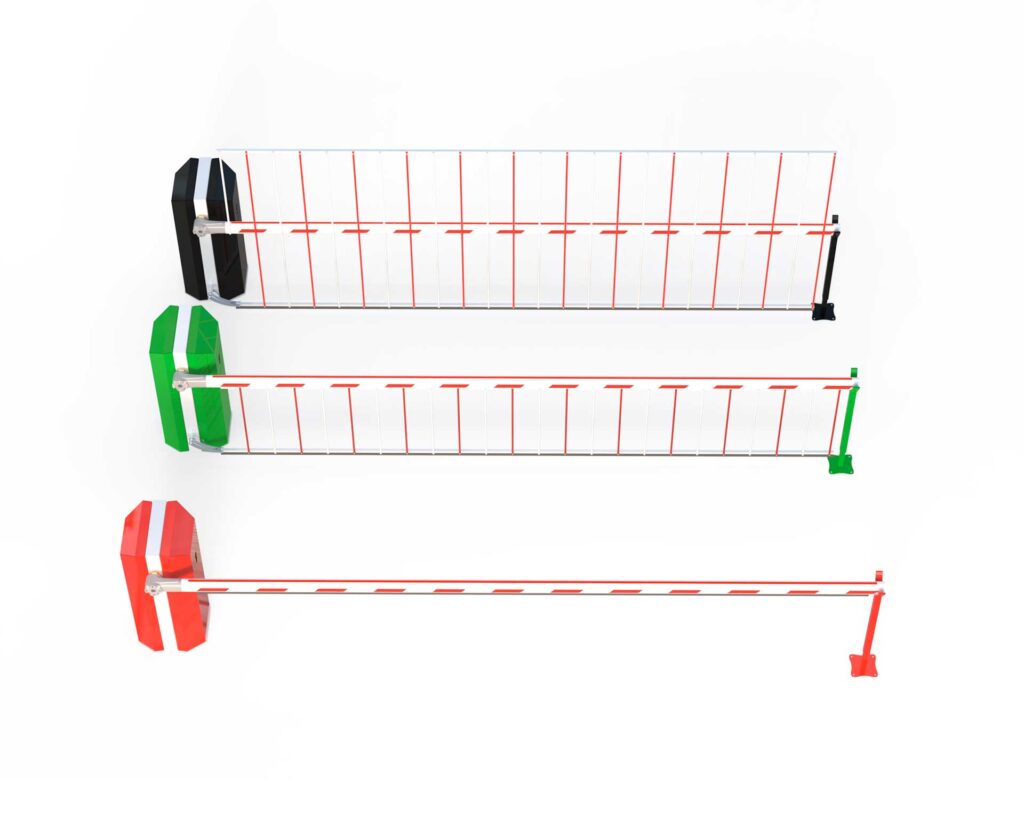

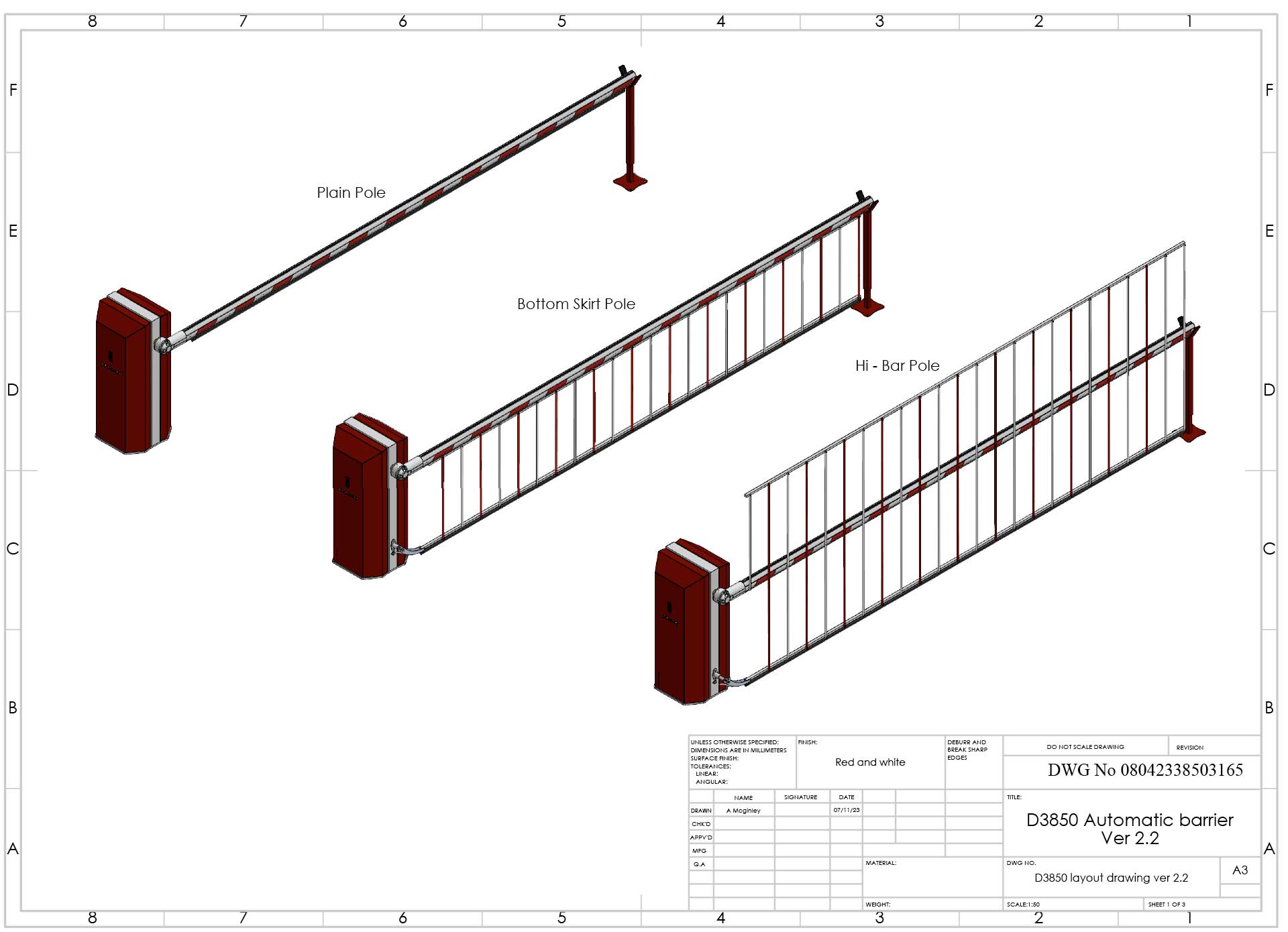

Pole Options

The D3850 offers three pole configurations to suit different applications:

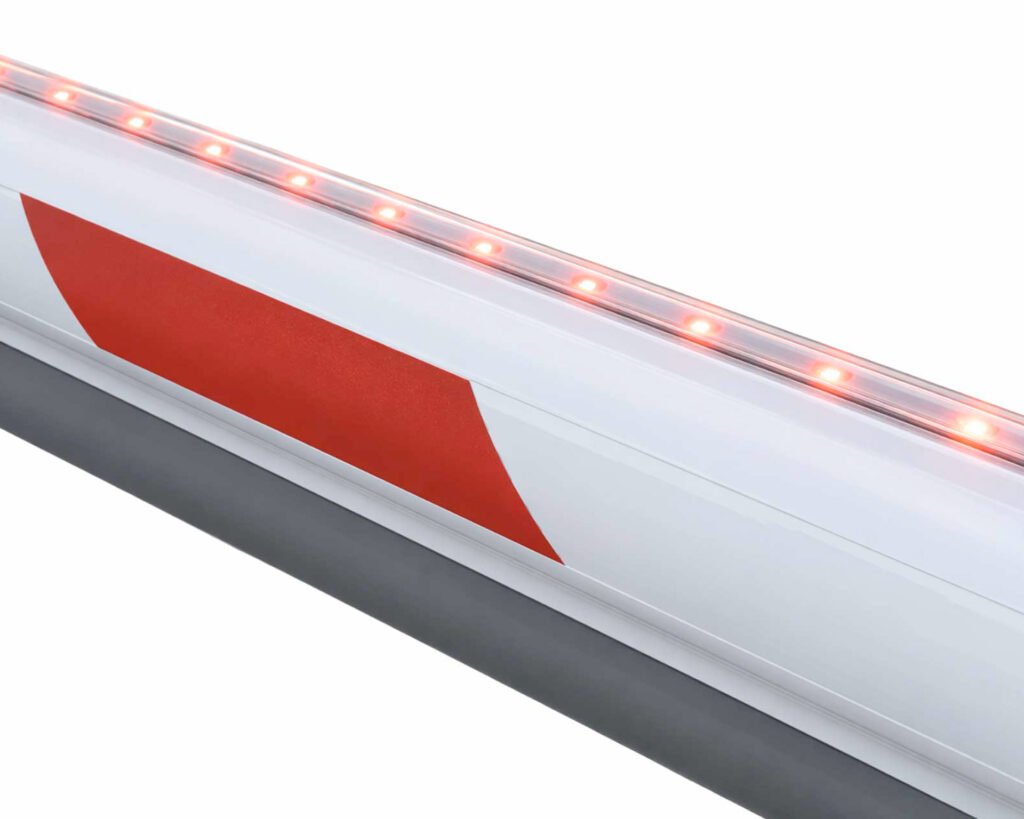

Plain Aluminium Pole – Powder-coated aluminium with red striping, with the option to incorporate integrated LED strip lighting operating as red/green traffic indication. Available up to 9 metres.

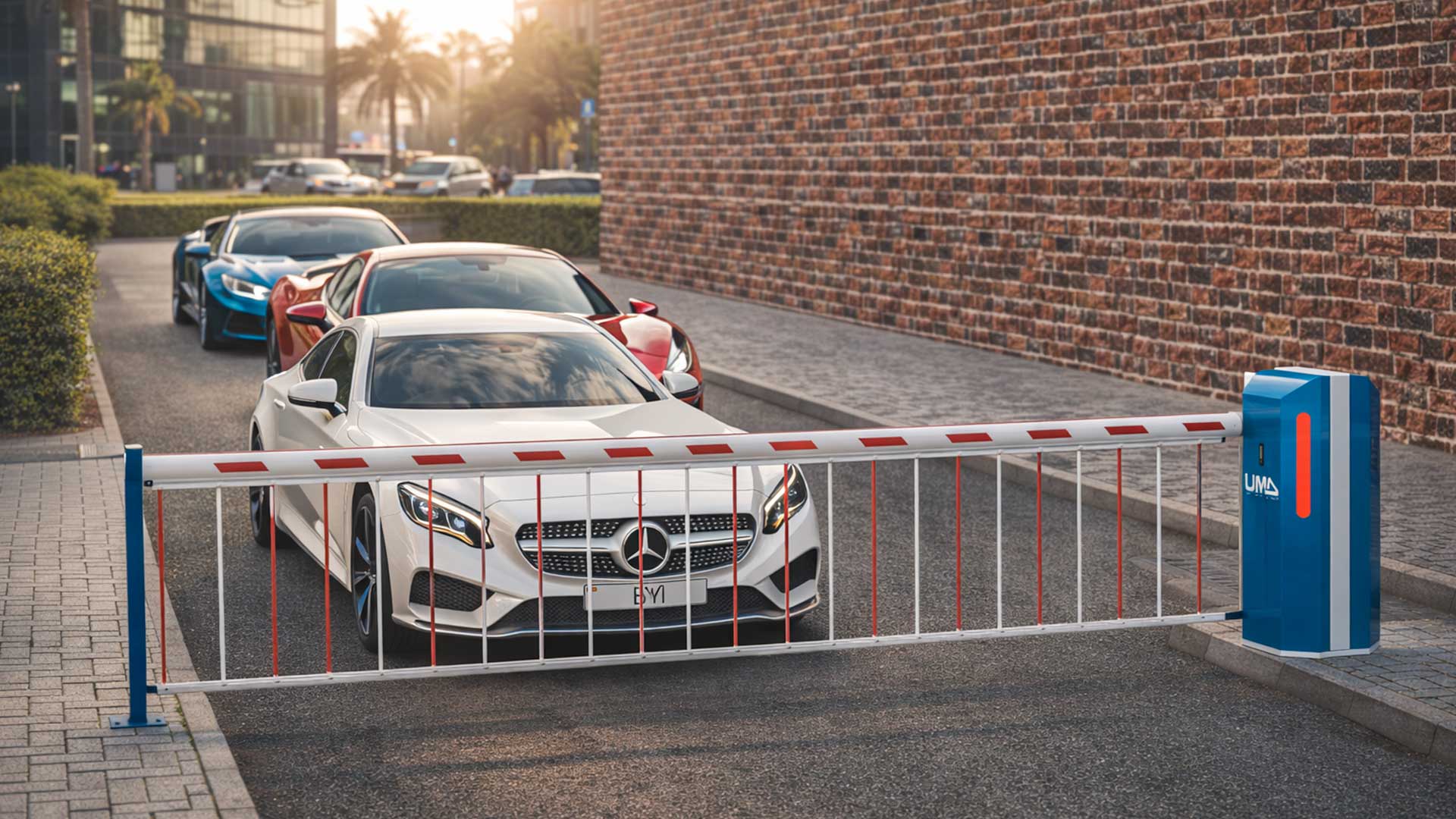

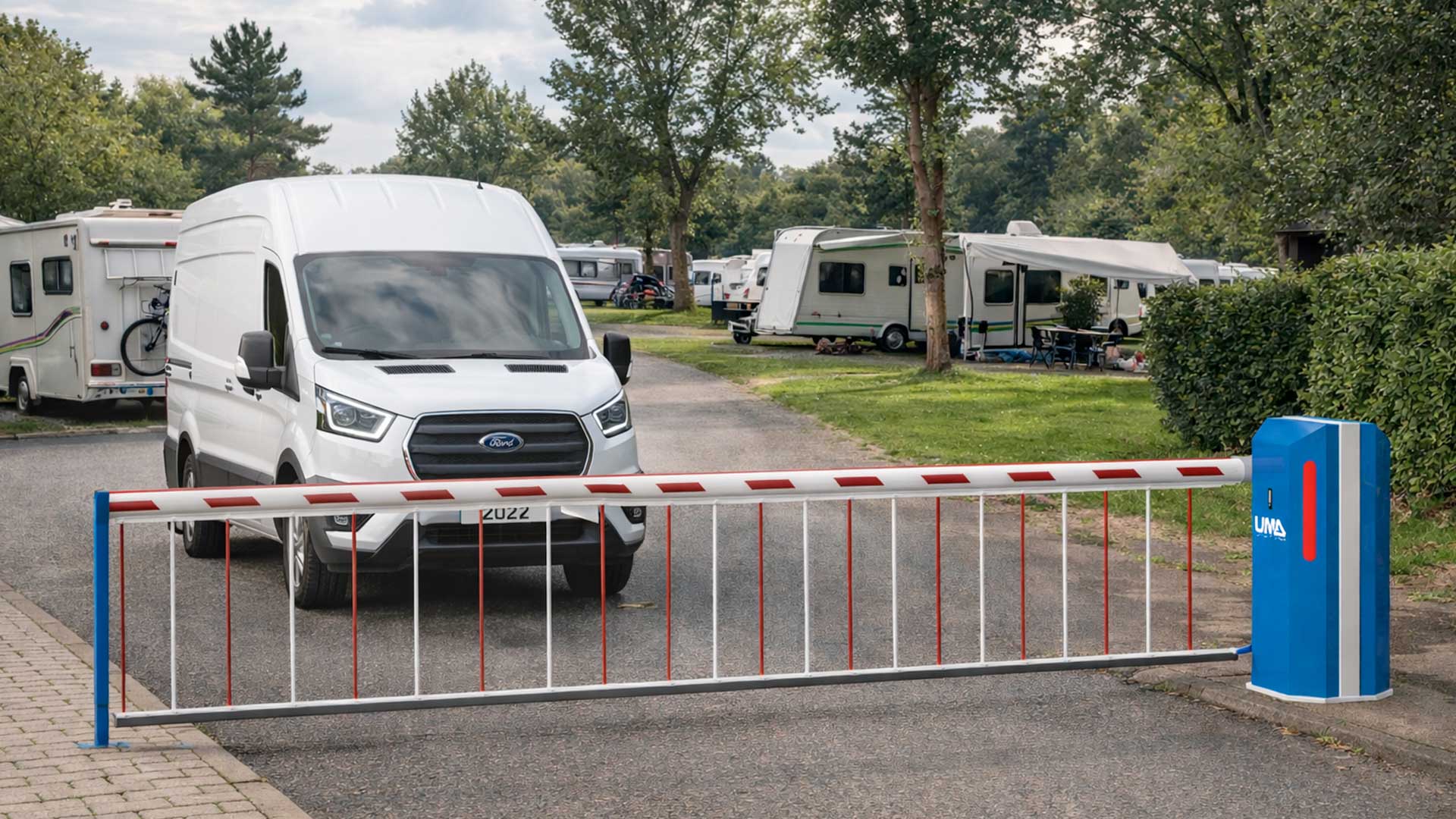

Bottom Skirt Pole – Features a lower skirt with an aluminium extrusion designed to house a safety edge. Available up to 8 metres.
Full Hi-Bar Skirt Pole – A full-height skirt system that can also incorporate a safety edge for enhanced protection. Available up to 6.5 metres.

Both skirt options are securely attached to the barrier, helping to prevent wind damage and improve durability in exposed environments.

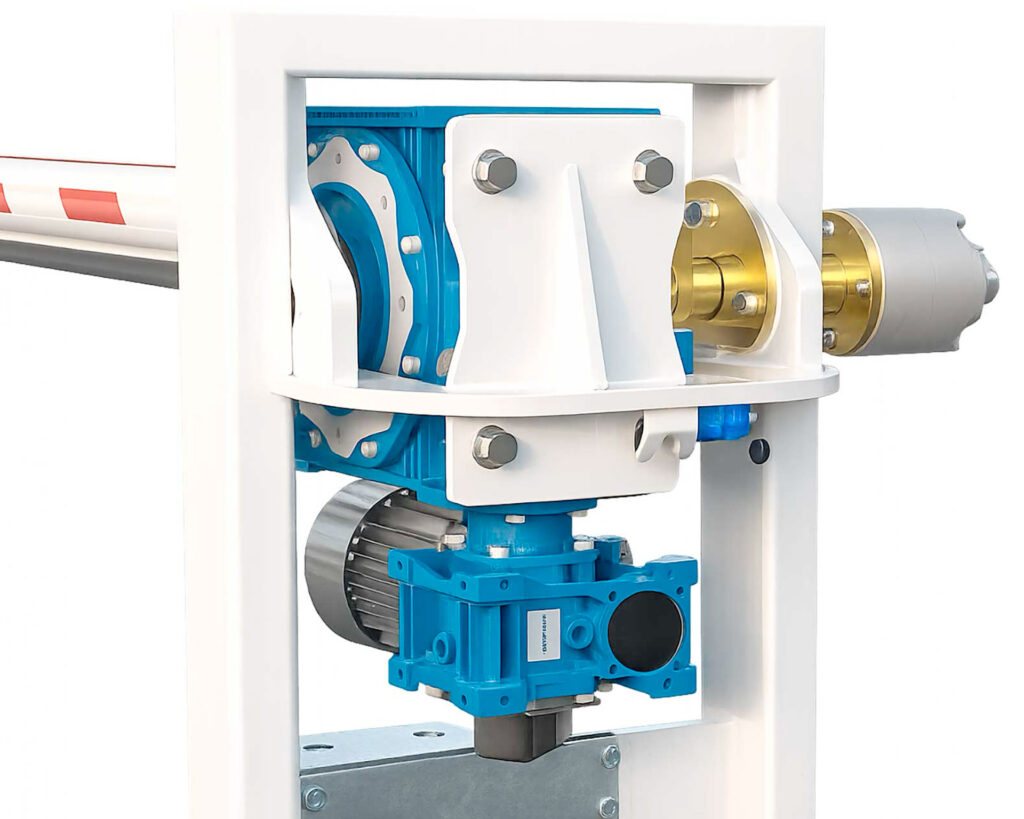

The D3850 is equipped with a three-phase motor and gearbox, delivering a 100% duty cycle while only requiring a single-phase supply to the Feig controller. Its heavy-duty gearbox eliminates the need for spring assistance, allowing for easier installation and setup, as well as lower maintenance requirements.

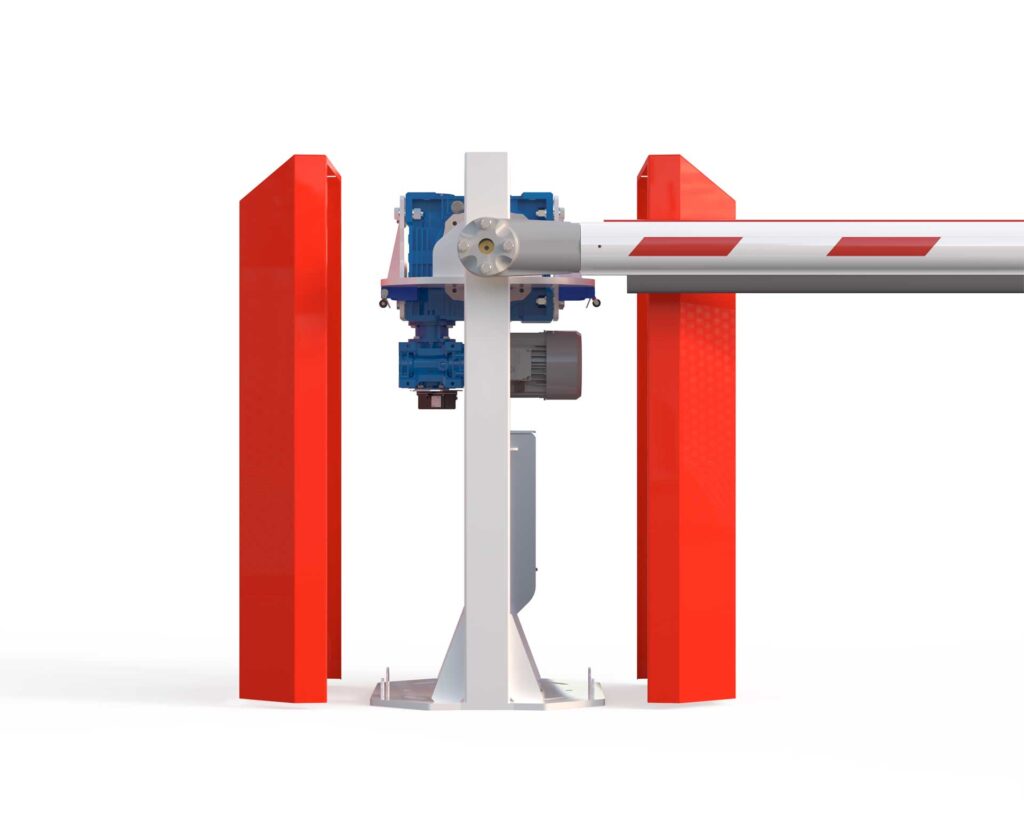

Heavy duty Gearbox

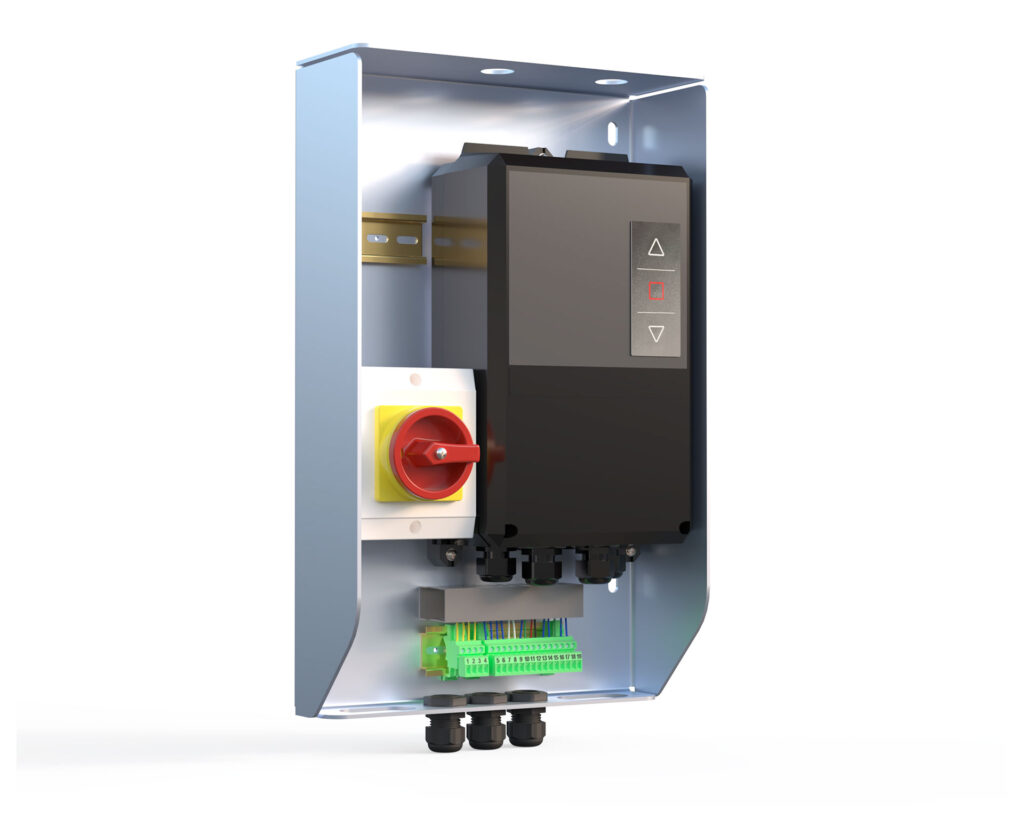

Controller

The D3850 is supplied with a Feig controller that delivers three-phase power to the motor and gearbox. With adjustable speeds and slowdown settings, installers can easily fine-tune the barrier for exceptionally smooth operation.

Featuring hundreds of easily accessible parameters and built-in obstacle detection, the system offers both flexibility and safety. The software has been developed in collaboration between Ultimation and Feig, ensuring the D3850 stands out as one of the best-performing barriers on the market.

Encoder Driven

The D3850 features a Feig encoder directly coupled to the gearbox, providing precise monitoring and control of the barrier’s operation.

This advanced encoder enables built-in obstacle detection, making the D3850 one of the safest three-phase barriers available on the market today.

By eliminating the need for traditional limit switches, the system ensures ultra-precise positioning while also simplifying setup and commissioning.

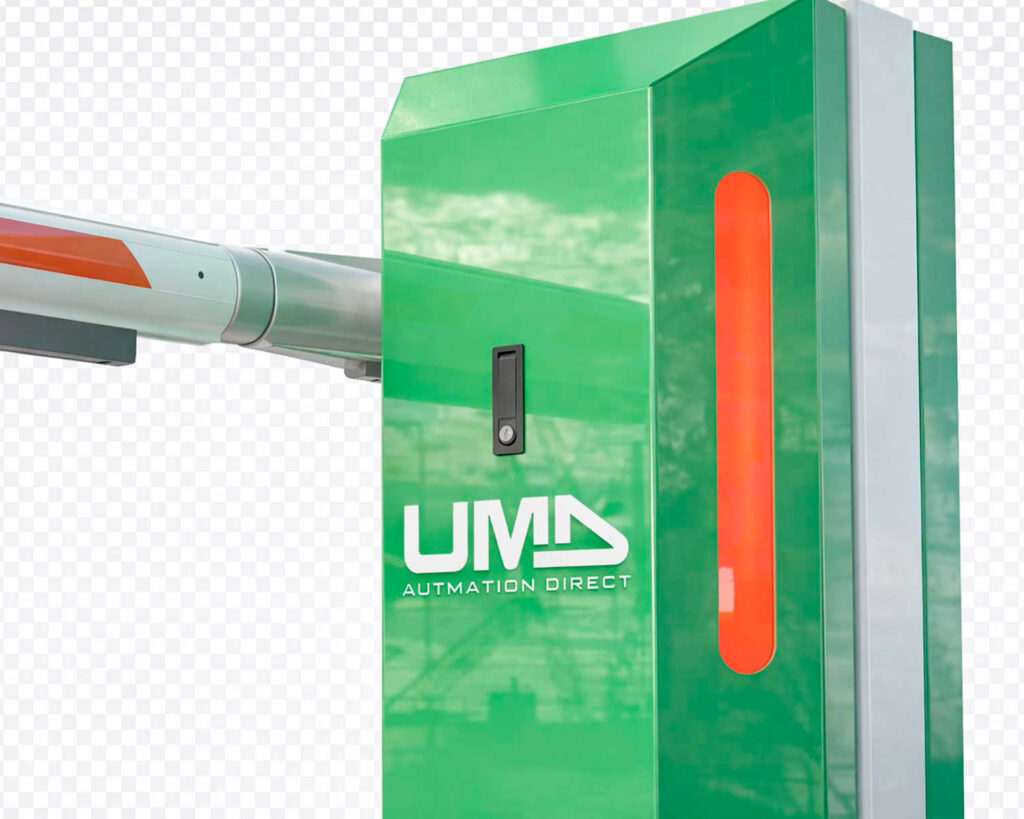

The barrier has been designed with the installer in mind, while still maintaining strong aesthetics. Its clamshell-style covers are fully removable, allowing for easy installation and maintenance. The covers can also be quickly replaced if damaged, reducing downtime and simplifying servicing.

Barrier Design

Pole Design

The barrier pole is engineered with an integrated aluminium extrusion that incorporates LED lighting, skirts, and a safety edge.

This clean, integrated design enhances the overall appearance while ensuring that key components such as skirts and lighting can be easily replaced if damaged, making on-site maintenance fast and efficient.

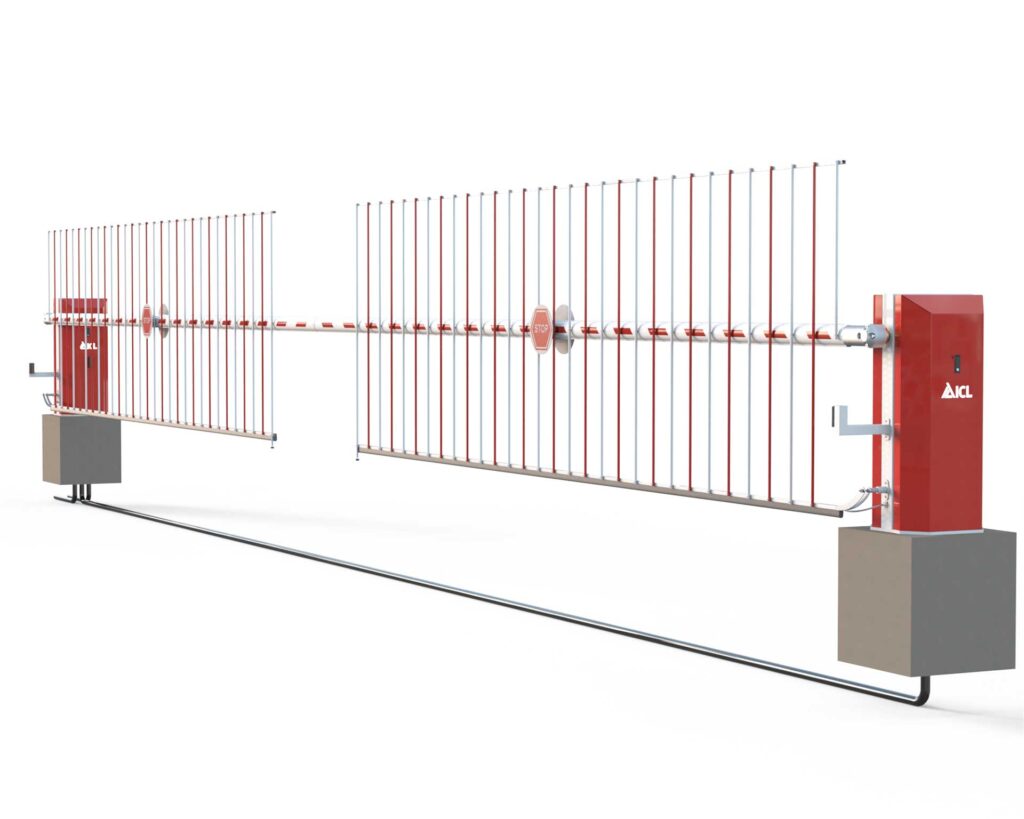

Master/Slave Option

The D3850 can be configured in a master and slave setup, simplifying installations that require paired barrier operation.

Only a simple 5-core cable is required between the two barriers, with the software providing true master/slave functionality. All signals are replicated, ensuring the slave barrier precisely mirrors the operation of the master.

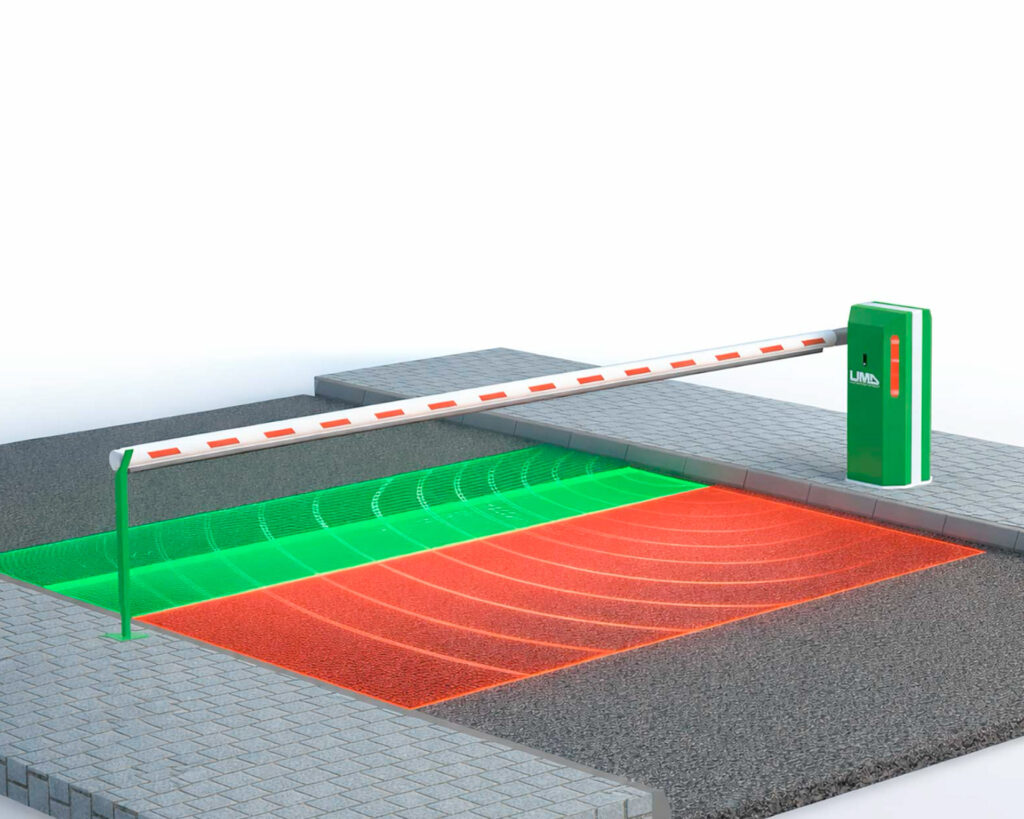

UMD offers the option of factory-fitted Feig radar on the D3850 barriers. This state-of-the-art radar system eliminates the need for traditional induction loops, resulting in a much simpler installation and avoiding any disruption to the road surface.

Installation is straightforward, with setup completed via the Feig app. The radar provides a wide range of configurable options, offering greater flexibility than conventional loop systems. Features include direction-of-travel detection and the ability to detect pedestrians within the safety field only.

This factory-fitted solution makes the D3850 one of the easiest and most efficient barriers on the market to install.

Optional Feig Radar

Bespoke Traffic lights

We offer bespoke traffic light solutions to suit a wide range of applications. Options include integrated laser-cut apertures within the barrier covers, illuminated with LED lighting to function as clear traffic signals.

Alternatively, traditional pole-mounted traffic lights can be supplied pre-mounted to the barrier, providing a familiar and highly visible signalling solution.
