D6150 Pedestrian Auto Gates

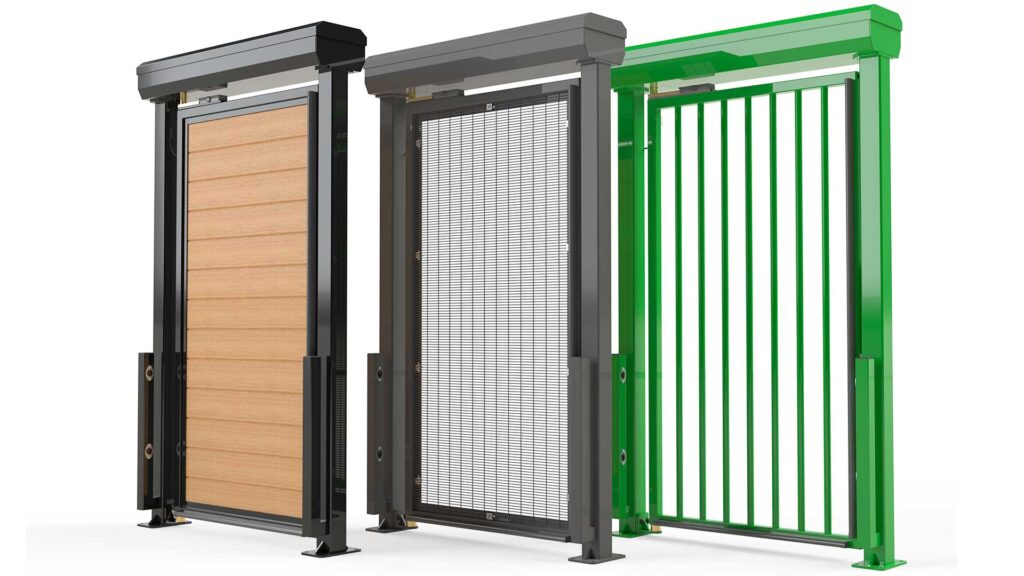

D6150 Automated Pedestrian Swing Gate The UMD D6150 Automated Pedestrian Swing Gate is designed for demanding environments where robust construction, high performance, and fully controlled pedestrian access are essential. Built for commercial and industrial applications, it provides a heavy-duty solution for sites requiring larger gate sizes and intensive daily use.

Powered by a 3-phase motor and FEIG control system, the D6150 delivers smooth, reliable operation with precise movement control and long-term durability. Designed for regular use in high-traffic locations, it offers dependable performance where lighter-duty systems may not be suitable.

Capable of widths and heights up to 3.0m, the D6150 is ideal for warehouses, logistics centres, utilities, schools, and secure perimeter entrances. Combined with compliant safety features, access control integration, and bespoke infill options, it provides a complete automated pedestrian gate solution for larger access points.

D6150 Pedestrian Auto Gates

Specifications

MAXIMUM SPAN

3.0m Max

MAXIMUM HEIGHT

3.0m Max

Drives

3 – phase internal Motor

Safety

Lower and Vertical Cat 3 safety edges, Dual height photocells

Locking

500kg Maglock

Finish

Primed and Polyester Powdercoated in a STD RAL colour

D6150 Pedestrian Auto Gates Features

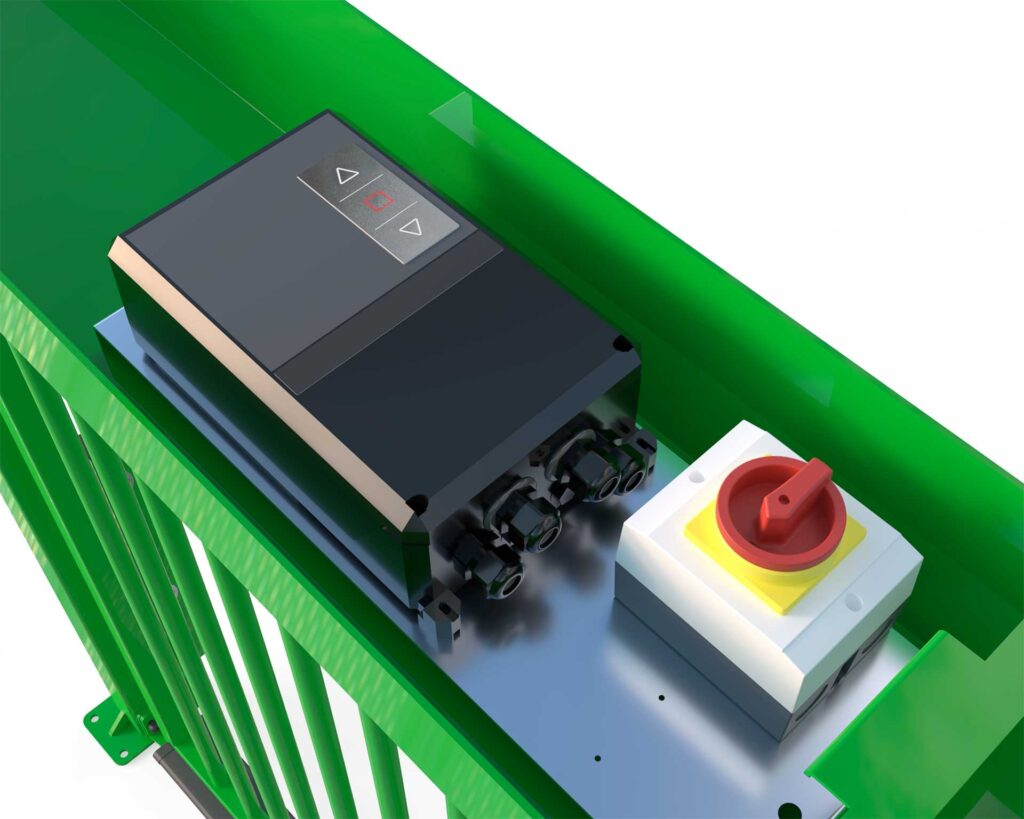

CONTROLLER

The D6150 is equipped with a FEIG controller, neatly positioned in the top trough. This controller powers the three-phase drive while requiring only a single-phase supply, ensuring smooth and reliable gate operation with built-in slowdown functions and obstacle detection.

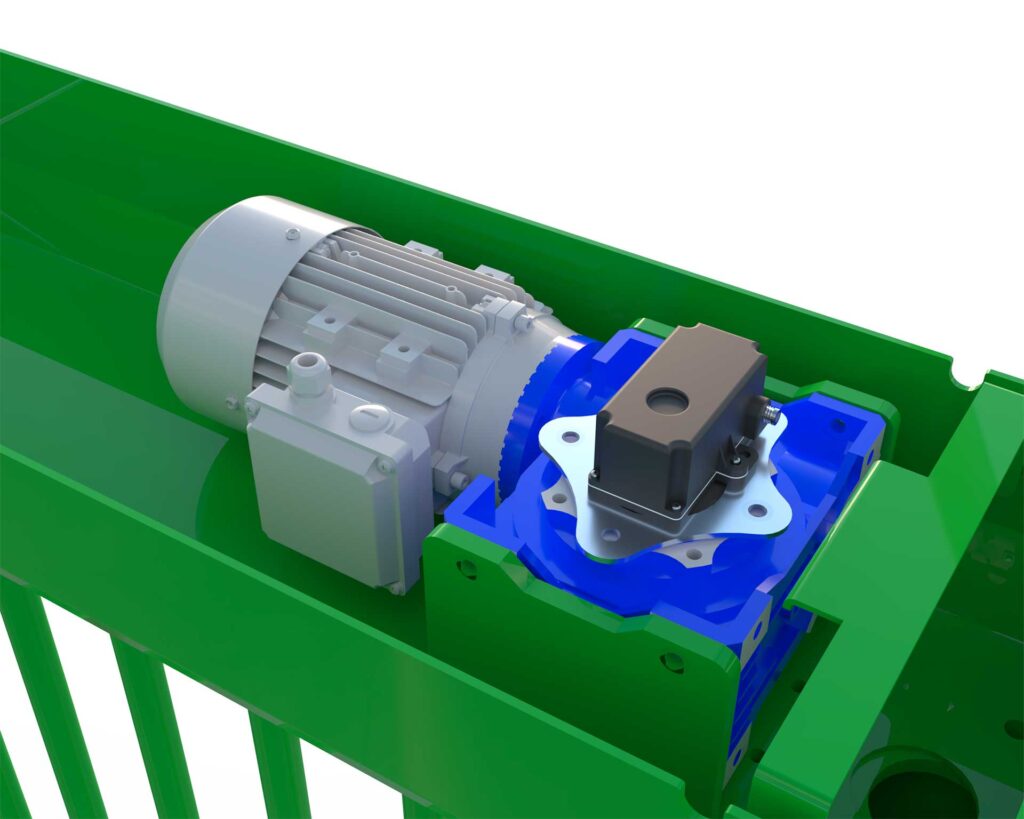

The D6150 is equipped with a heavy-duty three-phase motor and gearbox, delivering a 100% duty cycle with smooth, reliable performance. Combined with a FEIG encoder fitted directly to the gearbox for ultimate precision, it ensures the gate operates flawlessly in all conditions.

GATE DRIVE

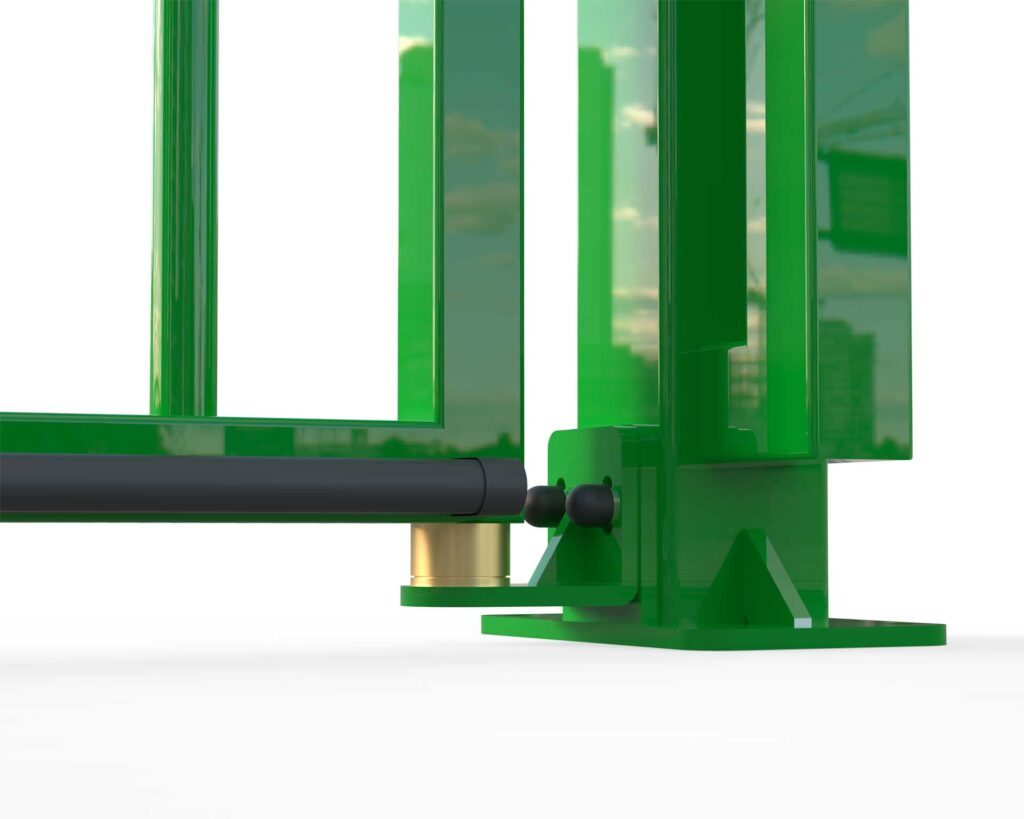

HD GATE HINGES

The D6150 is equipped with precision-engineered bearing hinges rated for loads of up to 500kg, delivering enhanced structural support, reduced frictional wear, and consistent long-term operational reliability.

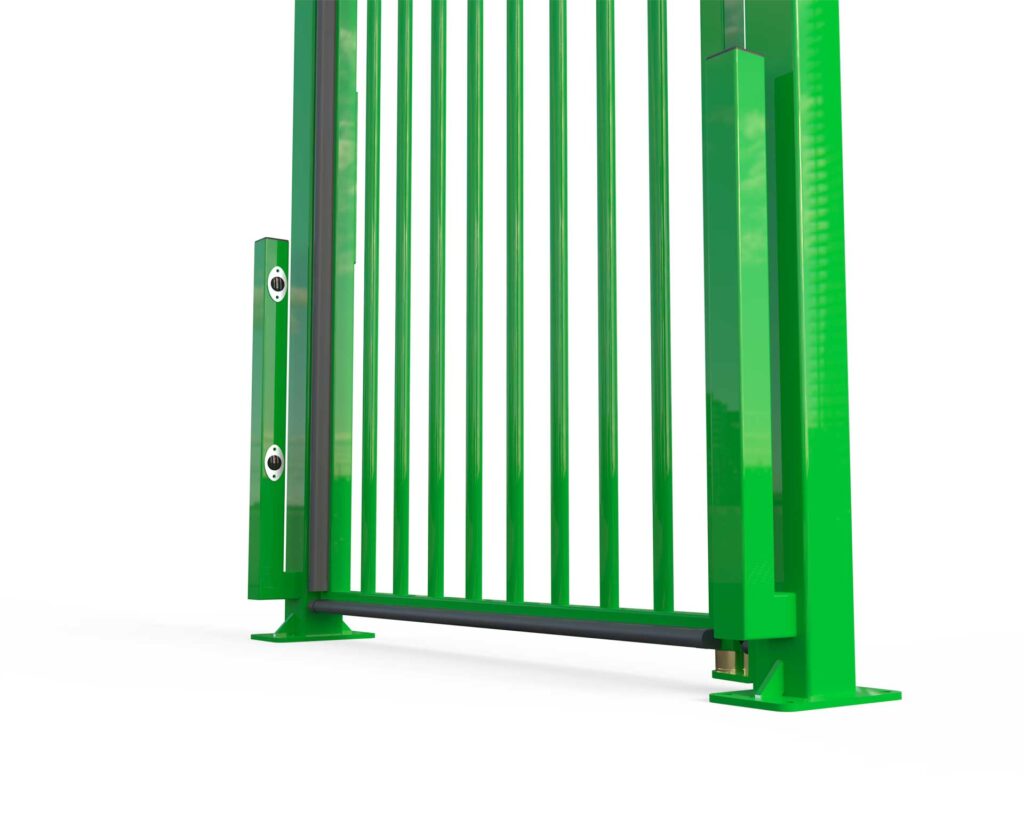

SAFETY SYSTEMS

The D6150 is supplied as standard with a comprehensive safety package, including dual-height photocells for enhanced presence detection. The gate leaf is equipped with Category 3 safety edges, featuring two lower horizontal edges and one closing vertical edge. Combined with advanced obstacle detection, this ensures full protection across all primary risk zones.

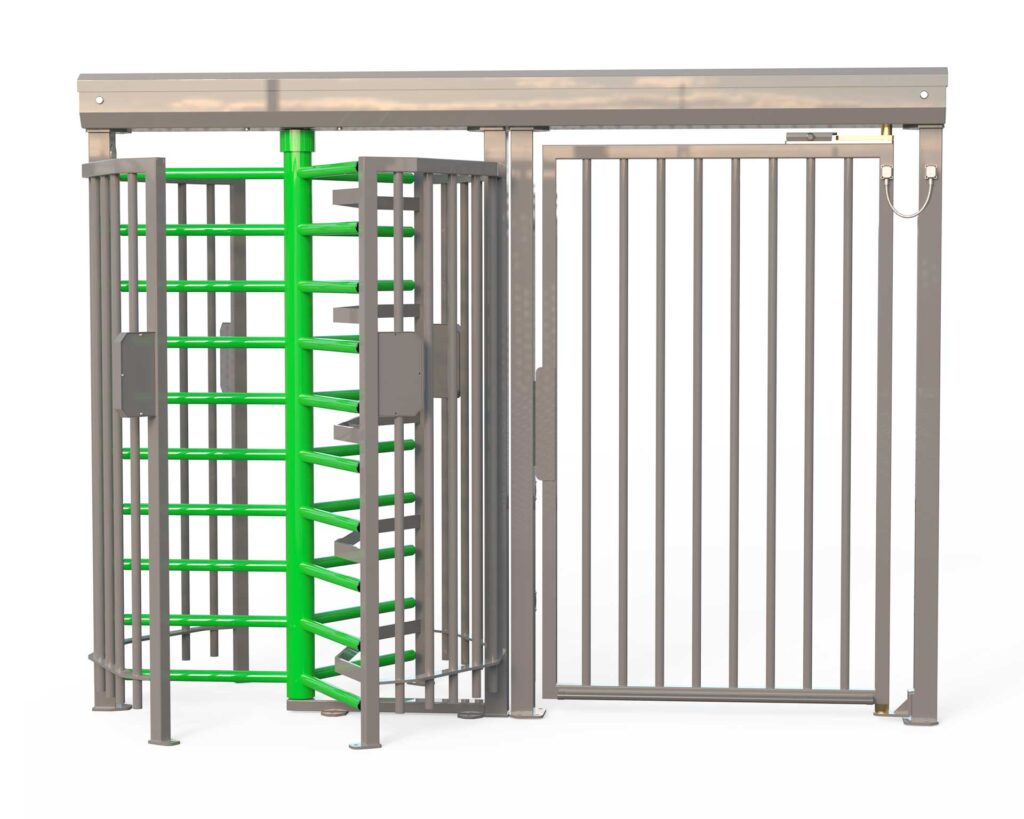

Available as a turnstile Combi

The D6150 is also available as a Turnstile Combination, where the D4150 and D6150 are integrated into a single, streamlined solution. This all-in-one design offers a smart, cohesive appearance and allows for installation as a complete unit, minimising on-site installation time and complexity.

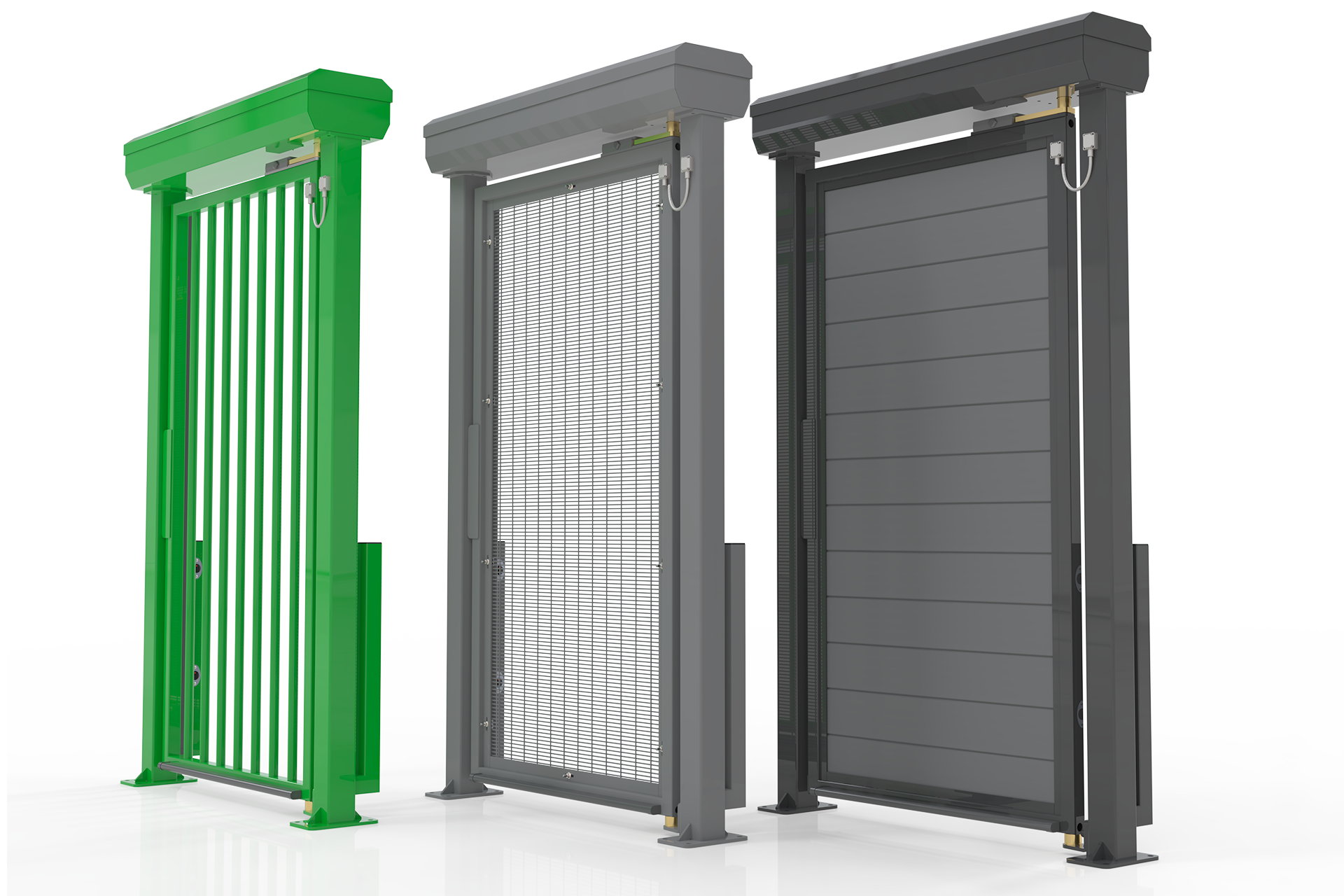

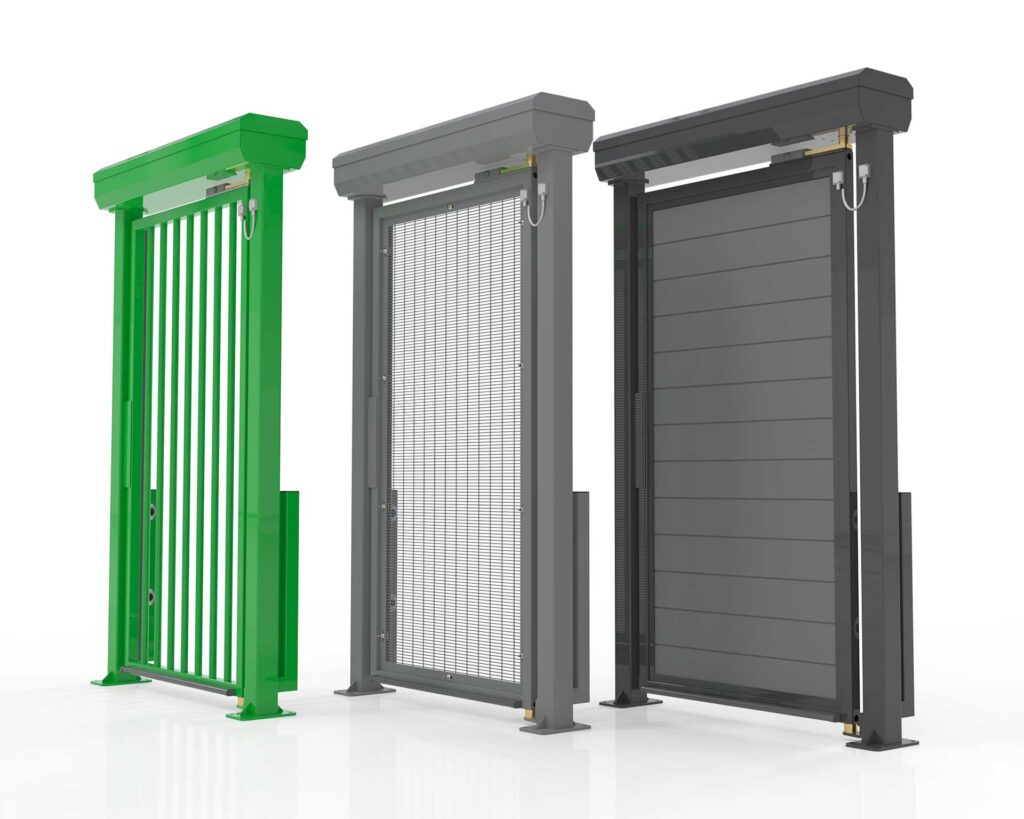

Gate Infills

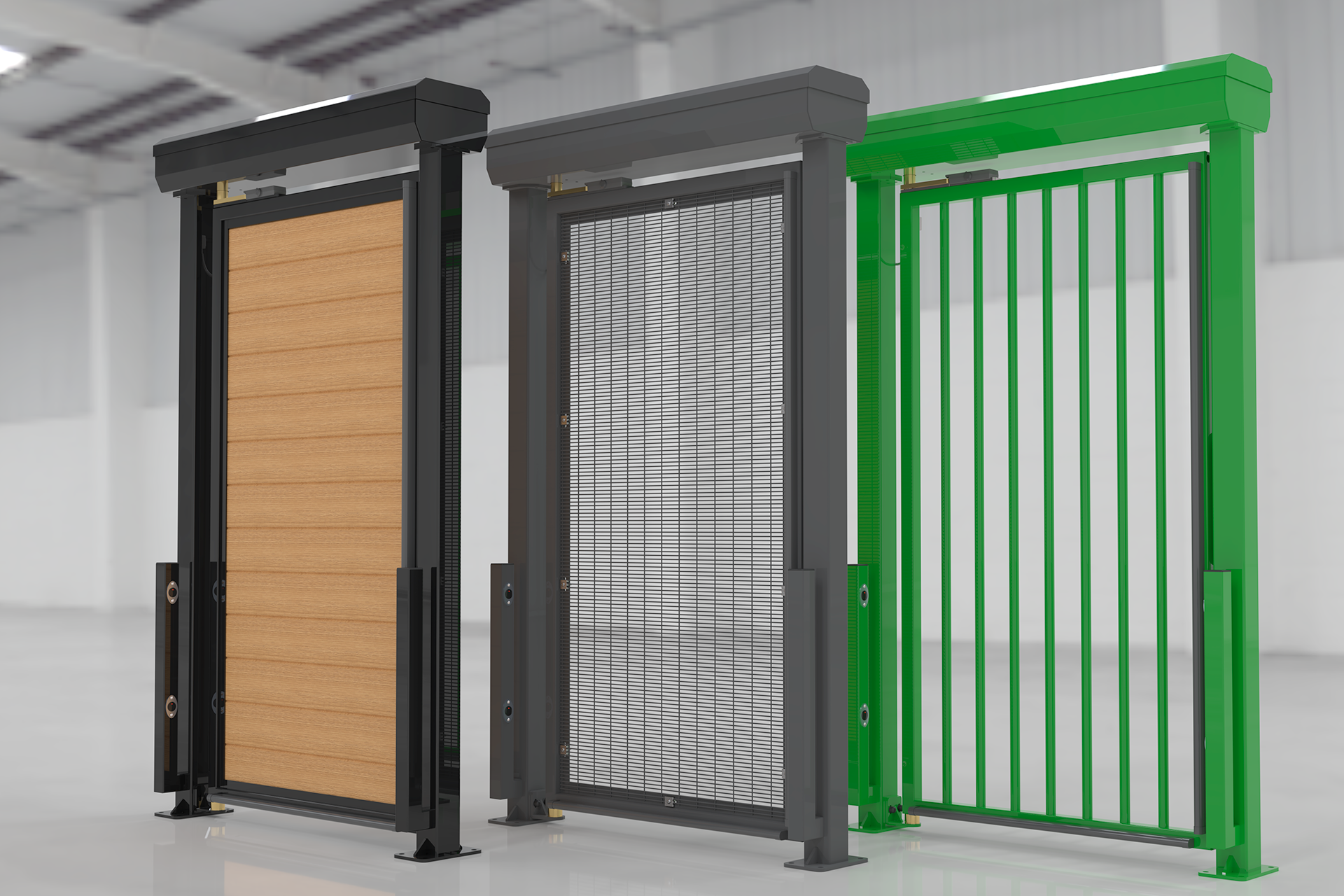

The D6150 offers a wide range of infill options, including vertical tube, 358 mesh, 200 × 50 V mesh, composite, and many more, allowing it to be tailored to suit a variety of applications and aesthetic requirements.
