D3250 Automatic Barrier

ultimation-direct-logo-1024×323
web4less-large-logo

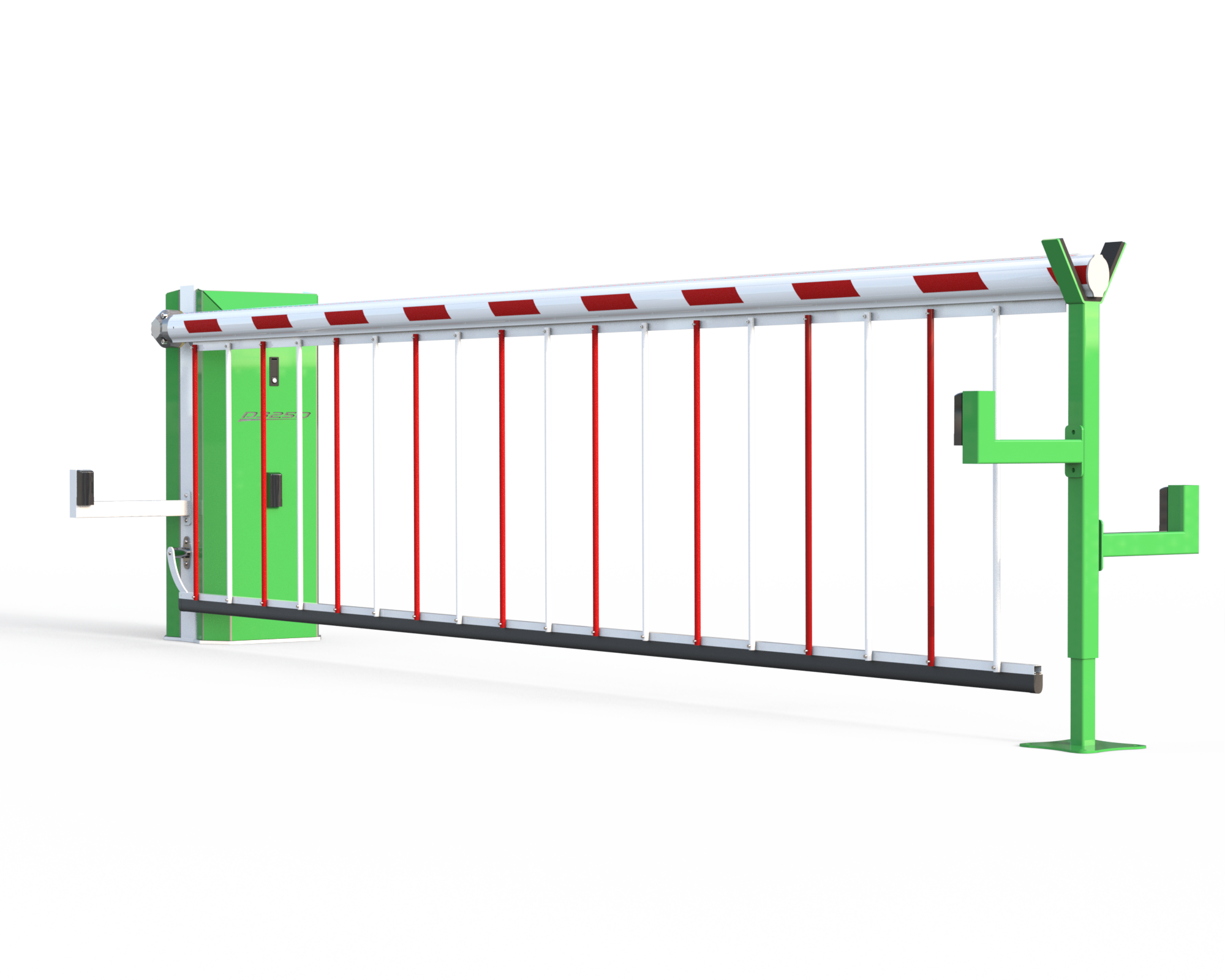

The D3250 automatic barrier has been the most popular barrier in our range since it’s introduction due to its smart appearance and ease of set up. The barrier is available to cover carriageways of up to 7m with a plain boom or 5m with a full hi-bar upper and lower skirt.

The D3250 can be fitted with lower skirts or hi-bar skirts to deter pedestrians from bypassing the barrier and LED boom lights combined with STOP signs add to the visibility of the barrier to drivers in all weather conditions.

Fully 100% rated, our D3250 barrier is suited to the most demanding applications with the highest level of traffic flow.

A complete safety system can be configured, with safety edges to the bottom of plain booms, photocell protection and induction loop vehicle detection combining to ensure that your barriers are fully compliant with the latest safety guidelines.

web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo

Specification

Maximum Span:

7.0M with a plain boom, 6.0m with a bottom skirt, 5.0m with a high-bar upper and lower skirt.

Boom Diameter:

76mm

Dimensions:

4-5mm x 420mm x 1140mm

Opening / Closing Times:

1.2 to 6 seconds (Adjustable)

Drive Unit:

Inverter driven 3 phase motor and wormed gearbox.

Power Supply:

230 VAC, 50Hz 5 Amps

Cycles:

100% continuous duty rating

Finish:

Polyester Powder Coated in red and white as standard

PLC

D3250 barriers are fitted with a Schneider PLC unit with a graphic display to simplify commissioning and maintenance. There are many adjustable parameters including speed adjustment, with a slow down feature, and a standard time clock function.

web4less-large-logo

Skirt

A lower skirt or hi-bar upper and lower version can be fitted to the barrier at additional cost, and a high visibility STOP or NO ENTRY signs and LED boom lights may be specified to the the boom.

web4less-large-logo

Finish

Barriers are powder coated in red and white or black and yellow as standard, however, other standard RAL colours may be specified at no additional cost. Booms are vinyl striped in red and white with a limited choice of other vinyl colours.

web4less-large-logo

Barrier Design

The cabinet has a clean contemporary appearance with fully removable clamshell covers to both sides to allow complete access to all internal components.

web4less-large-logo

Logo

To enhance your site entrance we are able to produce LED backlit logos into the barrier cabinet. These are designed on CAD and cut into sheet steel with our water cutter.

web4less-large-logo

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
