D5600 Cantilever Sliding Gate

ultimation-direct-logo-1024×323
web4less-large-logo

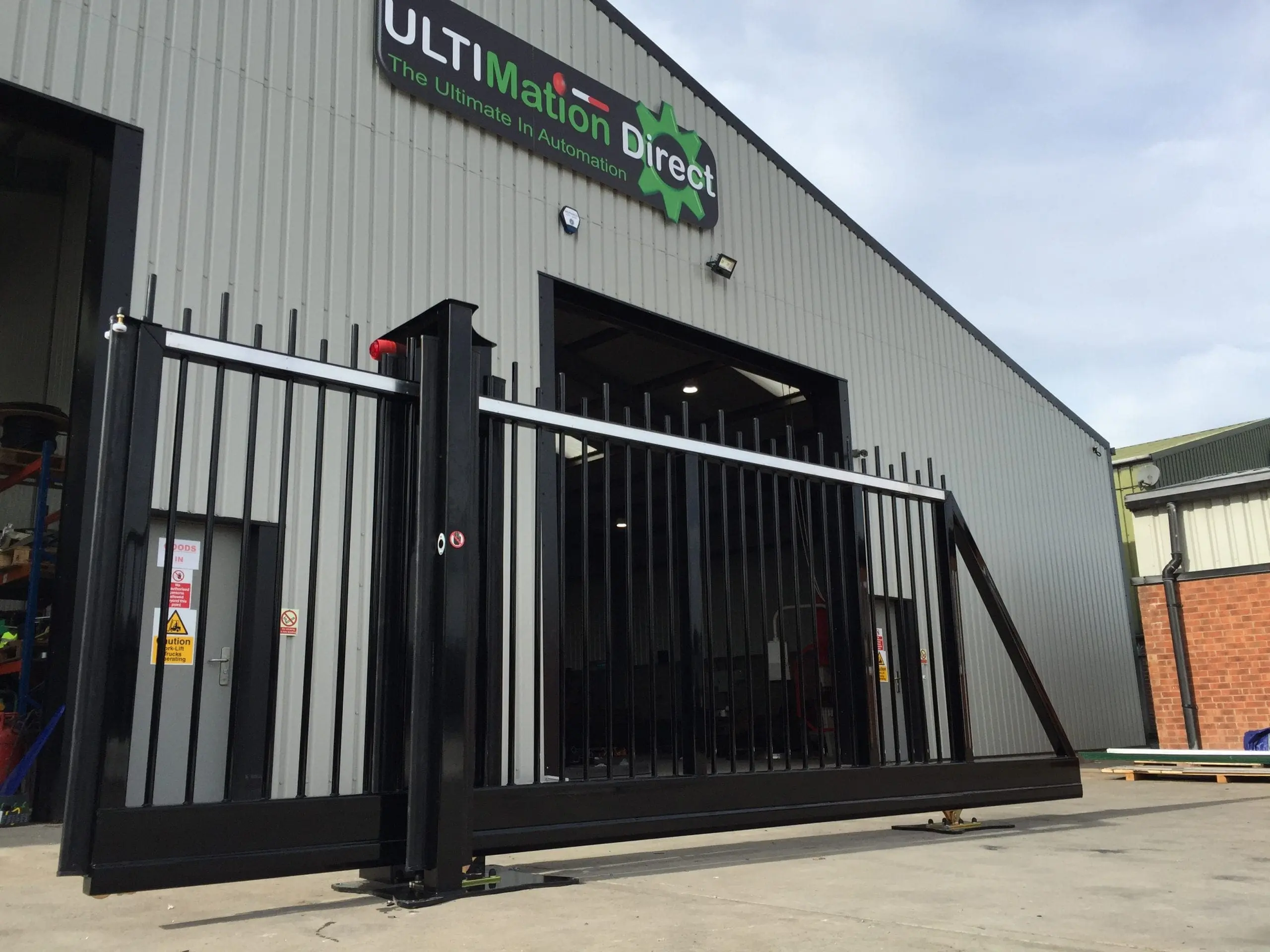

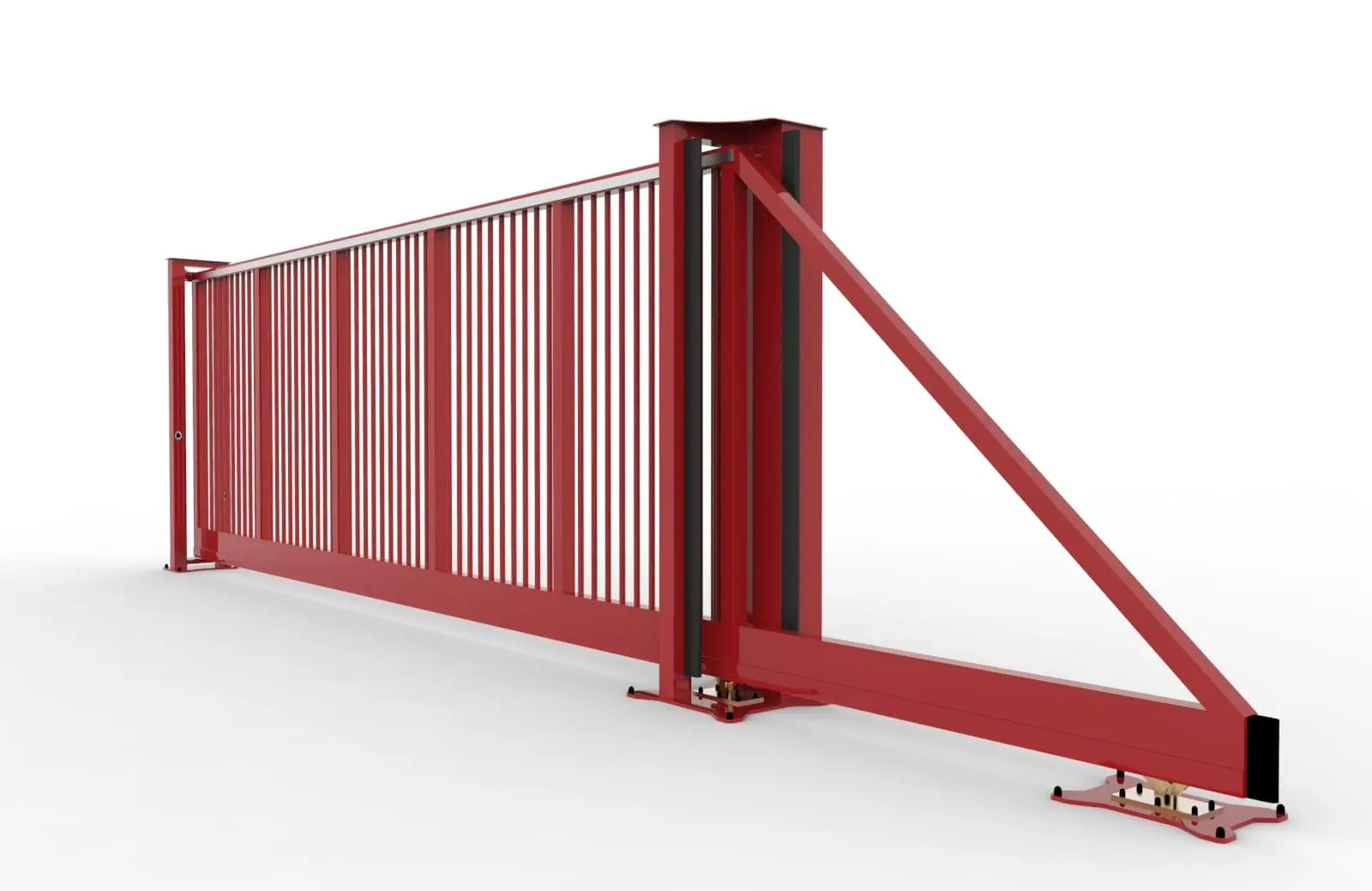

Our D5600 range of cantilever sliding gates are designed to provide robust and reliable security at bey vehicle entrances, They are manufactured from high strength steel, which provides a more robust product that aluminium and ensures a much longer service life. These gates are custom manufactured to the client’s individual requirements and are available in any size up to 6m clear width by 3.5m height.

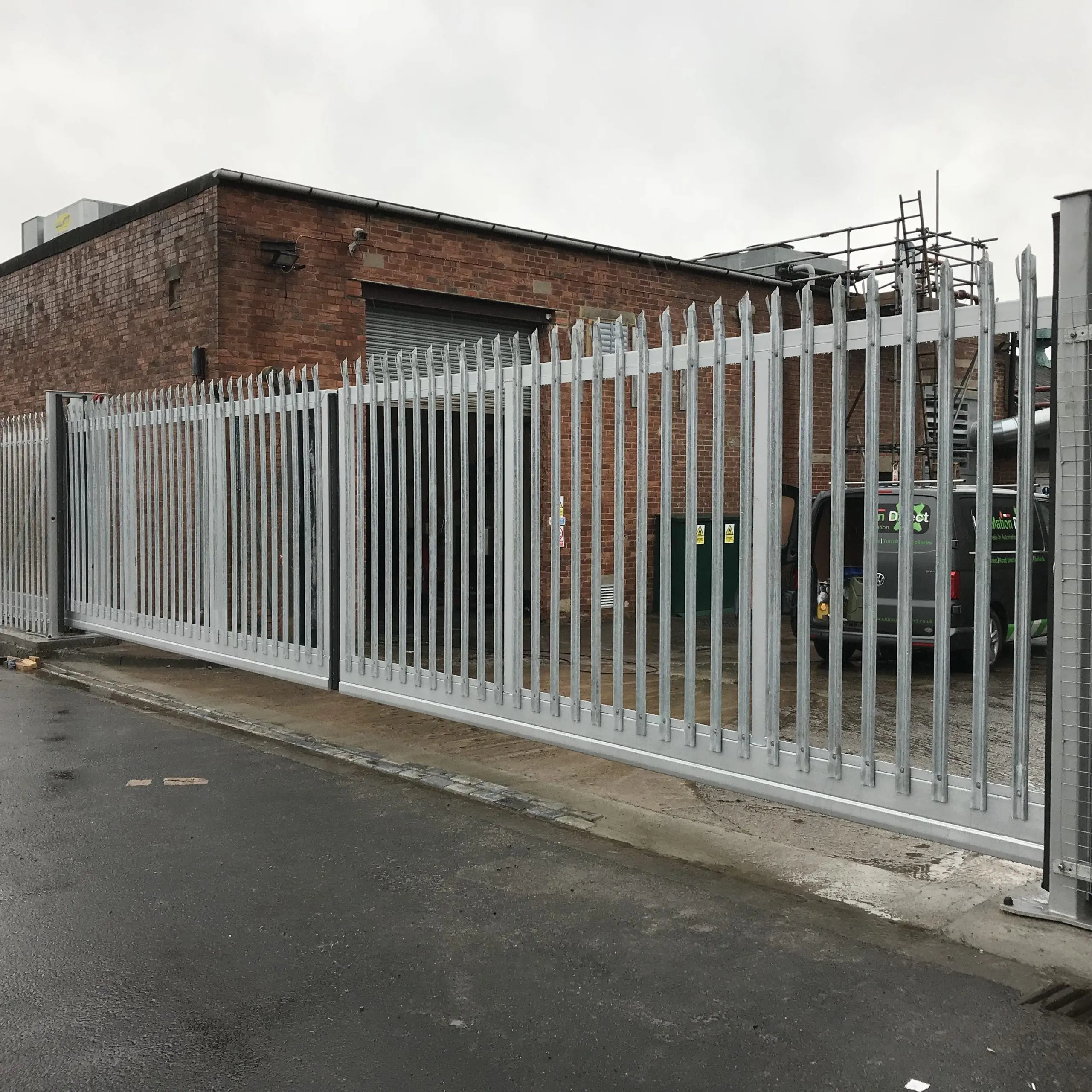

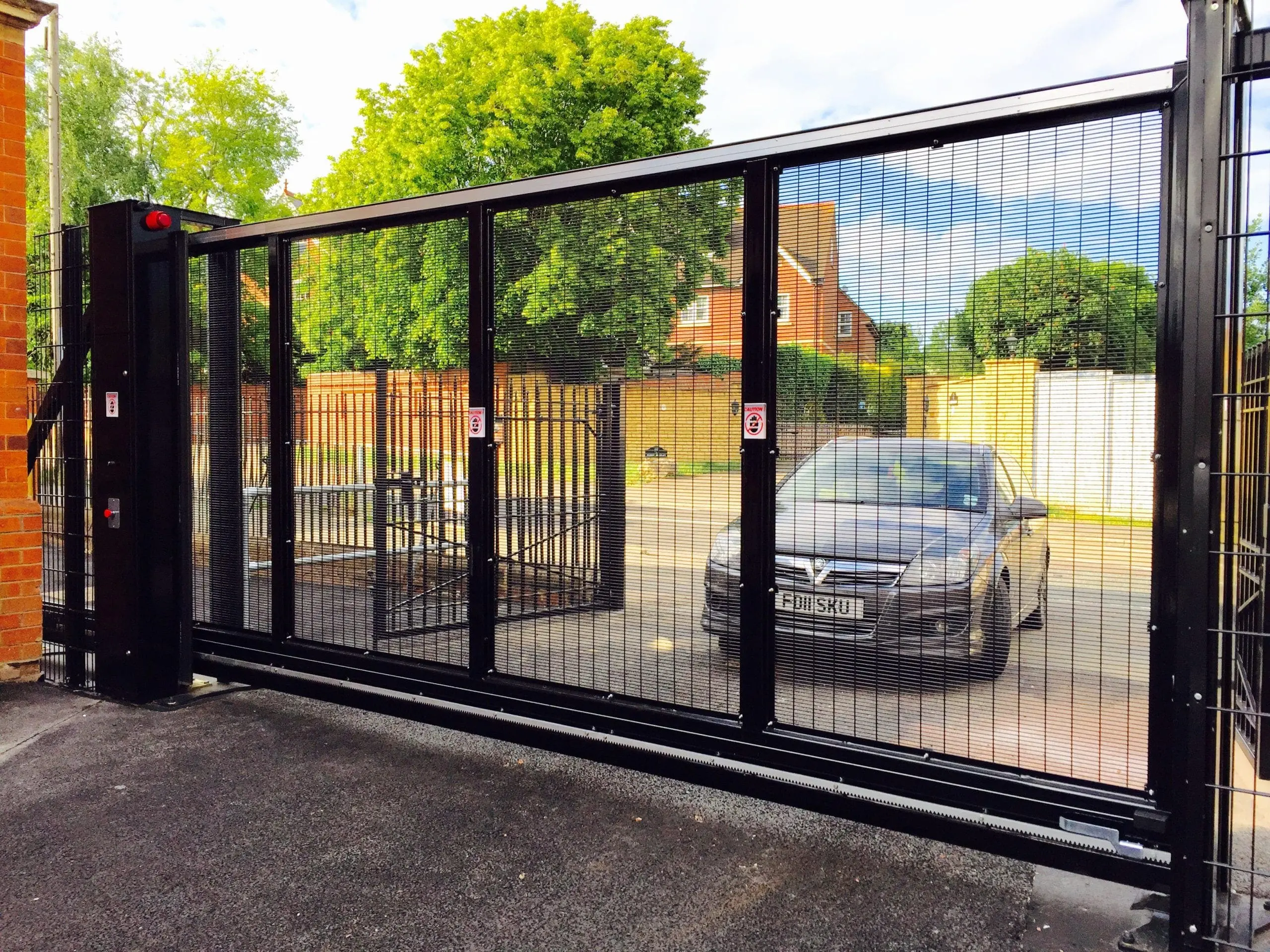

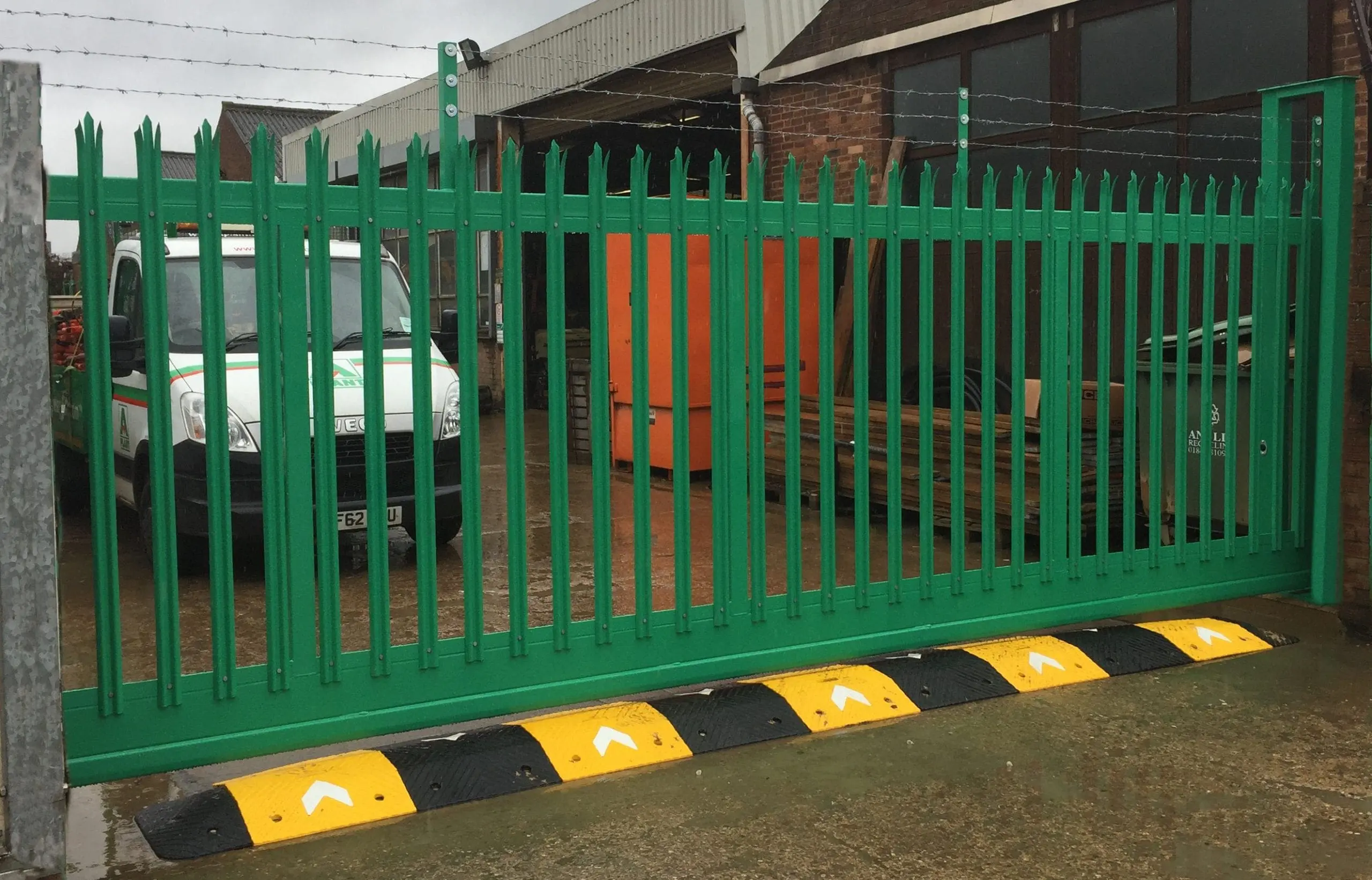

Both manually operated and automatic versions are available. They have an attractive appearance, which may be enhanced with a choice of infill options ranging from vertical bar, palisade, weldmesh or timber. Automatic gates are powered by a three phase, inverter driven motor / gearbox, and safety systems which fully comply with all current and evolving safety legislation and best practice.

web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo

Specification

Maximum Span:

6.0m

Maximum Height:

3.5m

Opening / Closing Times:

5 seconds per metre (Adjustable)

Drive Unit:

3 Phase motor and worried gearbox with rack and pinion final drive

Safety:

6 x Cat 3 edges, dual height photocells, Emergency Stop button and a flashing beacon / sounder.

Cycles:

100% Duty Cycle

Power Supply:

230VAC 50Hz 6 Amp

PLC

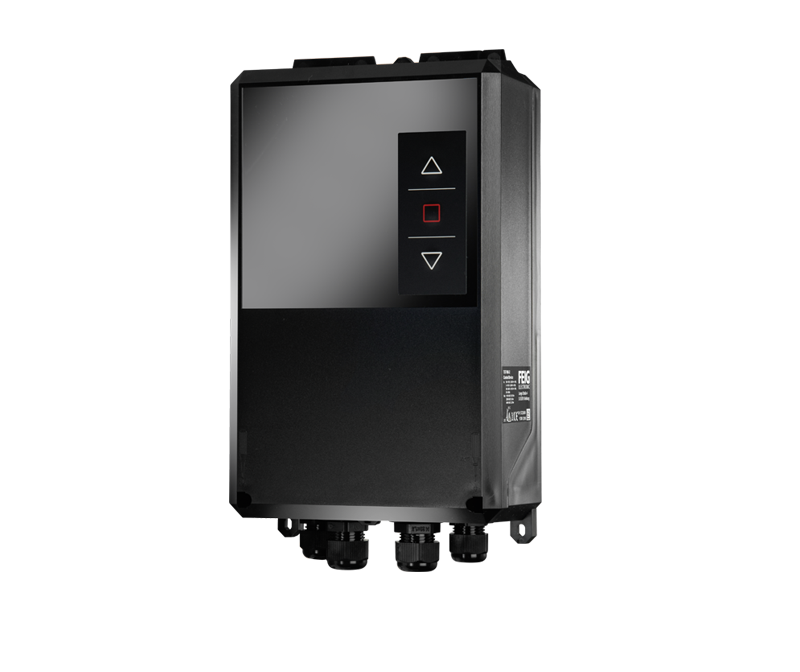

Plug and Play! All ULTIMation gates feature a Schenider PLC control system with inverter, all pre wired and factory tested ready for your connection to mains power supply.

web4less-large-logo

Optional Touch Screen

Our state of the art graphic display provides quick, intuitive touch screen programming and fault finding with integrated product manuals and wiring diagrams. We can also customise the display with your logo.

web4less-large-logo

Gate Drive

Reliable and almost silent in operation. D5600 gates are powered via an inverter driven motor and gearbox, providing 3 phase controllability with single phase economy.

web4less-large-logo

Safety Systems

Safety first. All our powered gates are equipped with class leading safety systems as standard. For the D5600, this includes 6 x Cat 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon / sounder. Working with our unique control software this provides the quickest response to a safety event in the industry. The D5600 also has flush fitted limit detectors and canted in safety edges at the drive post to minimize trapping hazards. You won’t find a safer gate.

web4less-large-logo

Gate Design

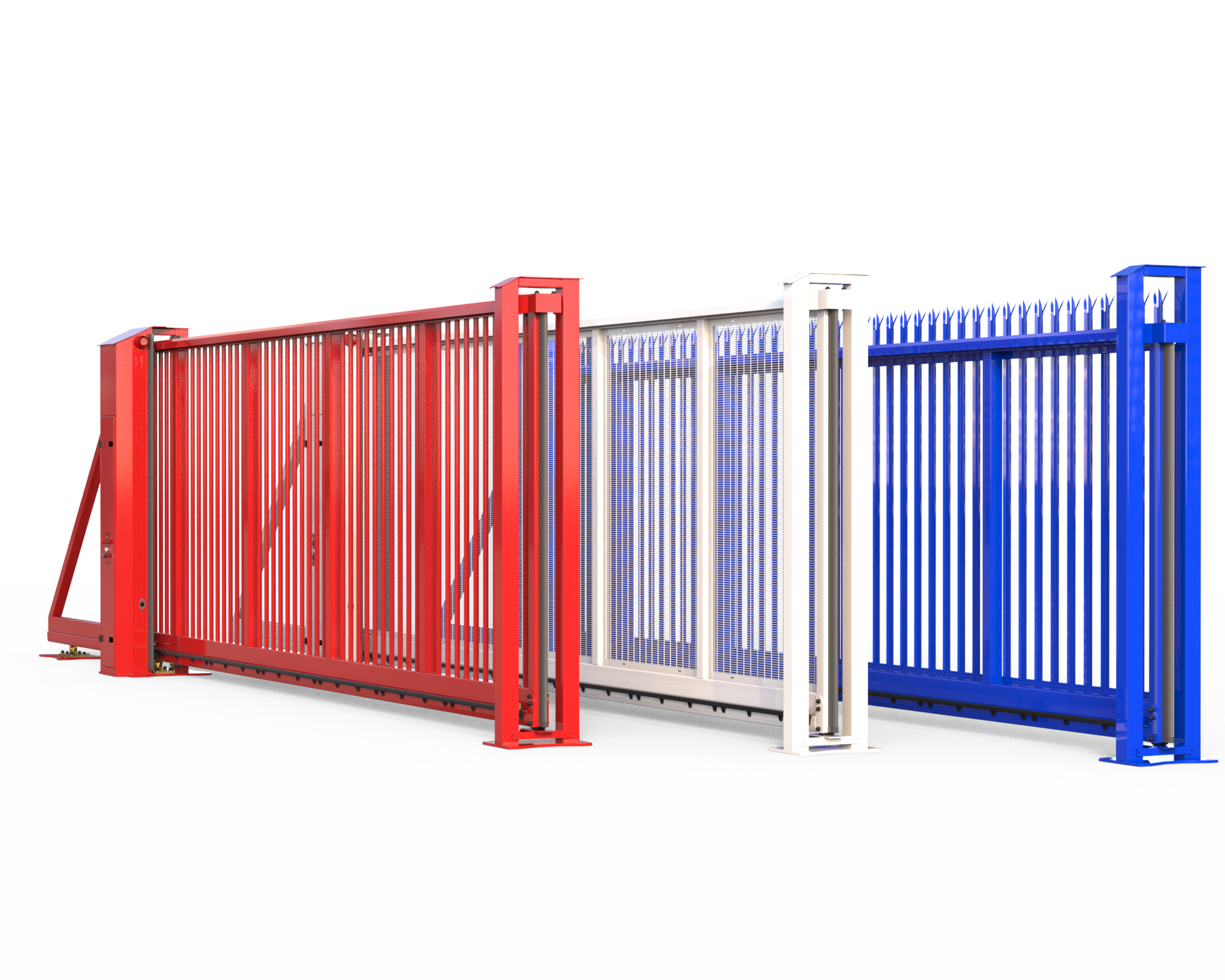

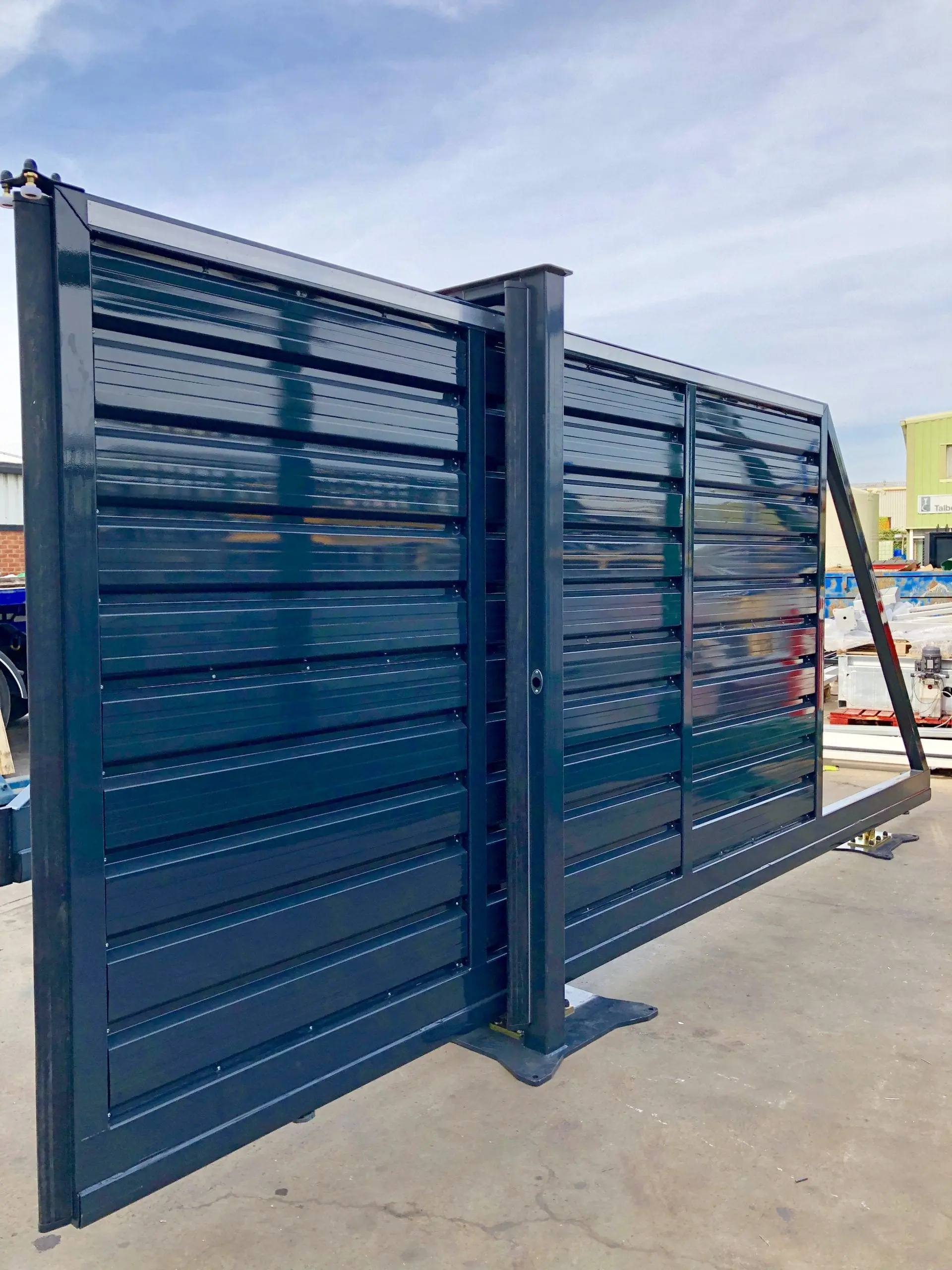

A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also if you specify vertical bar or sheet infill in a standard RAL reference, we don’t charge for non-standard colours!

web4less-large-logo

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
