D5800 Heavy Duty Cantilever Sliding Gate

ultimation-direct-logo-1024×323
web4less-large-logo

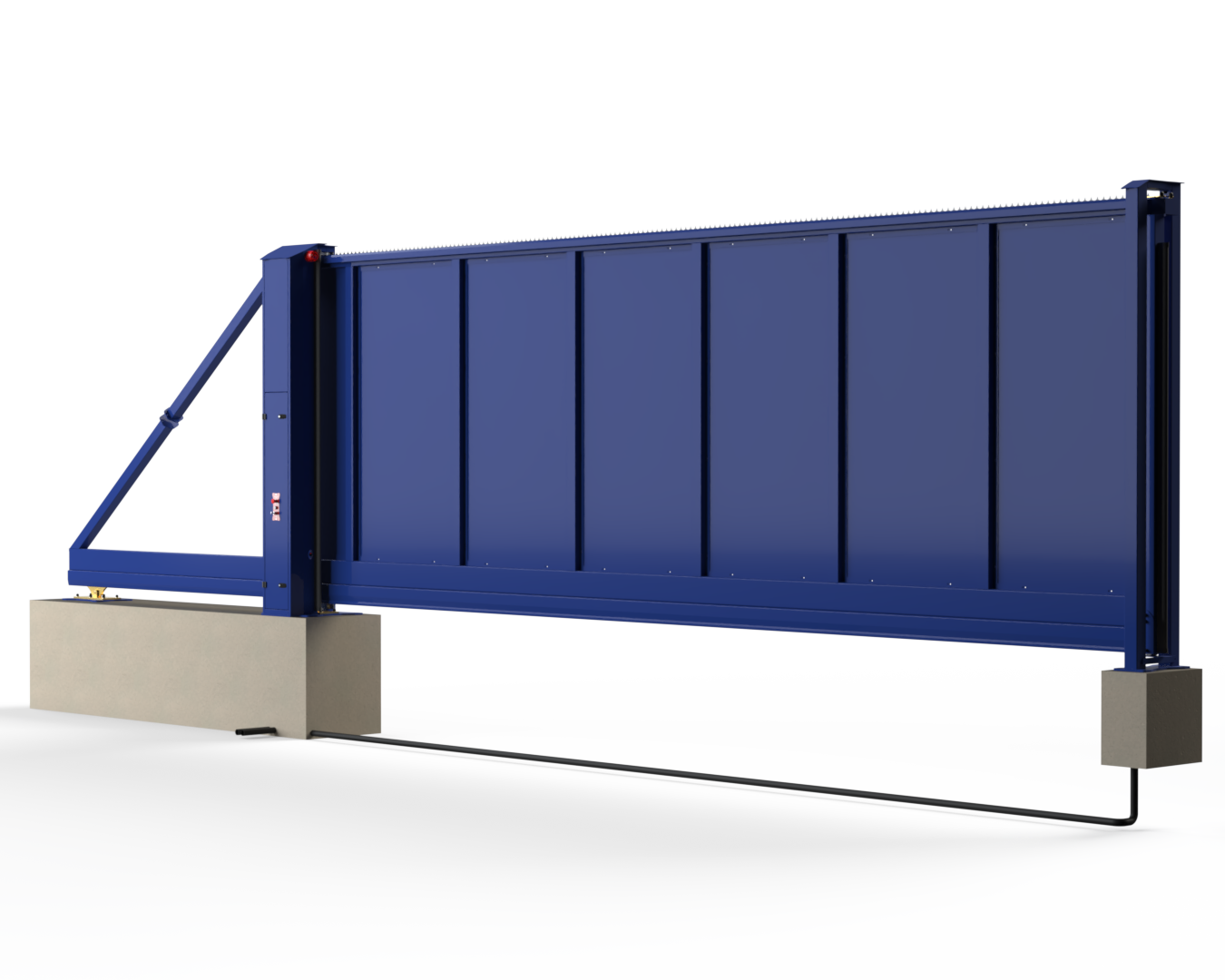

D5800 gates are a heavy duty version of our popular D5600 cantilevered automatic gates, and provide the optimum solutions for vehicle entrance control at high security locations or facilities which experience a high level of vehicle movements.

Gates are manufactured to suit customer’s individual requirements and sizes up to 12m width and 3.5m height are available as fully automated or manually operated types. The infill design of gates can be modified to reflect the needs of individual projects.

Fully compliant safety systems are fitted as standard, including Cat 3 safety edges and twin photocells to maintain compliance with evolving legislation.

web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo

Specification

Maximum Span:

13.0m

Maximum Height:

3.5m

Opening / Closing Times:

5 seconds per metre (Adjustable)

Drive Unit:

3 Phase motor and worried gearbox with rack and pinion final drive

Safety:

6 x Cat 3 edges, dual height photocells, Emergency Stop button and a flashing beacon / sounder.

Cycles:

100% Duty Cycle

Power Supply:

230VAC 50Hz 6 Amp

PLC

Plug and Play! All ULTIMation gates feature a Schenider PLC control system with inverter, all pre wired and factory tested ready for your connection to mains power supply.

web4less-large-logo

Optional Touch Screen

Our state of the art graphic display provides quick, intuitive touch screen programming and fault finding with integrated product manuals and wiring diagrams. We can also customise the display with your logo.

web4less-large-logo

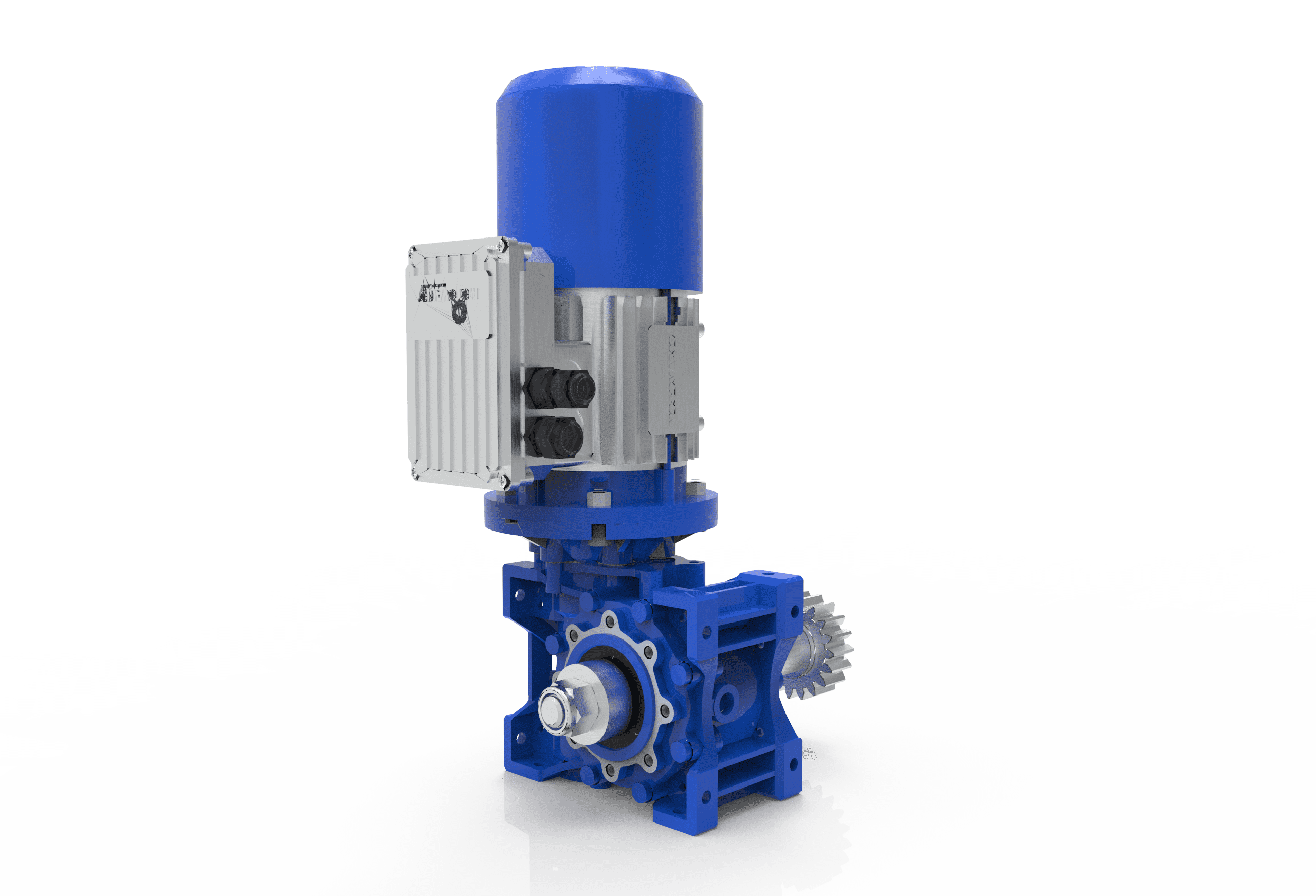

Gate Drive

Reliable and almost silent in operation. D5800 gates are powered via an inverter driven motor and gearbox, providing 3 phase controllability with single phase economy.

web4less-large-logo

Safety Systems

Safety first. All our powered gates are equipped with class leading safety systems as standard. For the D5800, this includes 6 x Cat 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon / sounder. Working with our unique control software this provides the quickest response to a safety event in the industry. The D5800 also has flush fitted limit detectors and canted in safety edges at the drive post to minimize trapping hazards. You won’t find a safer gate.

web4less-large-logo

Gate Design

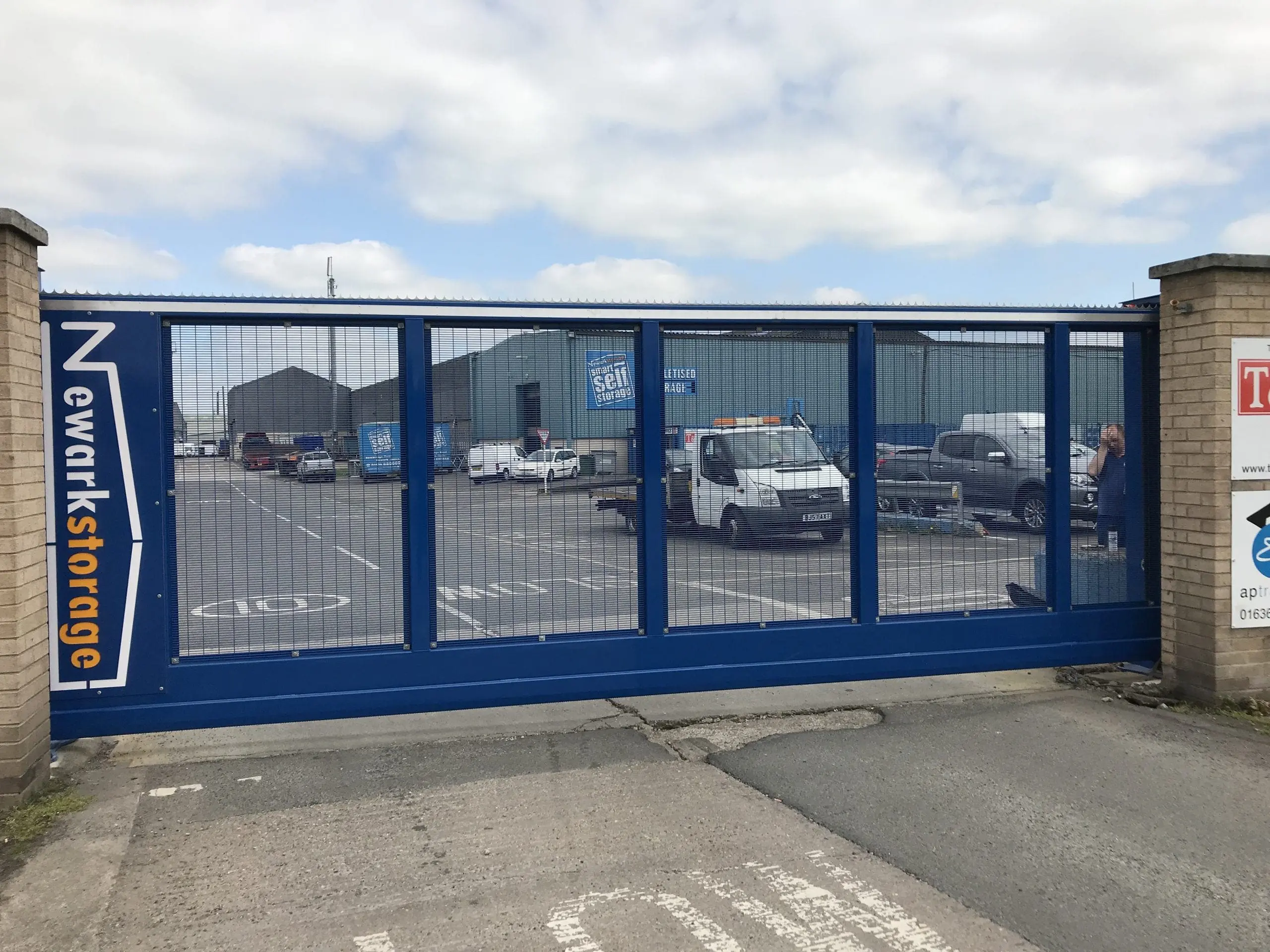

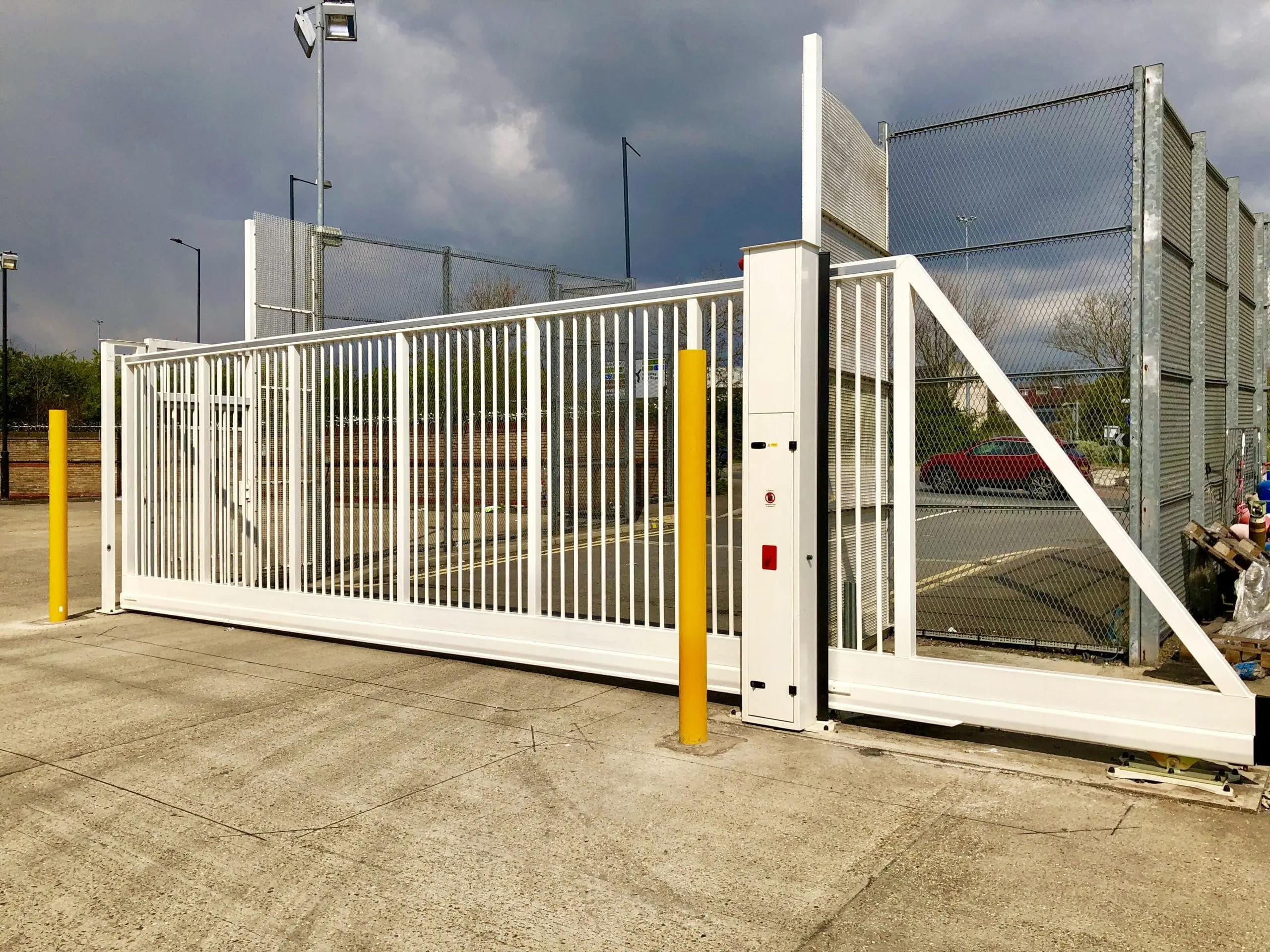

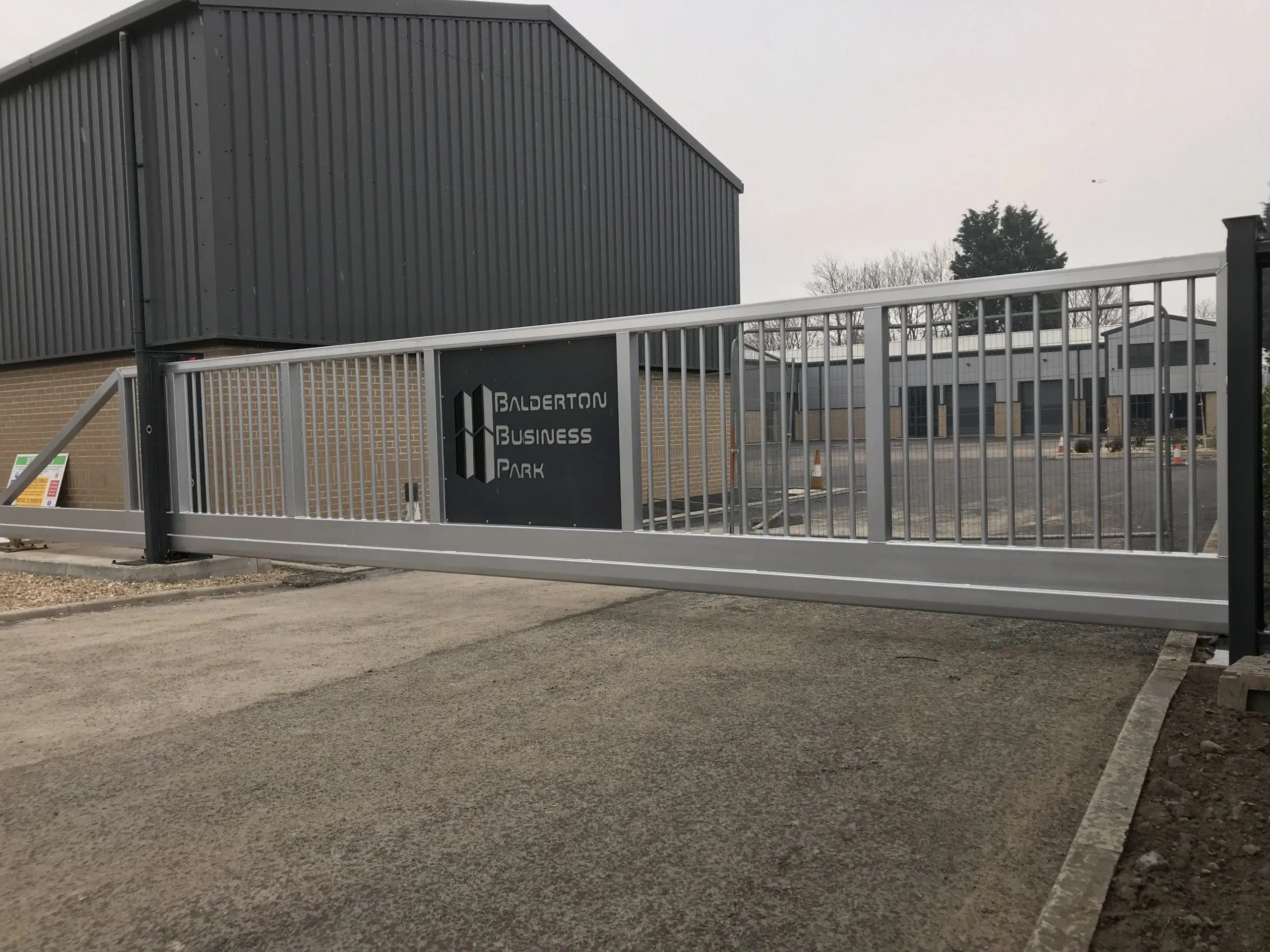

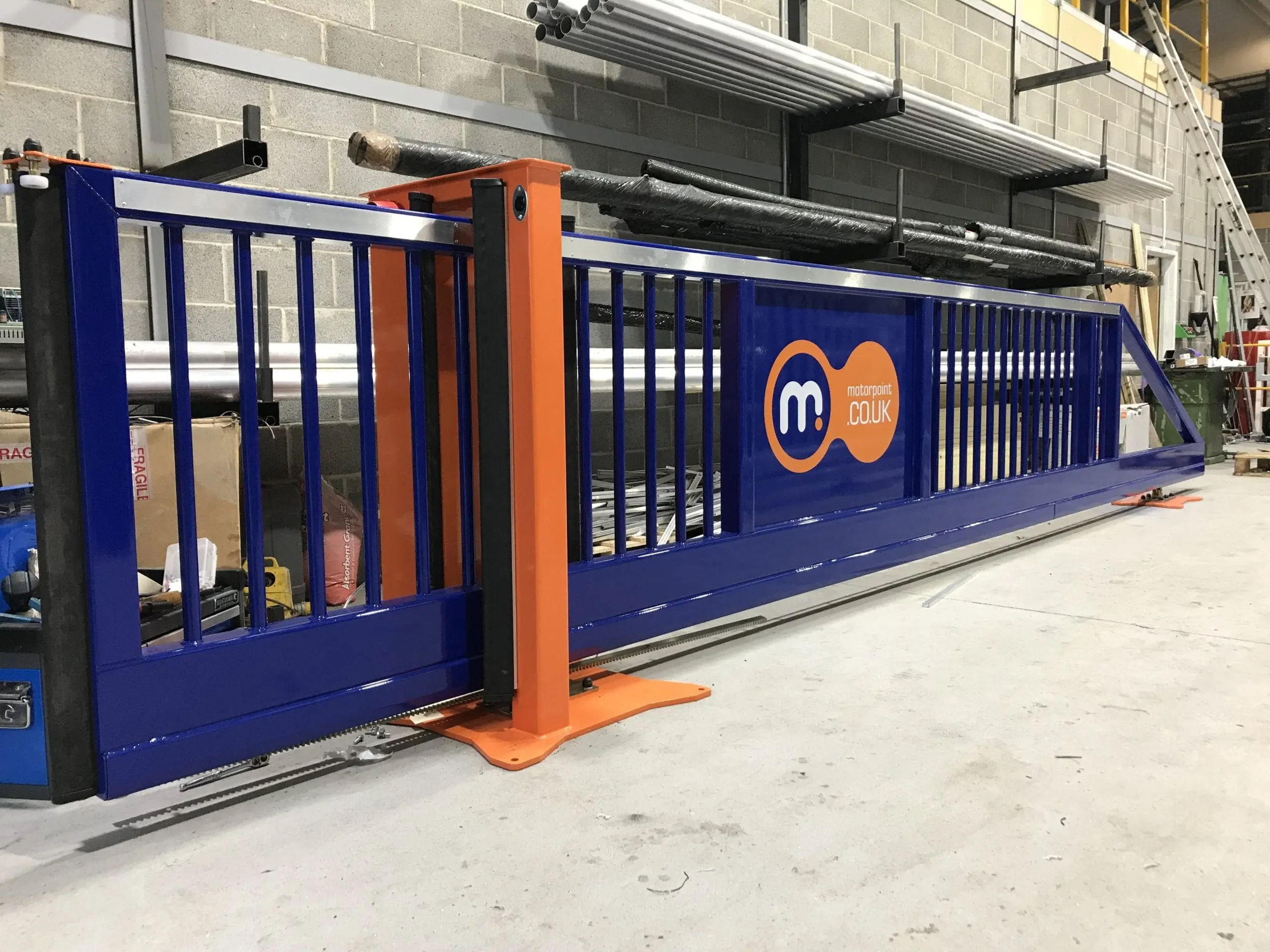

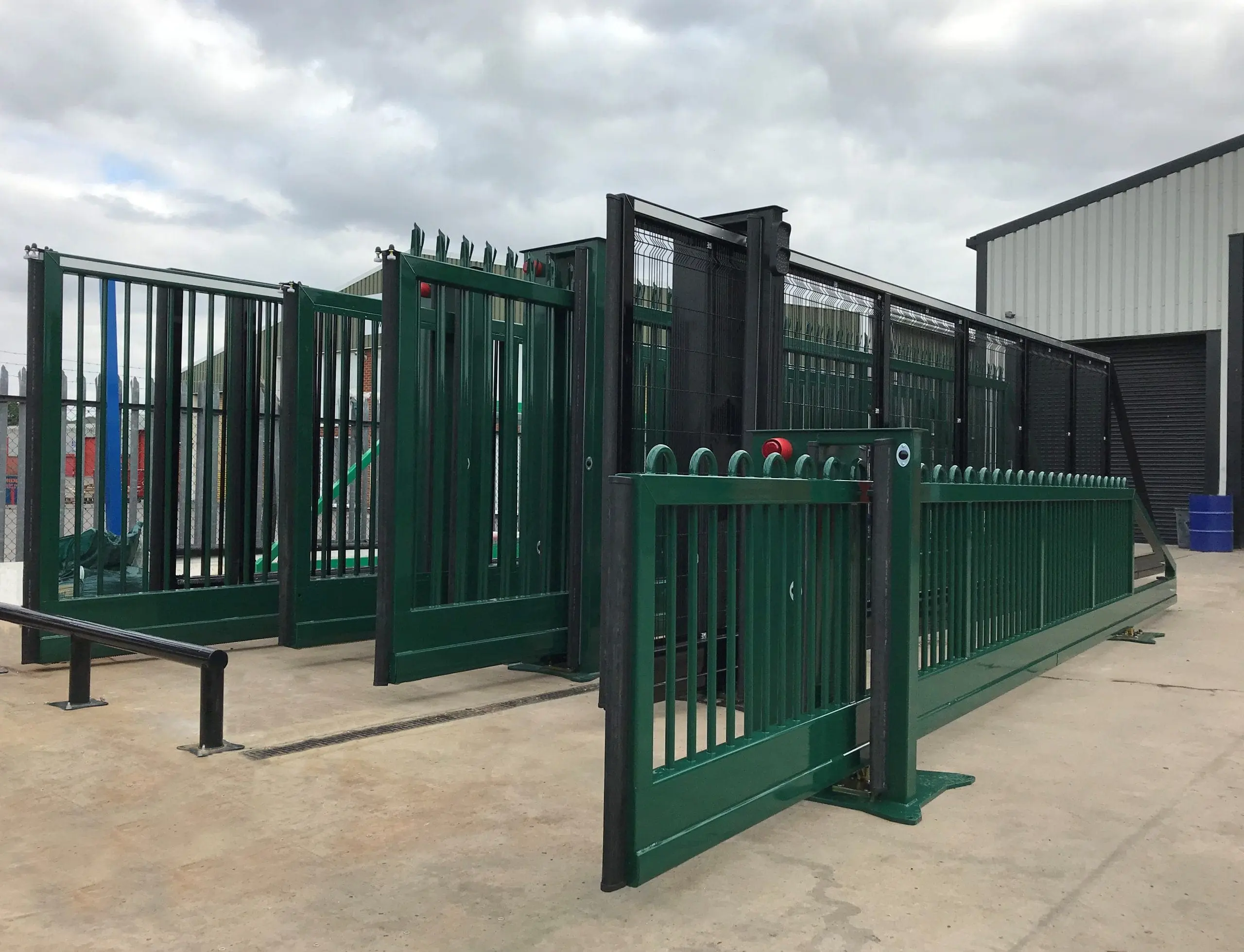

A wide range of gate infills are available, from our standard vertical tube, to weldmesh, palisade and timber cladding. We can even provide sheet steel with your logo cut out by water jet as shown. Also if you specify vertical bar or sheet infill in a standard RAL reference, we don’t charge for non-standard colours!

web4less-large-logo

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
