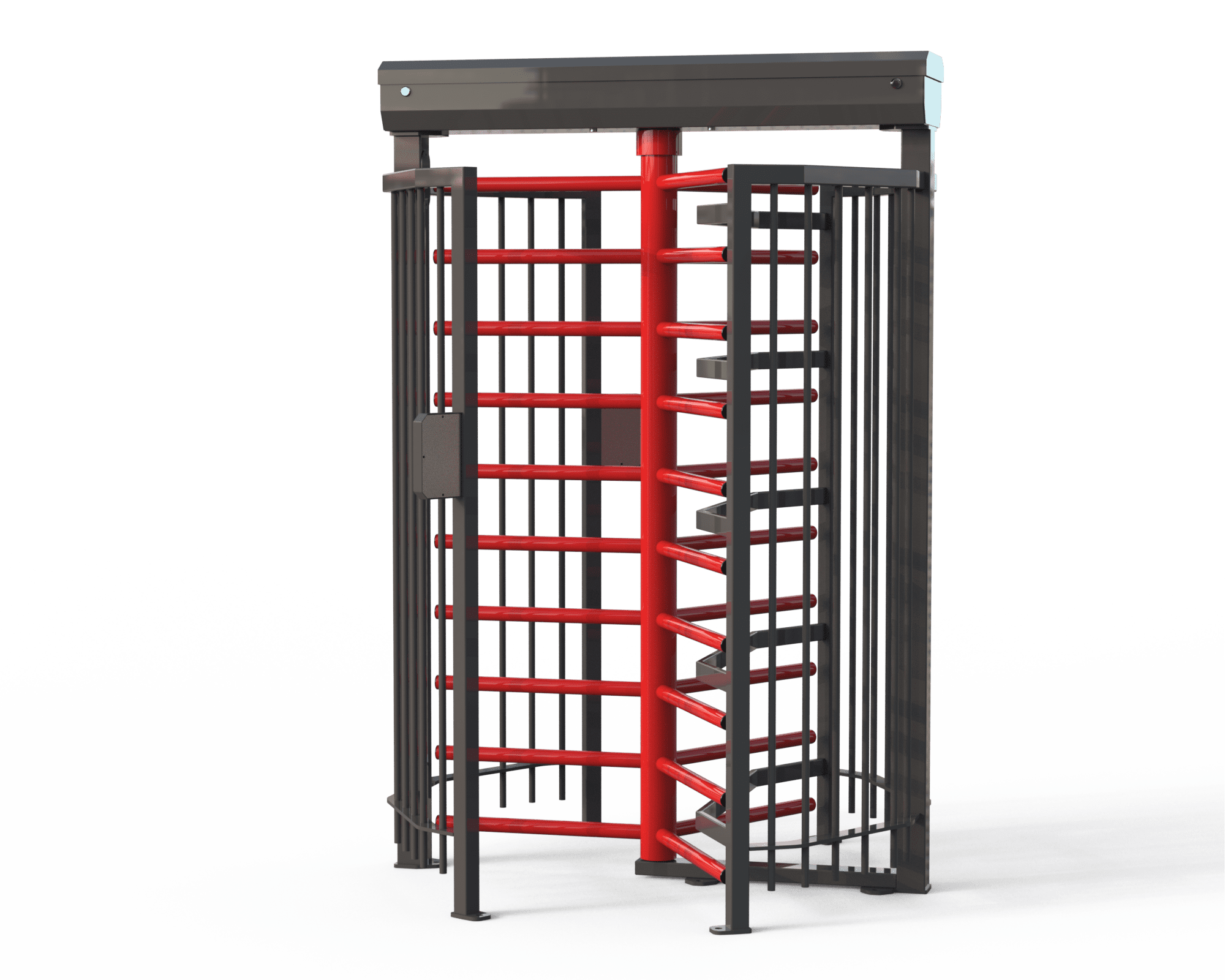

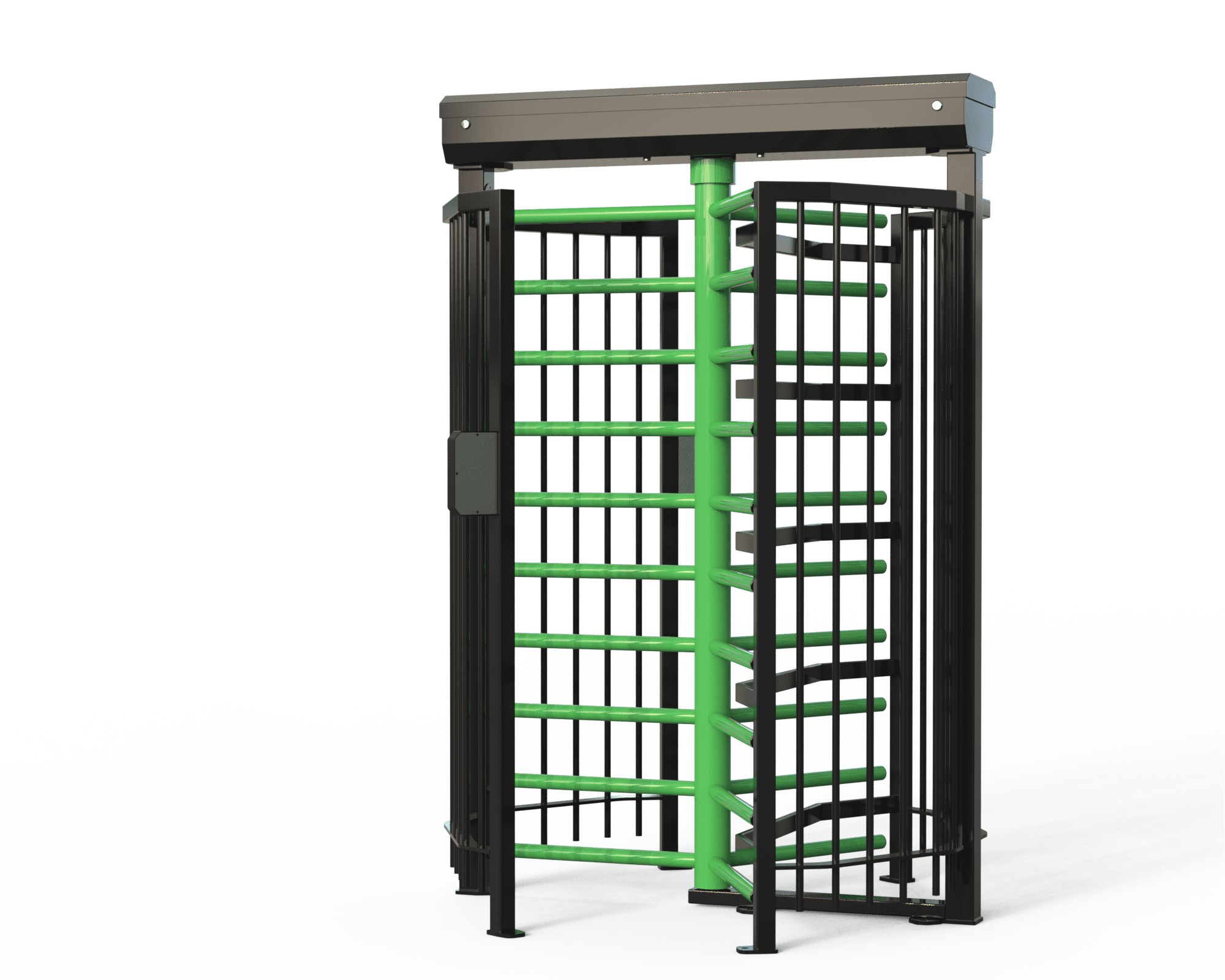

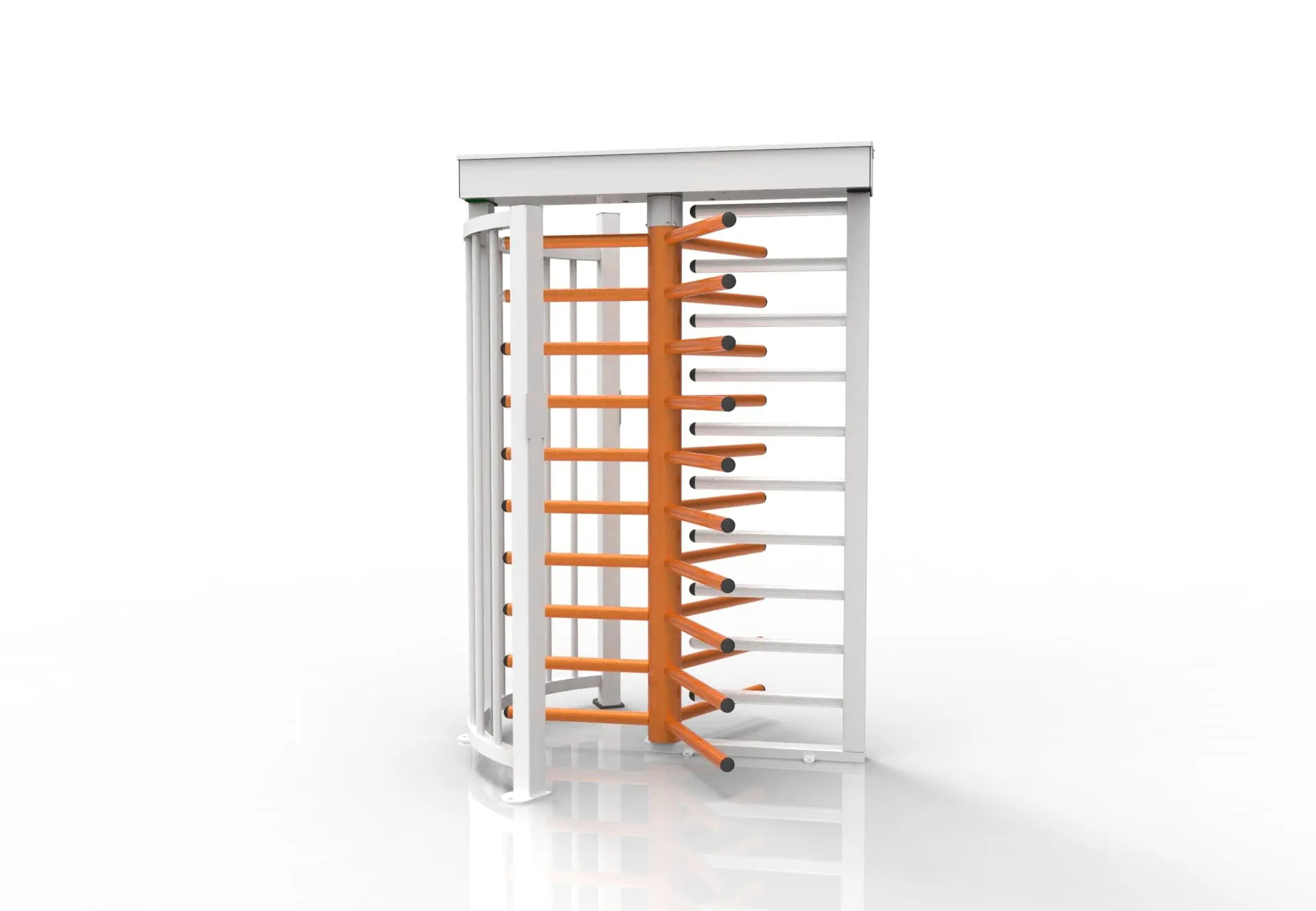

D4150 Full Height Turnstile

Ultimation Direct, Our Products - Gates, Barriers, Turnstiles. Traffic Control, Privacy Policy. Terms Conditions, Safety, Technology, Support, Contact Us Today

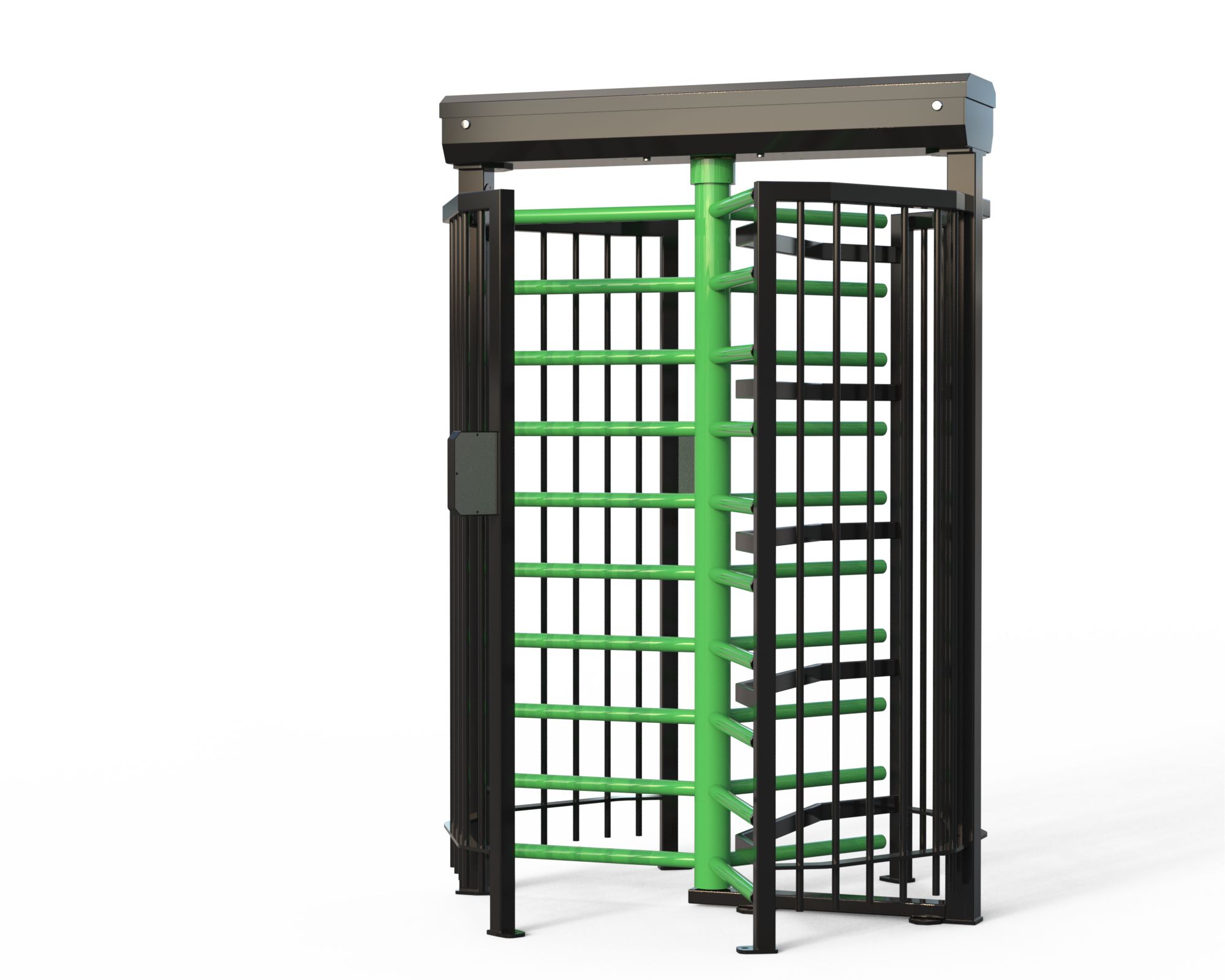

Designed to provide effective pedestrian access control to high traffic locations such as construction sites and factory entrances, the D4150 Full Height Turnstile is both attractive and economically priced.

These Full Height turnstiles have a solenoid operated mechanism mounted in the fully enclosed overhead structure, which allows the unit to be configured as bi-directional or single direction operation. The control system allows connection to any access control system or to a fire alarm to provide free rotation in the event of an alarm.

The Full Height Turnstile features a 120° three rotor design providing maximum space for pedestrian transit. Access control reader mounting plates are also provided at no extra cost to both sides of the turnstile. The unit is powder coated for maximum longevity, and is available in a wide range of standard colours. For construction sites and temporary colours, we offer a steel base with fork lift pockets to allow turnstiles to be relocated.

ULTIMATION SAFETY

Ultimation Direct, Our Products - Gates, Barriers, Turnstiles. Traffic Control, Privacy Policy. Terms Conditions, Safety, Technology, Support, Contact Us Today

Power Supply

230V, 50Hz

Finish

Primed / powder coated

Dimensions

1520mm x 1360mm x 2230mm

Control Panel

PLC

Clear head Height

2070mm

Clear Walkway

600mm Width

Configuration

120° 3 arm rotor

Plc

Housed in a lockable overhead enclosure, the PLC controlled bi-directional mechanism allows one passage per activation, and may be locked or set to free movement in either or both direction.

Finish

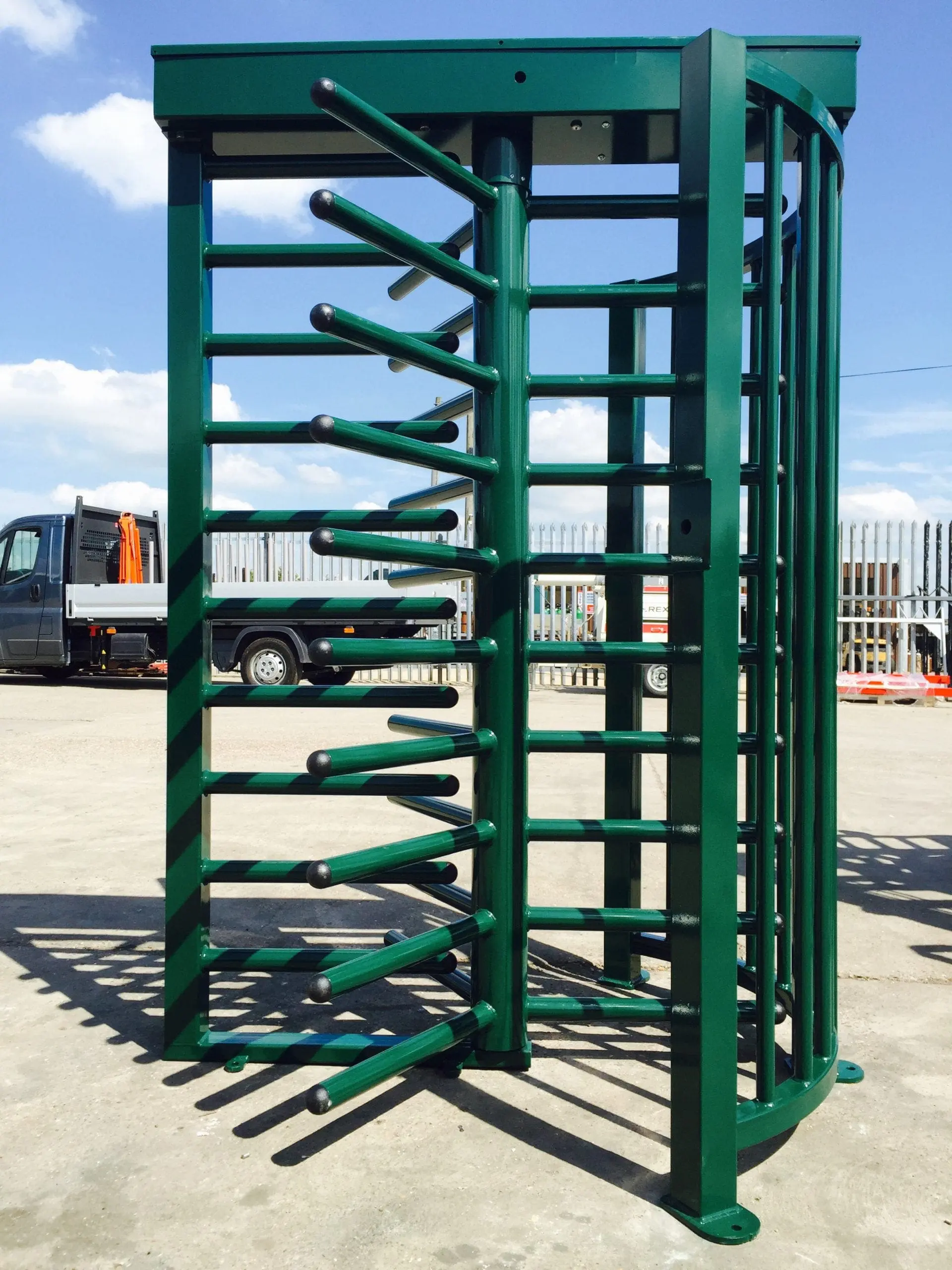

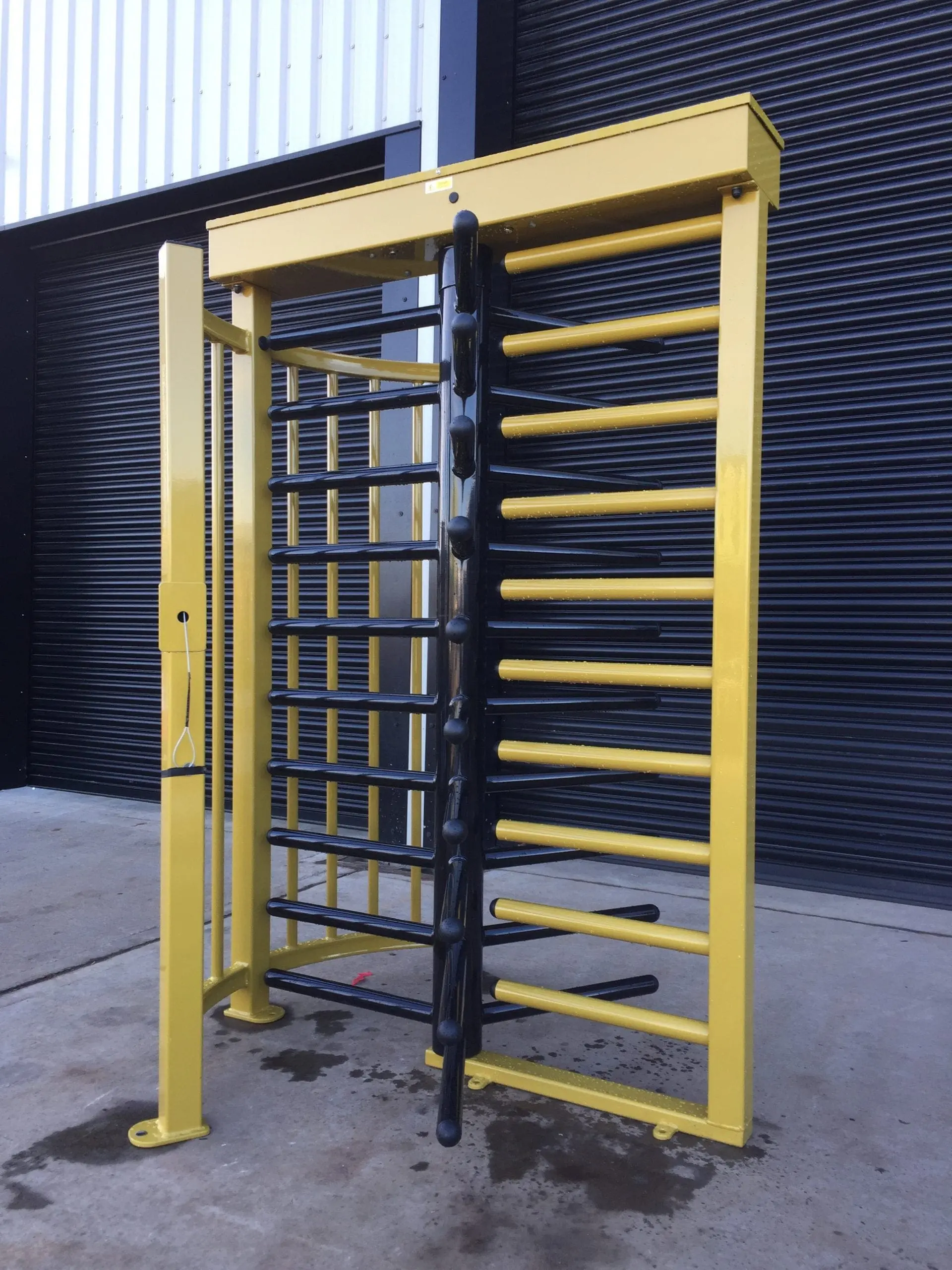

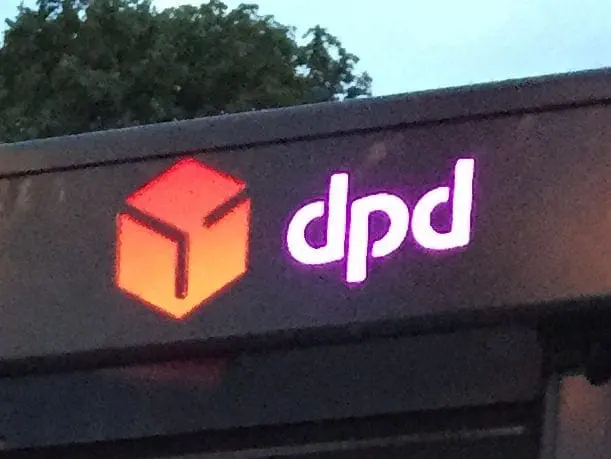

D4150 turnstiles are powder coated in any standard RAL Colour at no additional charge and you can even specify the rotor in a contrasting colour to the frame. LED Backlit logos can be water jet cut to the overhead enclosure at additional cost.

Access Control

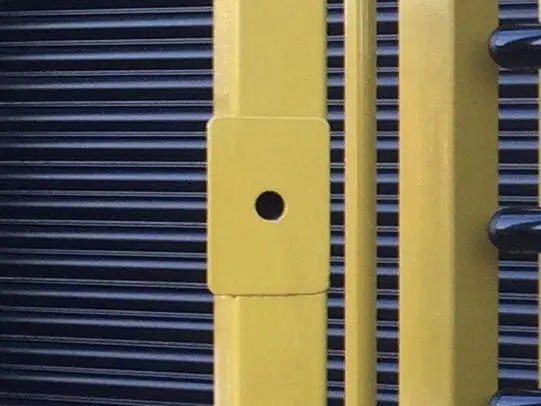

Small mounting plates are fitted as standard to enable fitting of most proximity readers. Upgrades may be specified if you need to mount intercoms or larger items.

Construction

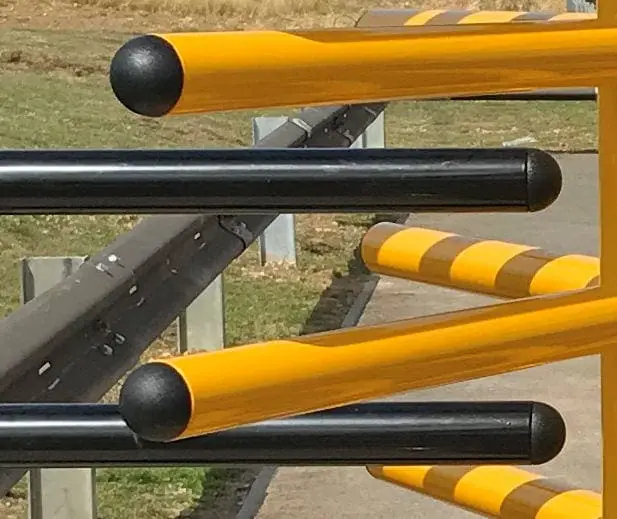

The frame and rotor are fully welded heavy duty steel components for maximum strength and longevity, and the rotor pivots on a sealed roller bearing. The rotor arms are 40mm diameter arranged in 120° configuration for easy pedestrian access.

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
