D380  Heavy Duty Swing Gate Drive

ultimation-direct-logo-1024×323
web4less-large-logo

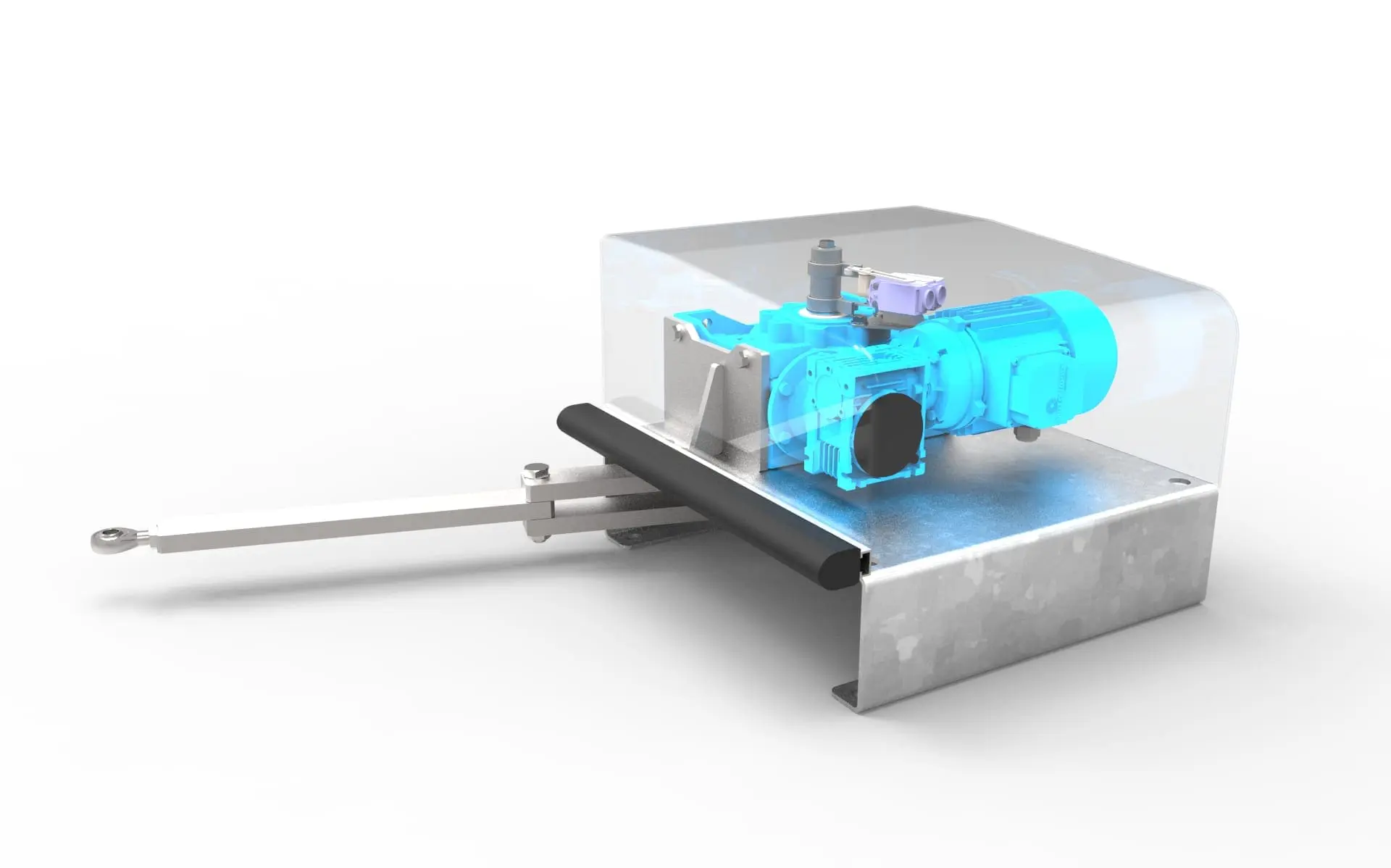

A surface mounted drive unit the D380 is our most powerful drive system. Designed to operate gate leaves up to 8m and 1600kg. Supplied in a steel bolt down enclosure with pre-fitted drive arms, the unit is powered by a 3 phase motor, driven by a 240V single phase supply via an inverter for smooth reliable operation. a plc control system is supplied which enables full programming of movement and safety parameters and allows connection to any access control system.

Specification

Max Gate Weight:

1.5 tonne

Control Panel:

PLC and inverter driven

Speed:

8 – 12 secs (Adjustable)

Operating Times:

1.5 – 8 seconds

Max Leaf Width:

8.0M

Limits:

Mech Roller type

Slowdown:

Yes (Adjustable)

Voltage:

230V

Motor Size:

0.37Kw (3 phase)

Locking:

Mechanical

Aux Supply:

24vdc 1 AMP

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
