D4350 3/4 Height Turnstile

ultimation-direct-logo-1024×323
web4less-large-logo

Originally designed for an underground tunnel, the 3/4 height turnstile has become a popular option for applications where limited headroom precludes the use of traditional full height turnstiles, but where the client requires a more secure alternative to half height units. The reduced height allows turnstiles to be assembled in site access cabins, for example, and still allows the head mechanism to be accessed for maintenance purposes.

The fully welded steel construction is designed to provide an extremely robust product for extended use in high traffic applications.

The 3/4 height unit is available in the same colour combinations, logos and access control mounting solutions as our gull height units.

web4less-large-logo
web4less-large-logo

Specification

Power Supply:

230V, 50Hz

Finish:

Primed / powder coated

Control Panel:

PLC

Dimensions:

1575mm x 1445mm x 1900mm

Clear Walkway:

600mm Width

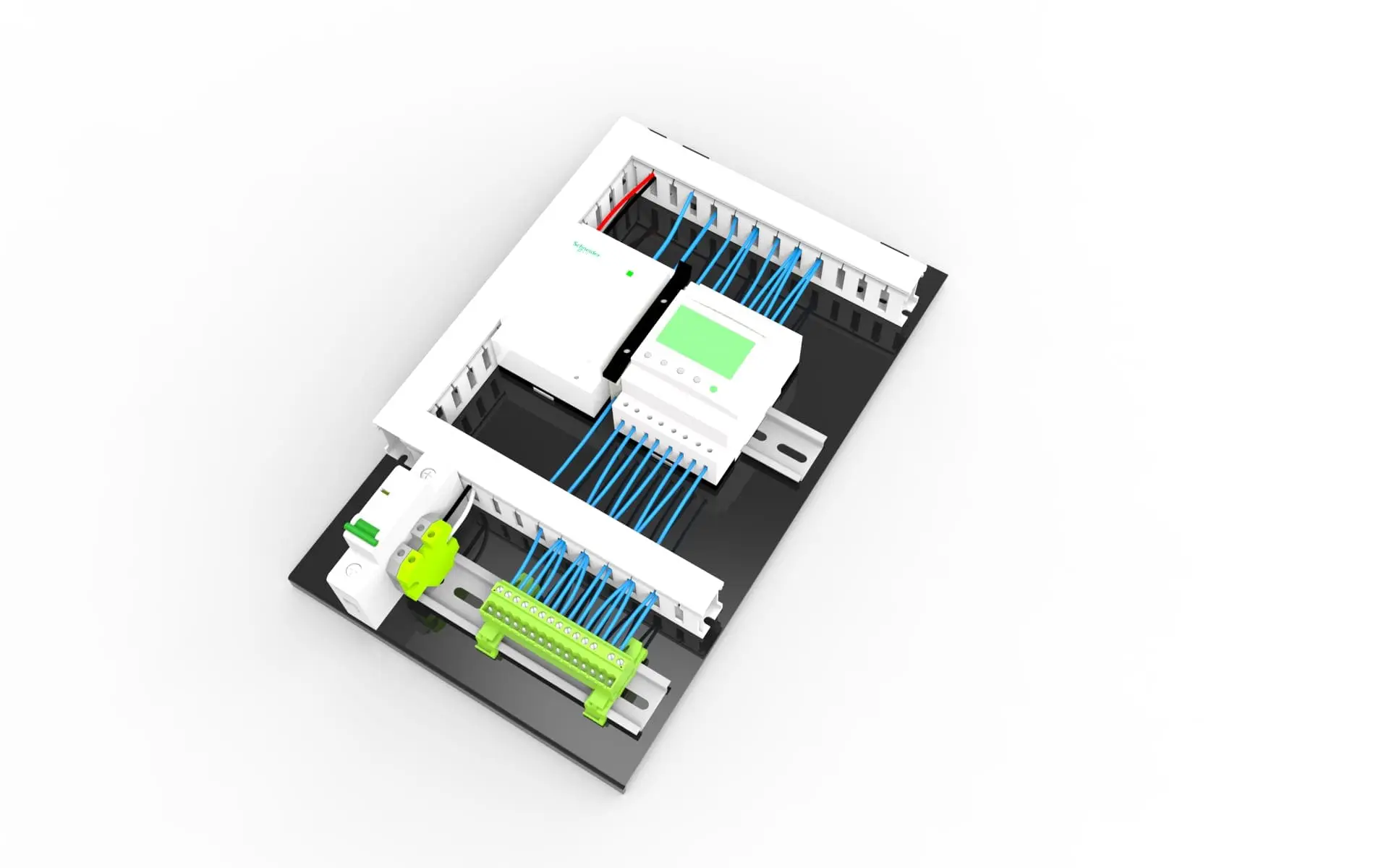

PLC

Housed in a lockable overheas enclosure, the PLC controlled bi-directional mechanism allows one passage per activation, and may be locked or set to free movement in either or both direction.

web4less-large-logo

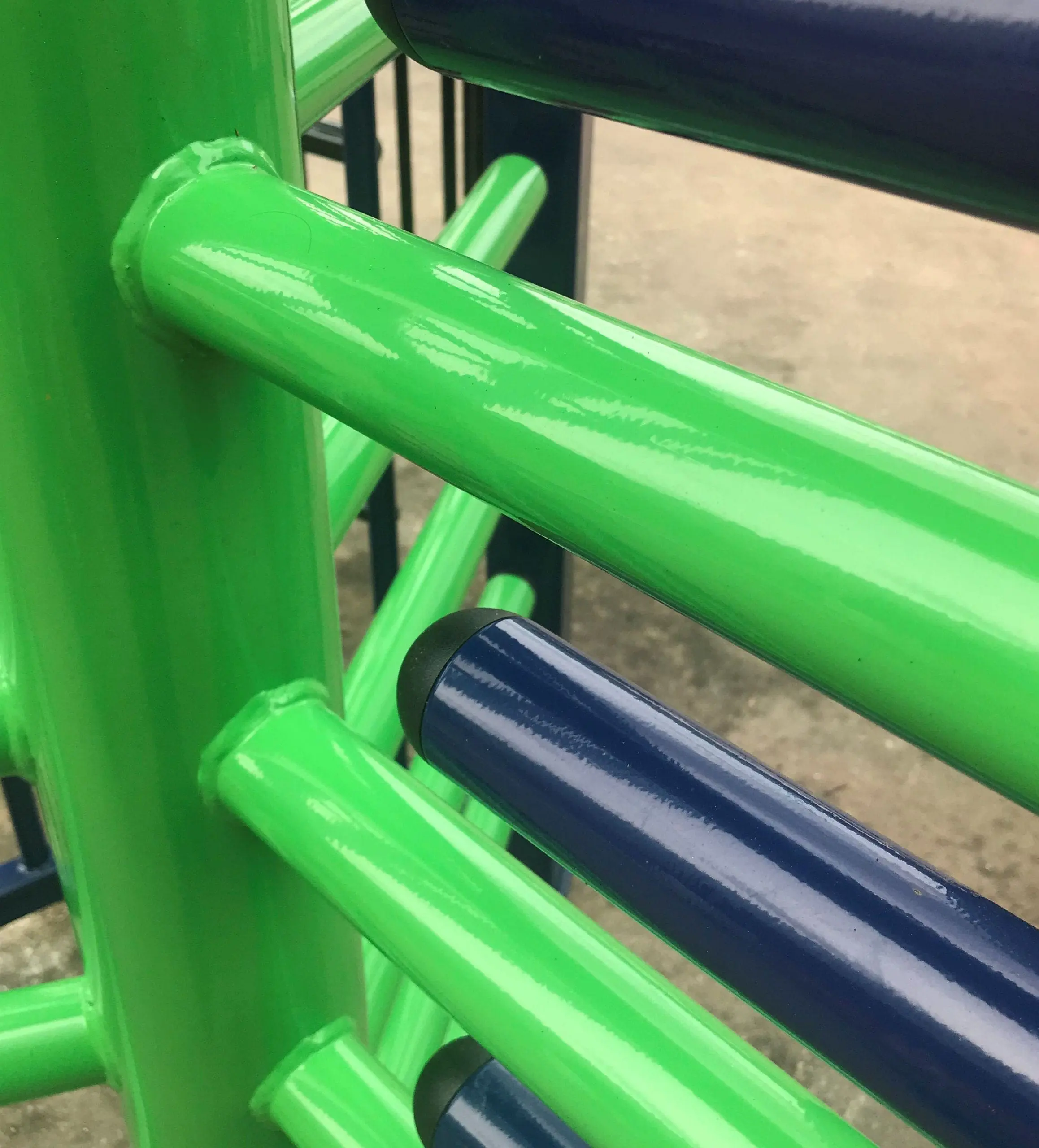

Finish:

D4350 turnstiles are powder coated in any standard RAL Colour at no additional charge and you can even specify the rotor in a contrasting colour to the frame. LED Backlit logos can be water jet cut to the overhead enclosure at additional cost.

web4less-large-logo

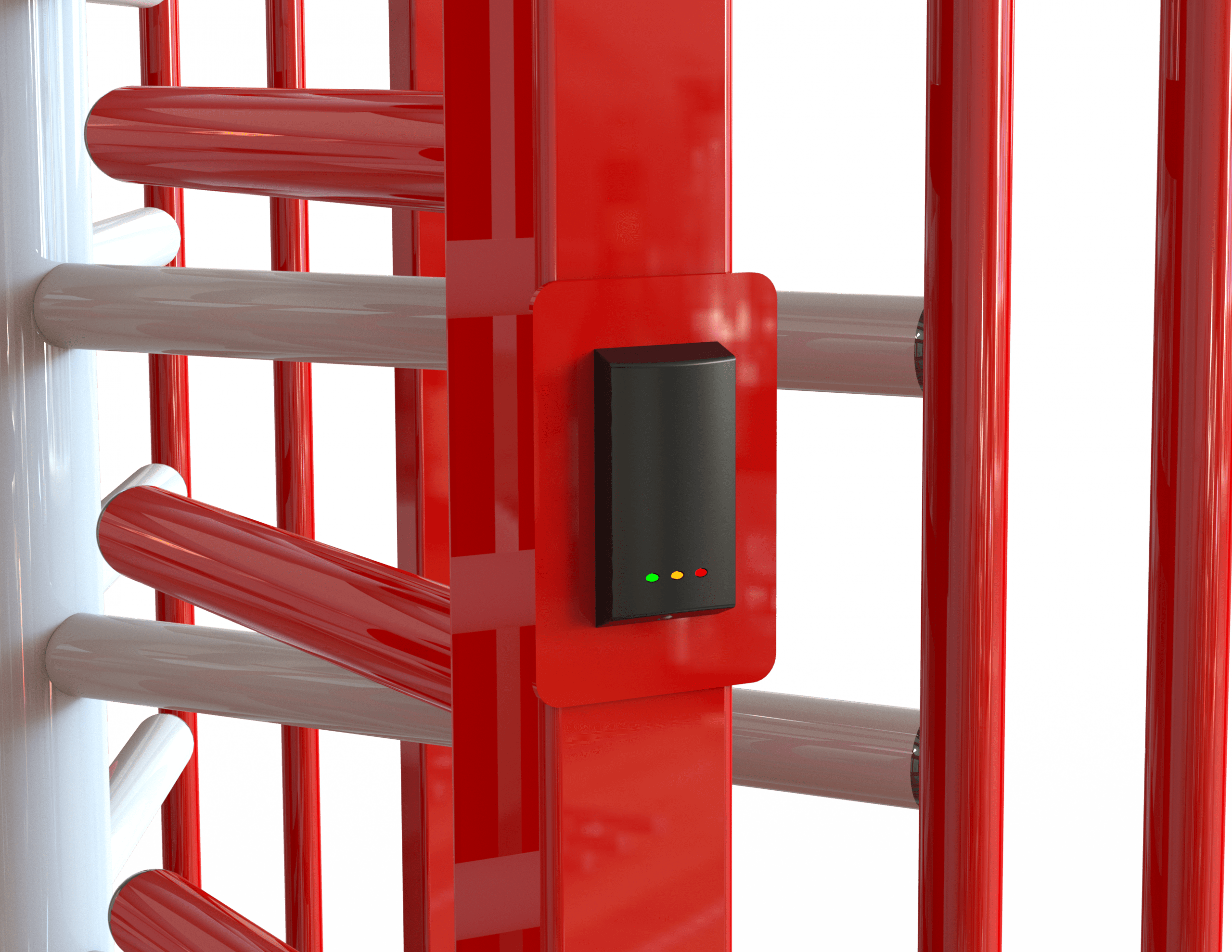

Access Control:

Small mounting plates are fitted as standard to enable fitting of most proximity readers. Upgrades may be specified if you need to mount intercoms or larger items.

web4less-large-logo

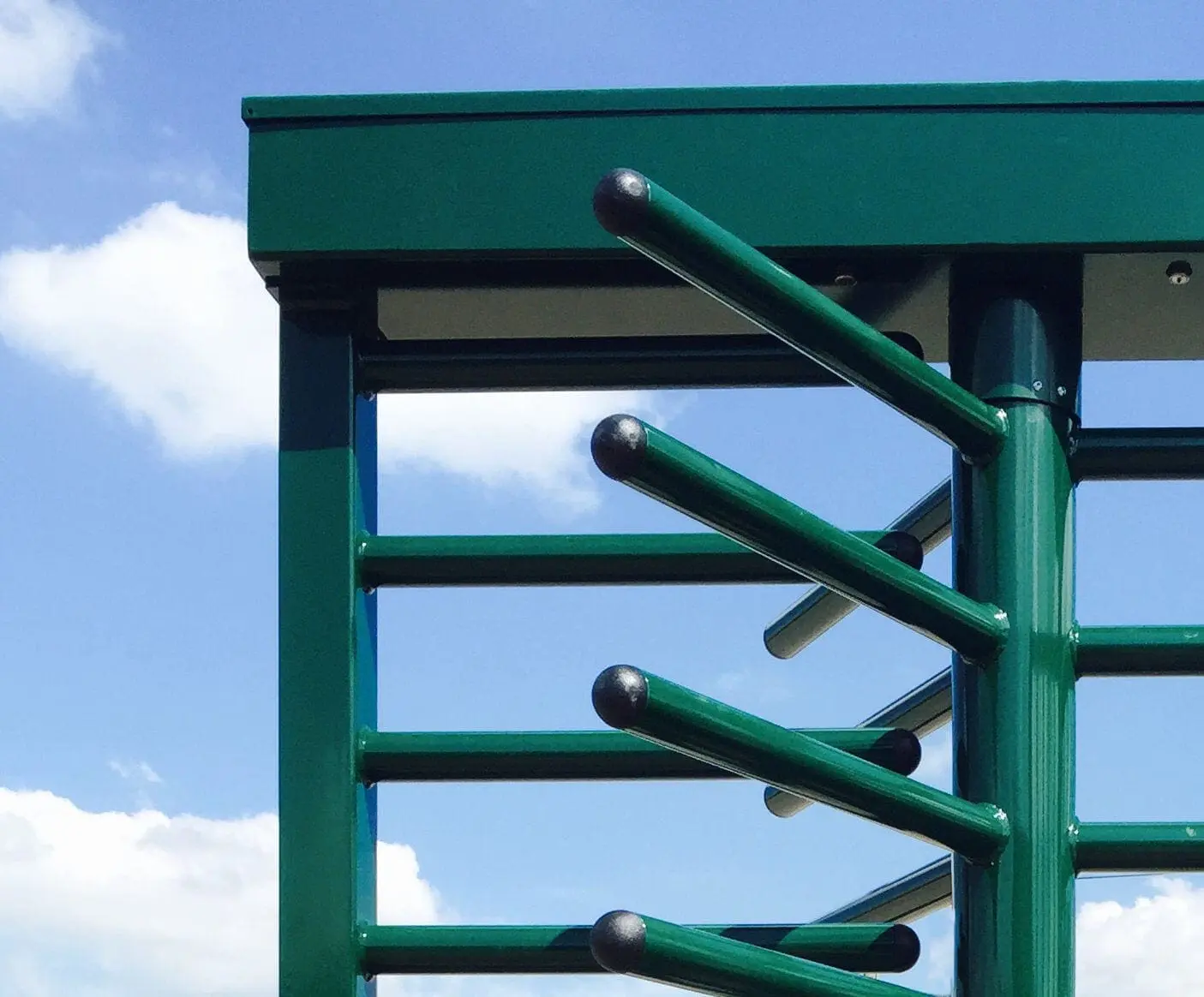

Construction:

The frame and rotor are fully welded heavy duty steel components for maximum strength and longevity, and the rotor pivots on a sealed roller bearing. The rotor arms are 40mm diameter arranged in 120° configuration for easy pedestrian access.

web4less-large-logo

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
