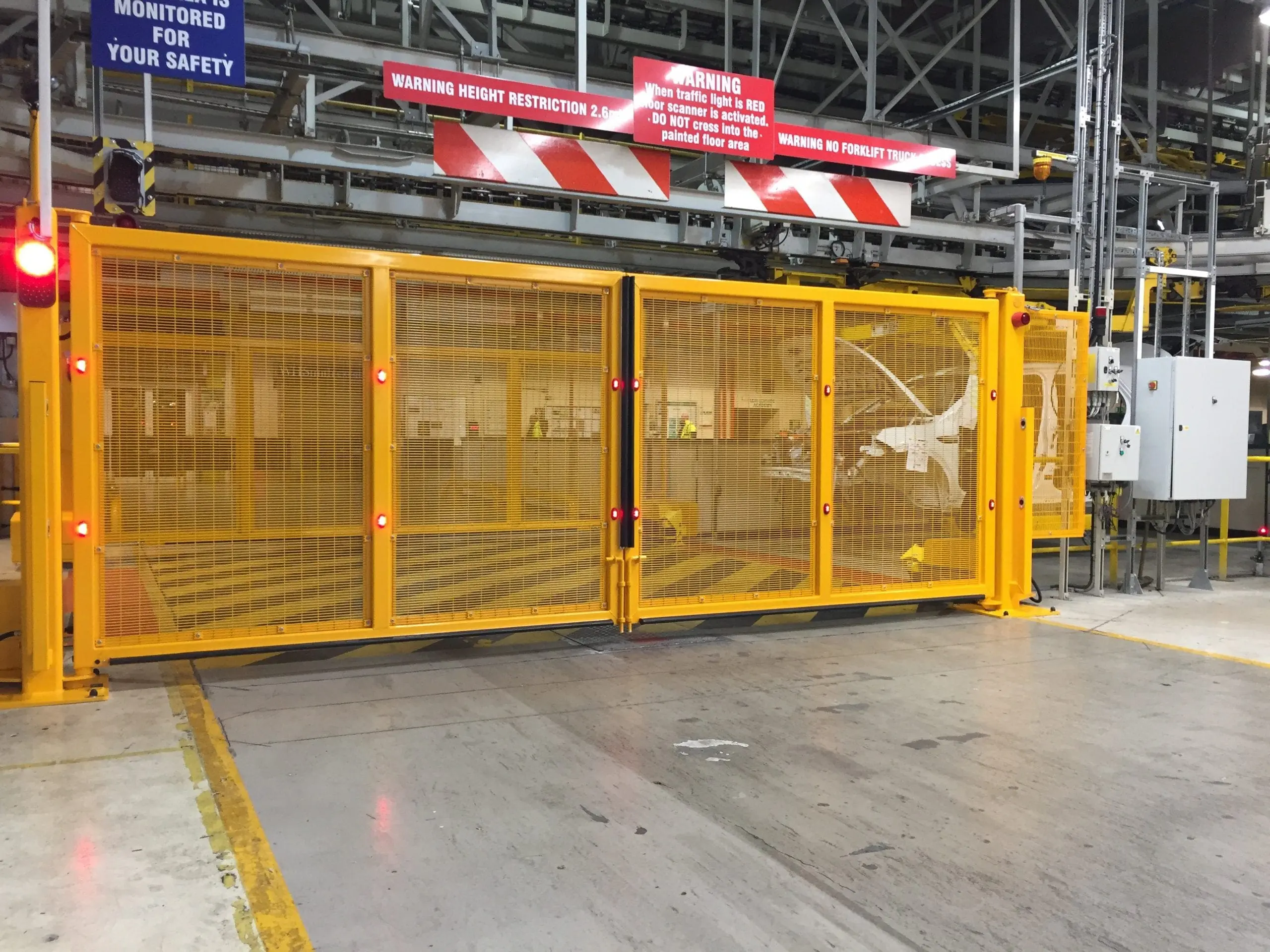

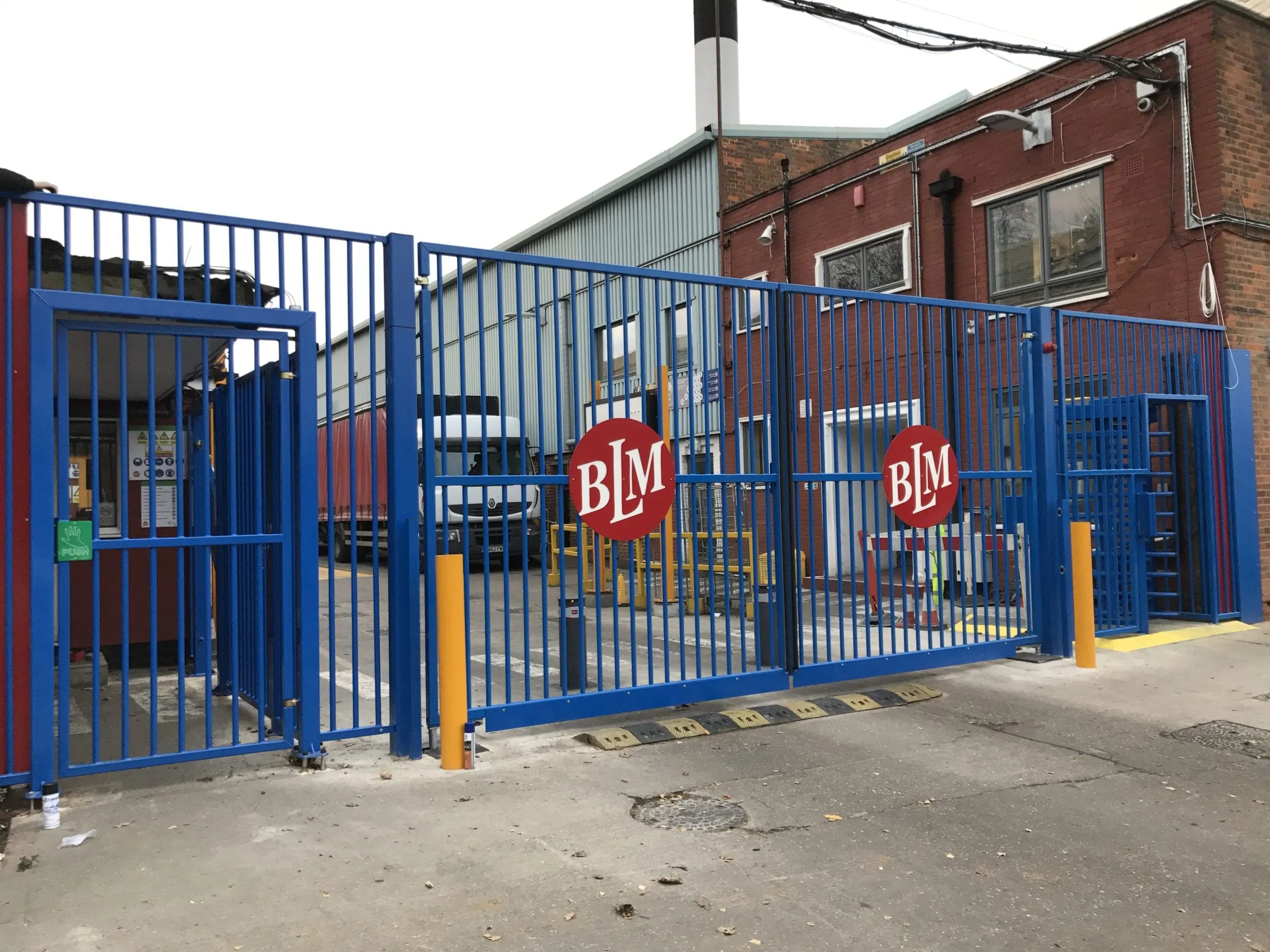

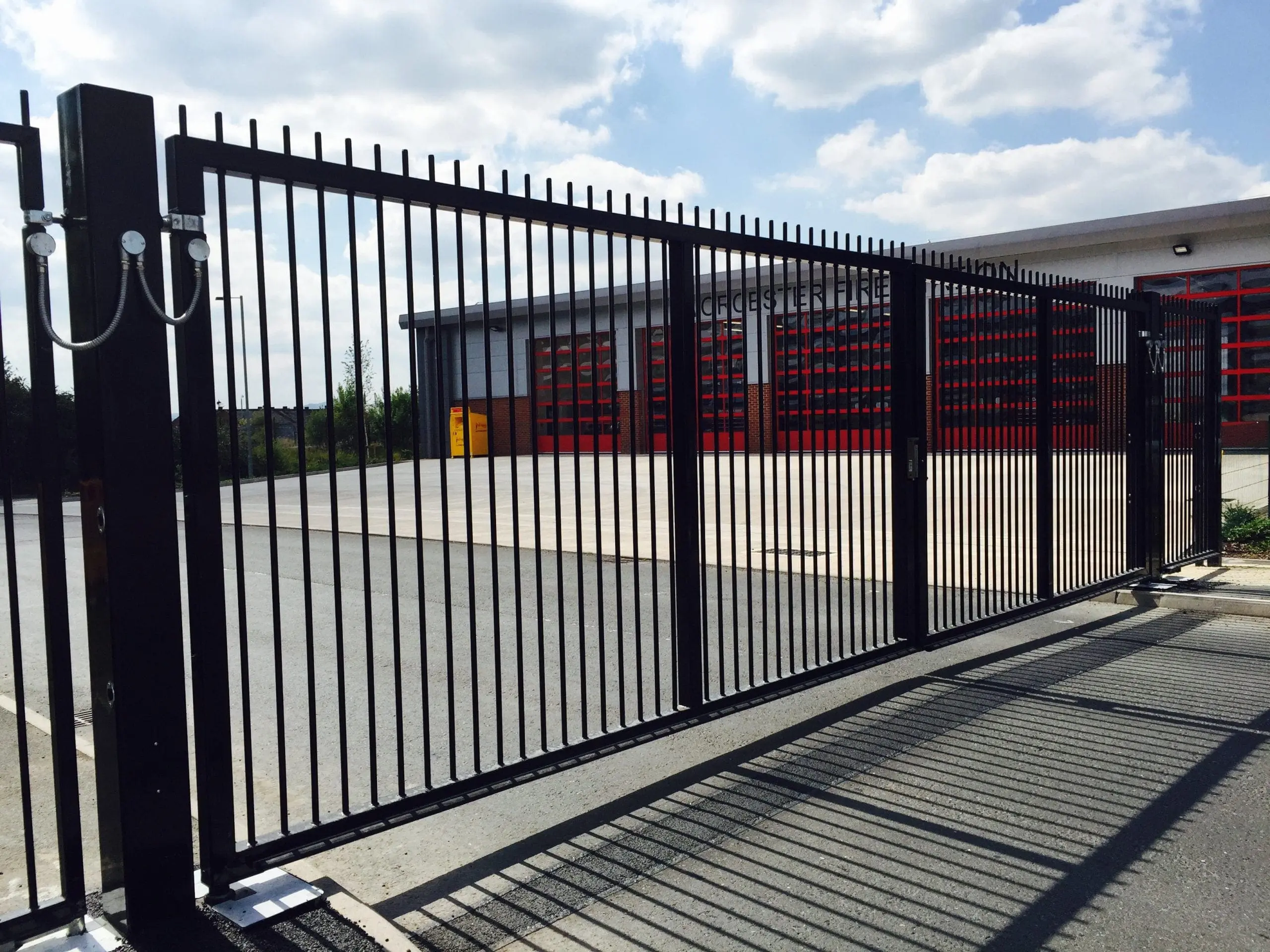

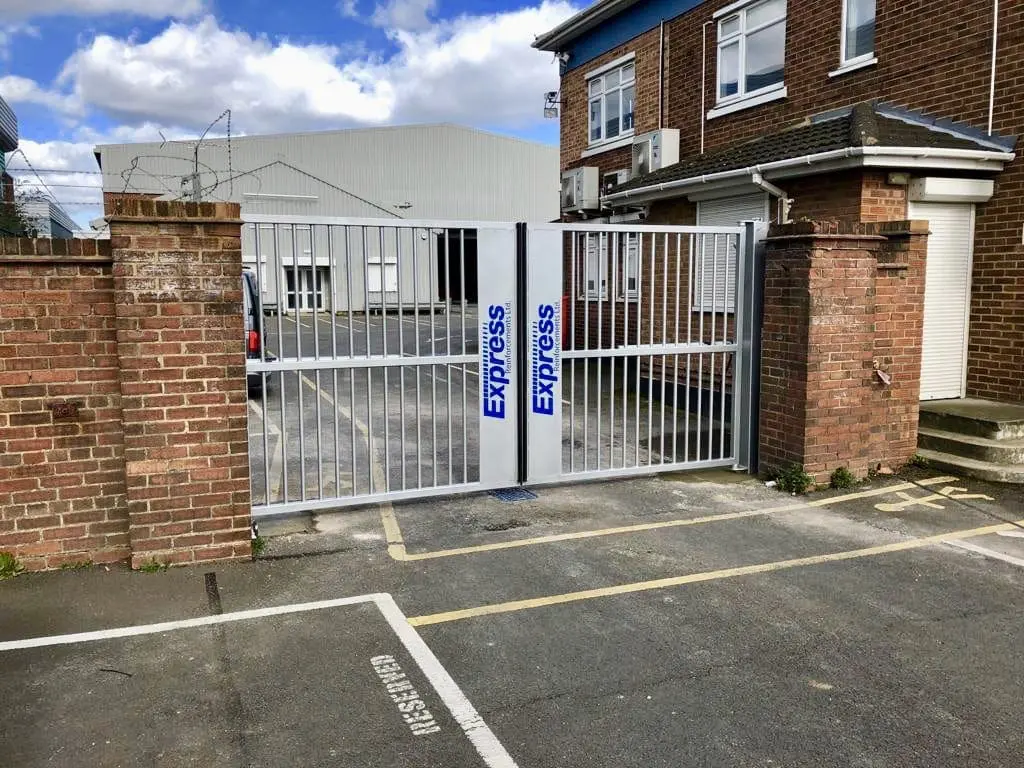

ULTIMation  produce a wide range of security swing gates. Produced from fully welded mild steel, gates are available in either single or double leaf versions, and in any size up to 14m clear width and 3m in height.

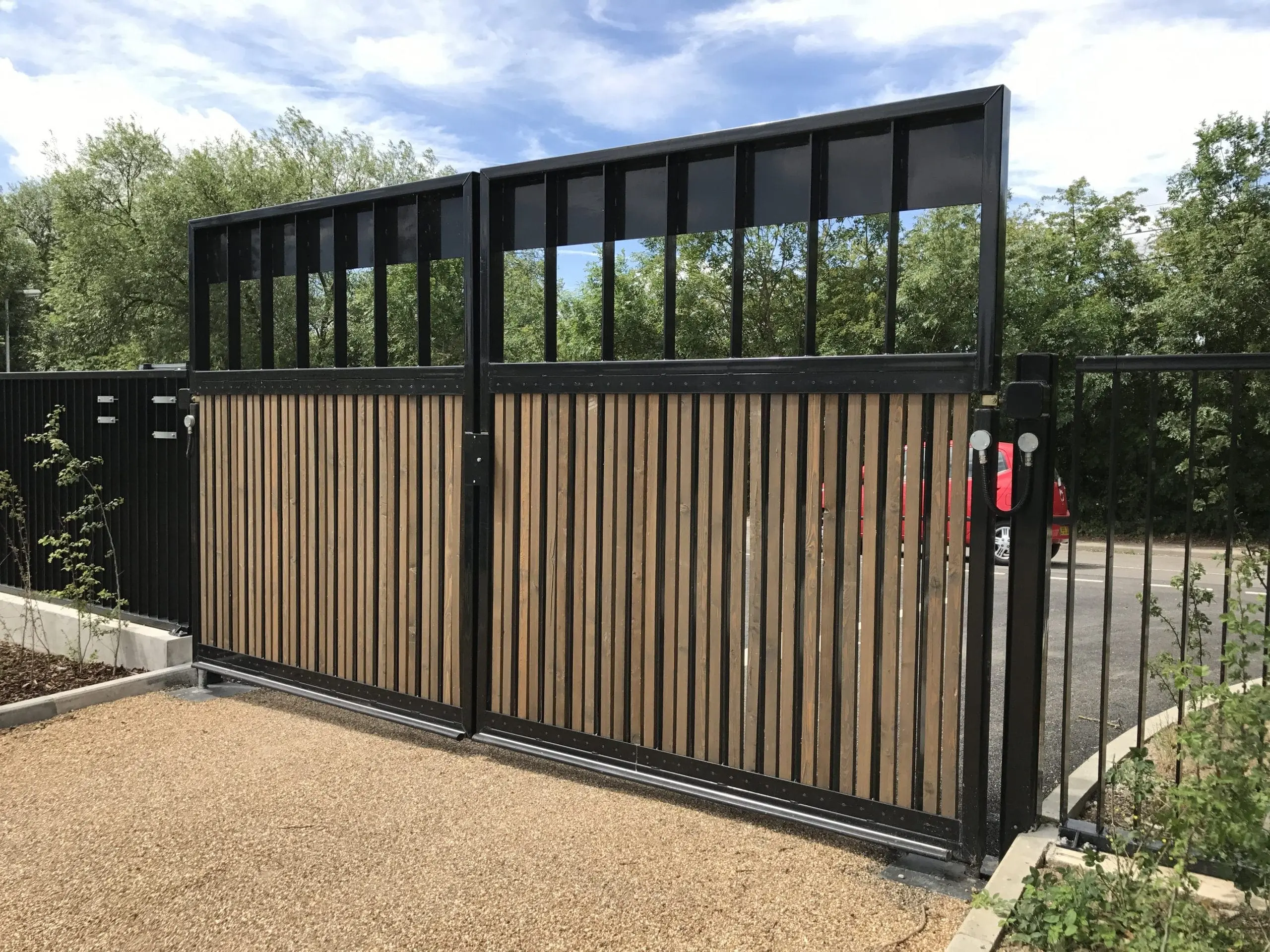

Our swing gates can be manufactured with a variety of infill options, from standard vertical bar, solid steel or timber, and decorative steel designs. We are able to design a gate to your exact requirements or match an existing fence or gate type.

All our automatic gates are equipped with Category 3 safety edges and dual Photocells as standard to ensure compliance with all current safety legislation.

web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo
web4less-large-logo

Specification

Maximum Span:

14n (7m per leaf)

Maximum Height:

5.0m (Depending on span)

Opening / Closing Times:

6 to 20 seconds (adjustable)

Drive Choices:

D350v Underground drives for leaves up to 5.0m
D380HD Above ground drives for leaves up to 6m
Hyrdaulic rams for leaves up to 4.5m

Safety:

Cat 3 edges as standard with Dual Photocells and a flashing beacon / sounder.

Construction:

Up to 4.0m leaf – 80 x 80 Box section, up to 7.0m leaf – 100 x 100 Box section

Cycles:

100% Duty Cylce

Power Supply:

230VAC 50Hz 6 Amp

Posts:

From 120mm to 250mm box section, depending on gate leaf dimensions

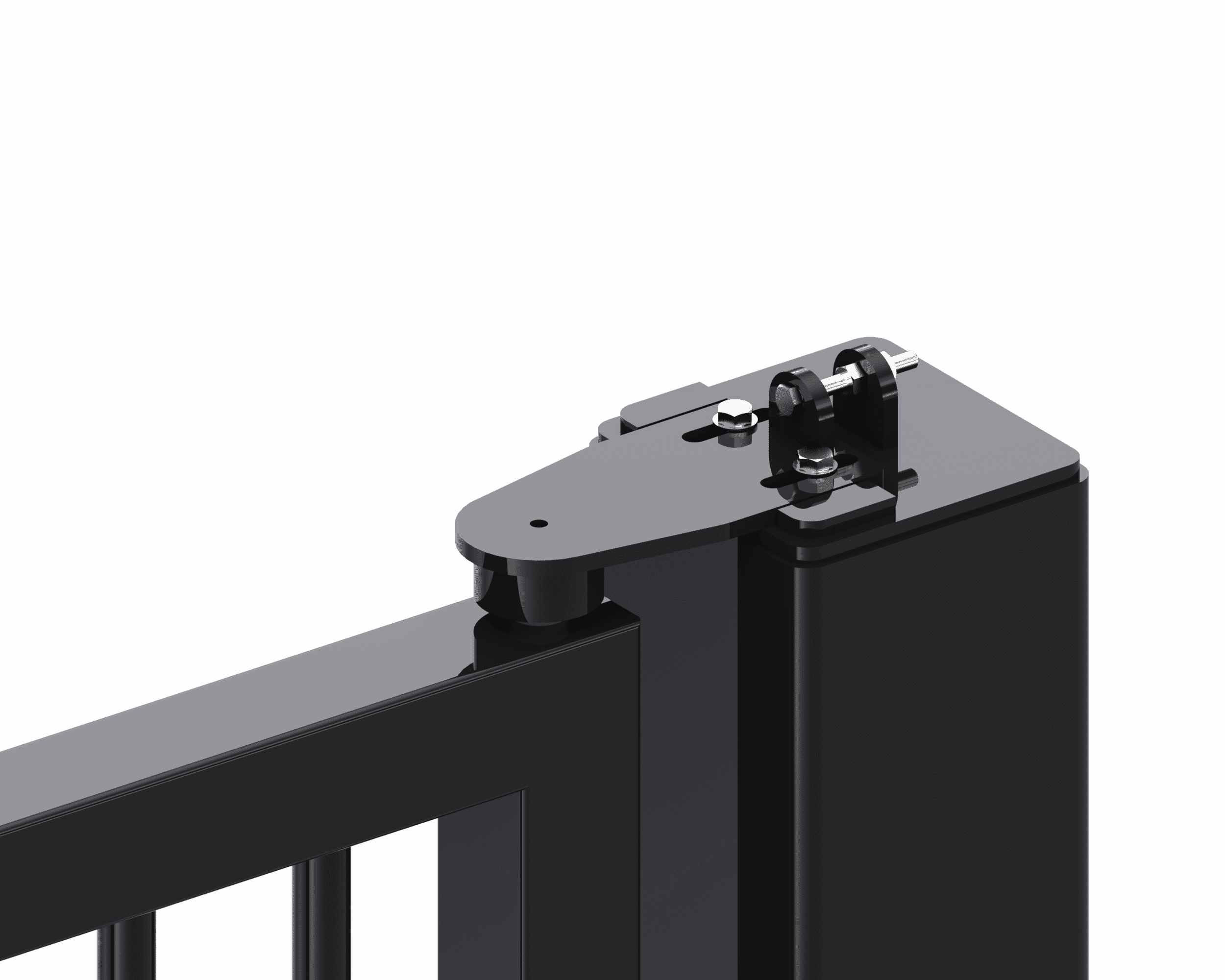

Heavy Duty Bearing Hinges

High load bearing equipped hinges are fitted which rotate on the pivot point to minimise closing up of the gate leaf to the post, and so enhancing security.

web4less-large-logo

Fixing Options

Gates can be supplied with dig-in or bolt down posts.

web4less-large-logo

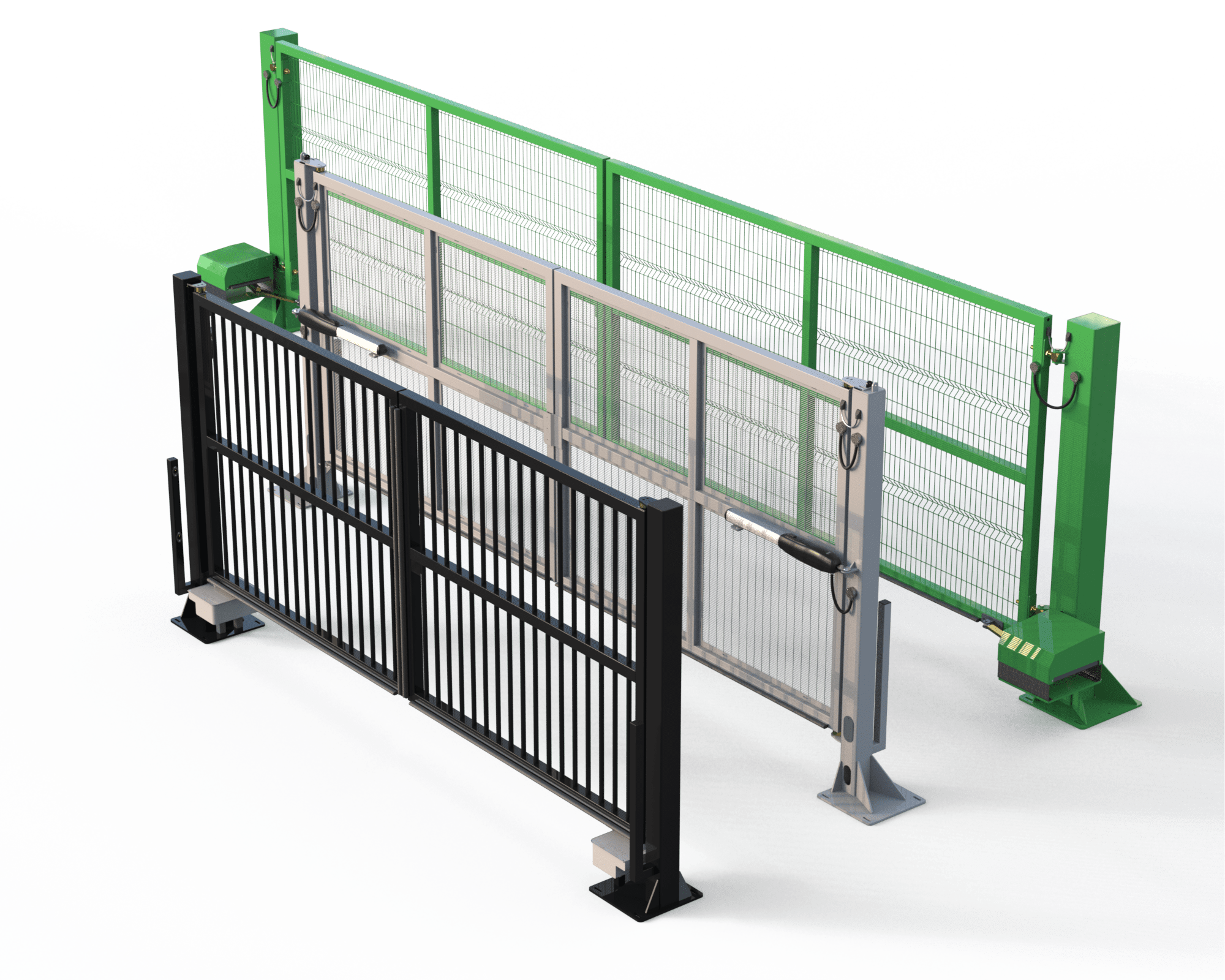

Automation Options

A range of drive options is available including hydraulic rams, underground drives and heavy duty above ground drive units.

web4less-large-logo

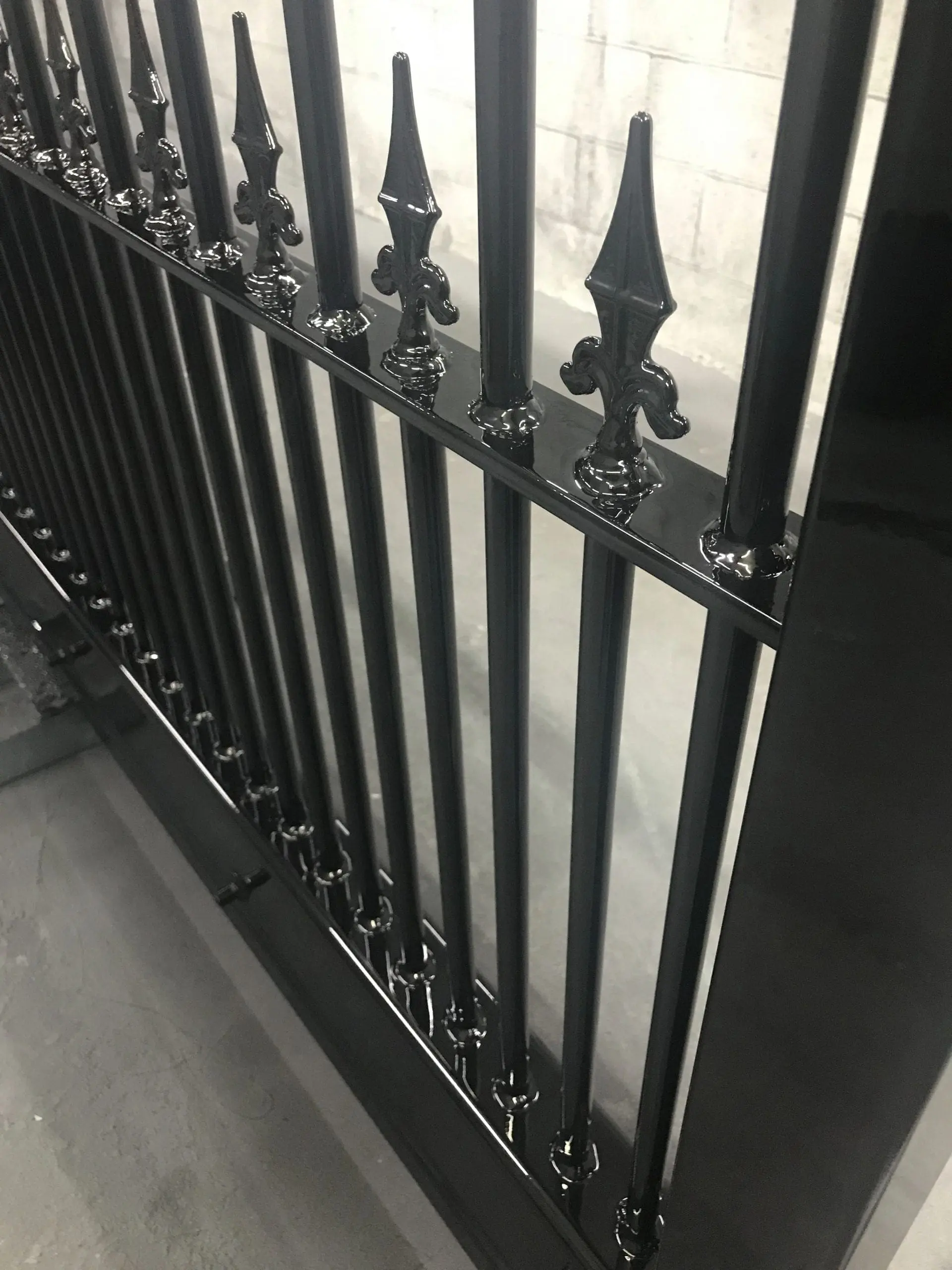

Finish

Swing gates are powder coated in any standard RAL colour at no additional charge.

web4less-large-logo

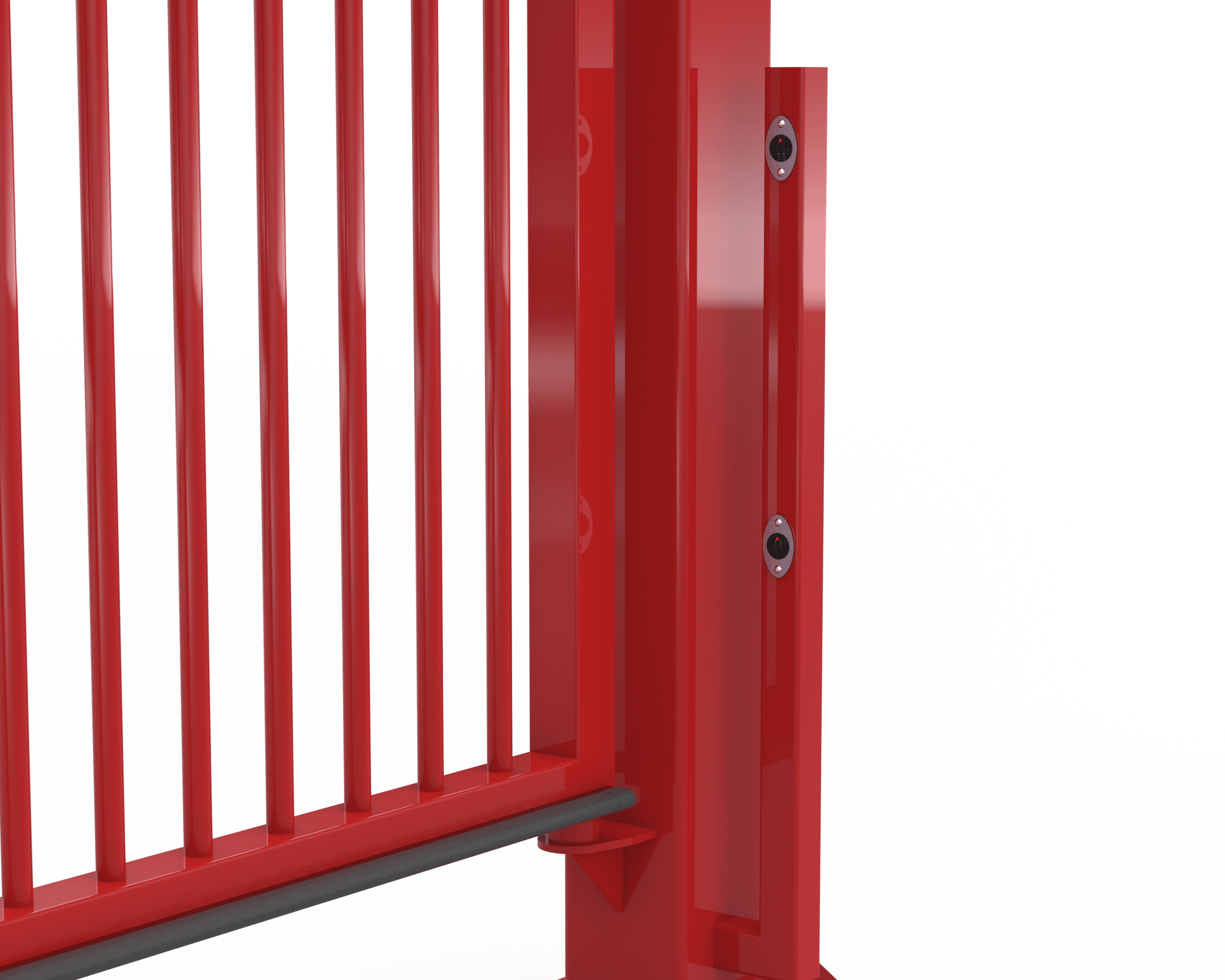

Twin Photocells

Safety first! All our powered gates are equipped with class leading safety systems as standard. For the D6000, this includes 6 x Cat. 3 safety edges, twin photocells at different heights, a cabinet mounted Emergency Stop button and a flashing beacon / sounder. Working with our unique control software this provides the quickest response to a safety event in the industry.

web4less-large-logo

Is This The Product For You?

All our products are custom designed and made in house. We can accommodate any specific requirements you may have. Please contact us now.
