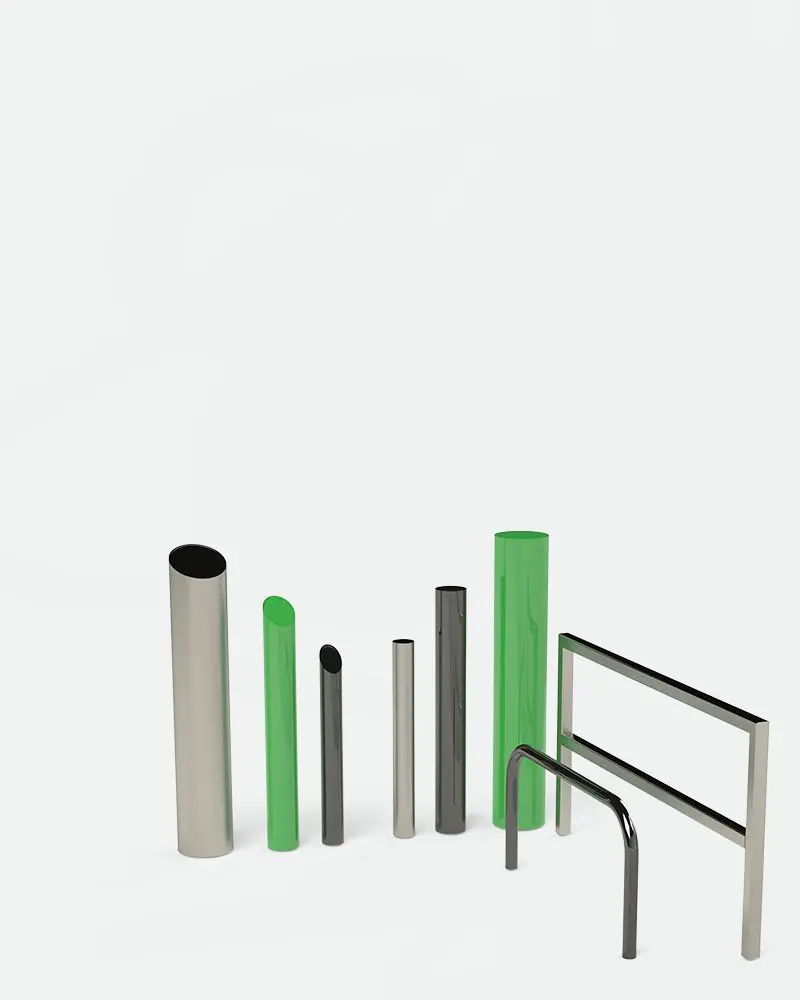

The Ultimation Range of Ancillary Products
Access Control Reader Posts
The D1500 manually operated barrier is an ideal choice to protect unattended or low traffic sites with minimal investment. As standard, the D1500 comes complete with preset counterweights, an adjustable tip support and anchor bolts.
The D3250 automatic barrier has been the most popular barrier in our range since its introduction due to its smart appearance and ease of set up. Fully 100% rated, our D3250 barrier is suited to the most demanding applications with the highest level of traffic flow.

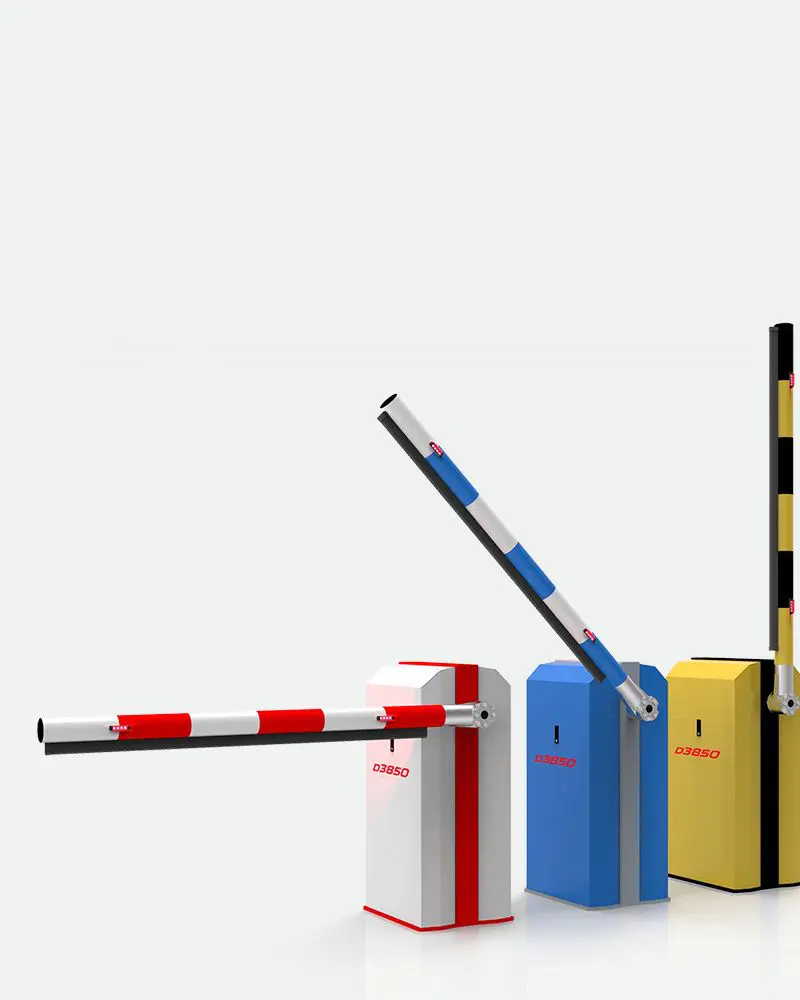

Our newly redesigned D3850 heavy duty barrier extends the capability of the D3250. The redesign utilises an enhanced motor and gearbox assembly which has eliminated the need for counterweights.
The use of ancillary with outher security measures can increase your site safety as well as enhance security levels. All Ultimation ancillary and gates are capable of being interlocked without any additional hardware upgrades.
CONTROL TECHNOLOGYUltimation have a policy of continual improvement which allows us to offer state of the art control and safety systems, and keeps us one step ahead of the competition. The PLC software was developed in house by Ultimation engineers to simplify installation and maintenance procedures. Our standard control system for barriers, gates and road blockers provides installers and end users with the ability to simply adjust operational parameters to suit their particular application.
If the system develops a fault, the screen glows red to alert the engineer, and the fault history can easily be displayed to allow instant diagnosis.
The Schneider programmer ensures that accessing parameters from the graphic display is both intuitive and user friendly. The user can simply scroll through the parameters and turn them on or off as desired. Speeds are set in a similar way to suit site requirements.
The system also has a built in time-clock function, allowing gates or barriers to be opened and closed to suit site requirements such as shift changes or holidays.
At the heart of every Ultimation design is the overriding concern for the safety of the end user and members of the public. As a bare minimum, Ultimation products are all supplied with safety systems which comply with current safety guidelines, and it is company policy to continually evolve systems which place us ahead of emerging legislation and guidelines. This allows us to offer products which are amongst the safest in the world. The requirements of the Machinery Directive are paramount, and we constantly monitor legislation for changes that may impact our product range. We also take advice from Gatesafe, the DHF and other trade bodies who specialise in safety matters.
Click images to enlarge
D210 Reader Posts
In addition to standard readers, we can supply a token acceptor unit with electro-mechanical token/coin mechanism, a coin collection tray and lockable steel door.
Where standard reader posts of heights do not suit your needs, we can manufacture posts to suit your design.
READER HEAD OPTIONS
Type 1: 300mm high by 200mm wide by 175mm deep
Type 2: 300mm high by 300mm wide by 175mm deep
Type 3: 400mm high by 350mm wide by 175mm deep
CONSTRUCTION: Post, 80mm x 80mm x 3mm. Head, 3mm plate, Base Plate, 5mm plate
HEAD SIZE: 300mm x 200mm x 175mm
MOUNTING PLATE: 290mmx190mm
DUAL HEIGHT: 2500mm
D500 CCTV Towers
The de-mountable winch provides easy access for mounting and maintaining cameras.
Standard flat plate mountings are provided with the ability to fit custom mountings for any desired camera configuration
All towers are manufactured with a fully welded and braced flange to allow simple bolting down to a suitable concrete foundation. Where required, we are also able to manufacture dig-in root towers
CONSTRUCTION: Base Upstand, 100mm x 100mm x 5mm, Upper column, 80mm x 80mm x 3mm
MOUNTING PLATE:480mm x480mm x 15mm
STANDARD HEIGHTS:Fixed Tower: 2m, Folding Tower: 3m, 4m, 5m, 6m
CONSTRUCTION: Fully welded mild steel or 316 grade stainless steel
DIAMETER: Mild steel versions: Round section at 139mm, 168mm or 220mm. Square section at 140 x 140mm, 180 x 180mm and 200 x 200mm
DIAMETER: Stainless steel versions: Round section at 168mm diameter and square section at 160 x 150mm
HEIGHT ABOVE GROUND: 500mm, 750mm and 1000mm
DESIGN: Flat welded top or optional 45° slant top
FINISH: Mild Steel: Polyester powder coated in yellow as standard. Stainless steel: Brushed finish.
CONSTRUCTION: LEDs held within fully potted plastic casing
DIMENSIONS: Single Light: 100mm diameter array with 24 LEDs. Plastic enclosure: 140mm wide by 145mm high by 34 to 55mm deep. Dual Lights: 2 x 100mm diameter arrays with 40 LEDs . Plastic enclosure: 140mm wide by 279mm high by 34 to 55mm deep.
POWER SUPPLY: 24V DC
RECOMMENDED MINIMUM VIEWING DISTANCE: +5m
OPERATING TEMPERATURE: -15°C to +40°C
IP RATING: Front assembly – IP68, Rear Cavity – IP40
